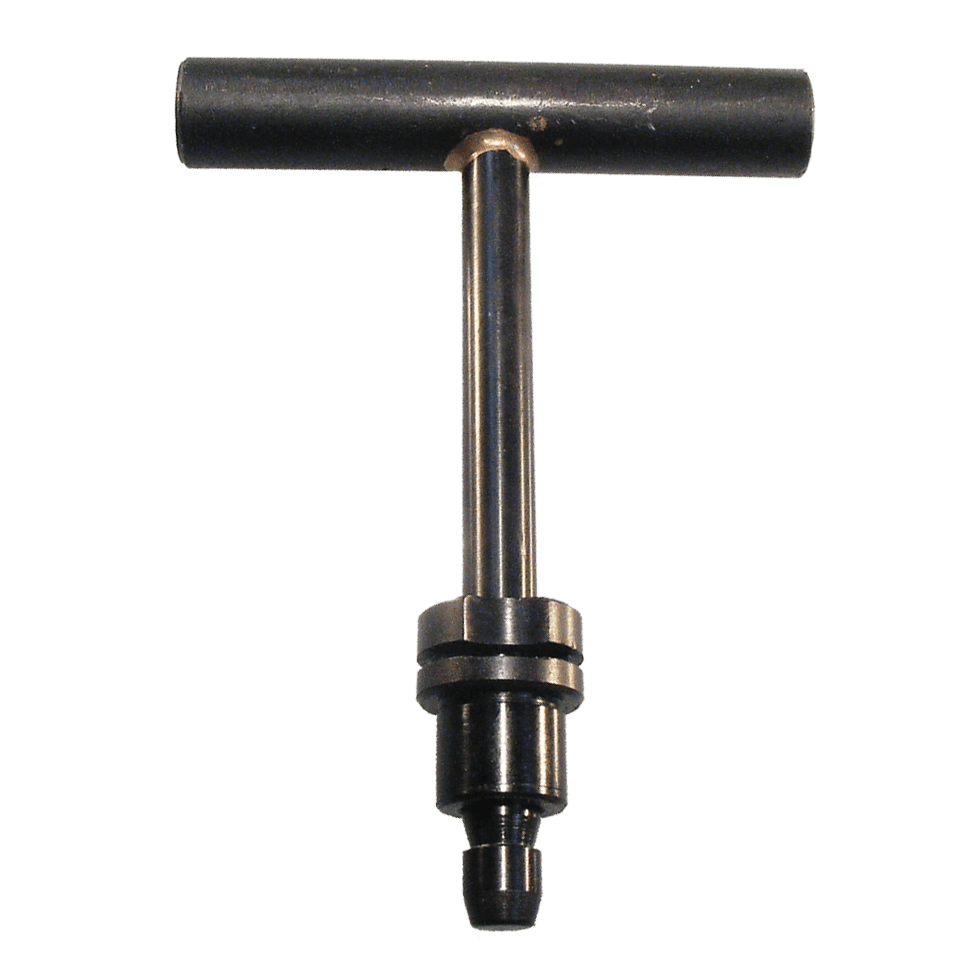

CL-5-LTP-B-2 CL-5-LTP-B-2 • Locking T Pins

Alignment Pins

Product Information

Application Information

Material

Place Order

Save to My Project

What is this?

Pricing & Availability

This part number seems to be incorrect. Please double-check the part number you entered, update accordingly and then click “Add to Pricing & Availability” to continue. If the part number you entered appears to be correct, yet you are still seeing an "Invalid status", please call Carr Lane Manufacturing Customer Service at 314-647-6200 for further assistance.

Status	Part Number	Quantity	Description	Unit Price	Line Item Total
			LOCKING T PIN ASSEMBLY	$29.14	$29.14

*All prices are in US dollars. Inventory levels are subject to change.

Add to Pricing & Availability

Status Legend

Available This part is currently available for order.
Available Assembly This part is available, but some assembly is required.
Made to Order This part is available only as requested and will be made to order.
Partially Available This part is available, however, not in the full quantity that you requested.
Back Ordered This part is not available and is currently on back order.
!

Invalid The part number entered is invalid.

Part Specifications

Part Number	A DIA NOMINAL	A DIA ACTUAL +0/-.0005	B PIN LENGTH	P BUSHING LENGTH UNDER HEAD	P	C DIA	D	L	N DIA NOMINAL	N DIA ACTUAL +0/-.0003	R +.03/-.01	S	L PIN (INCLUDED)	BUSHING (INCLUDED)	LOCKSCREW (INCLUDED)
CL-5-LTP-B-2	1/4	.2490	3	Long	.50	3/8	2-1/2	2-1/2	13/32	.4078	.62	13/16	CL-5-LTP	CL-4A-LPB	LS-1
