Cable Assemblies – Type 11 (Tab Left End / Tab Right End)

Ball Lock Pins & Quick-Release Pins

Save to My Project

What is this?

Product Information

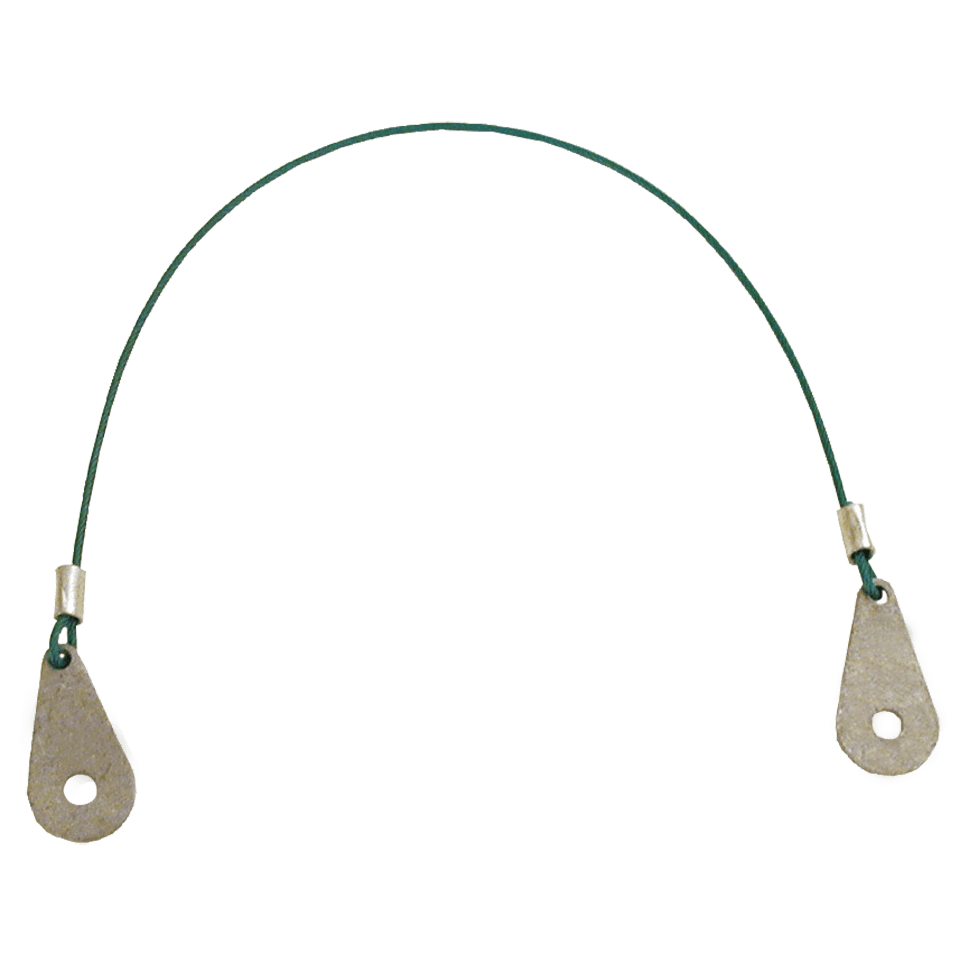

Workholding Cable Assemblies – Type 11 (Tab Left End / Tab Right End)

Cable Assemblies are ideal for attaching removable alignment pins and other tooling components. High-strength stranded wire cable with a green nylon coating. Type 11 assemblies (shown here) have a Cable Tab at the left end and a Cable Tab at the right end. This type of assembly is available in #1, #2, and #3 cable diameters, in steel and stainless steel. Made in USA.

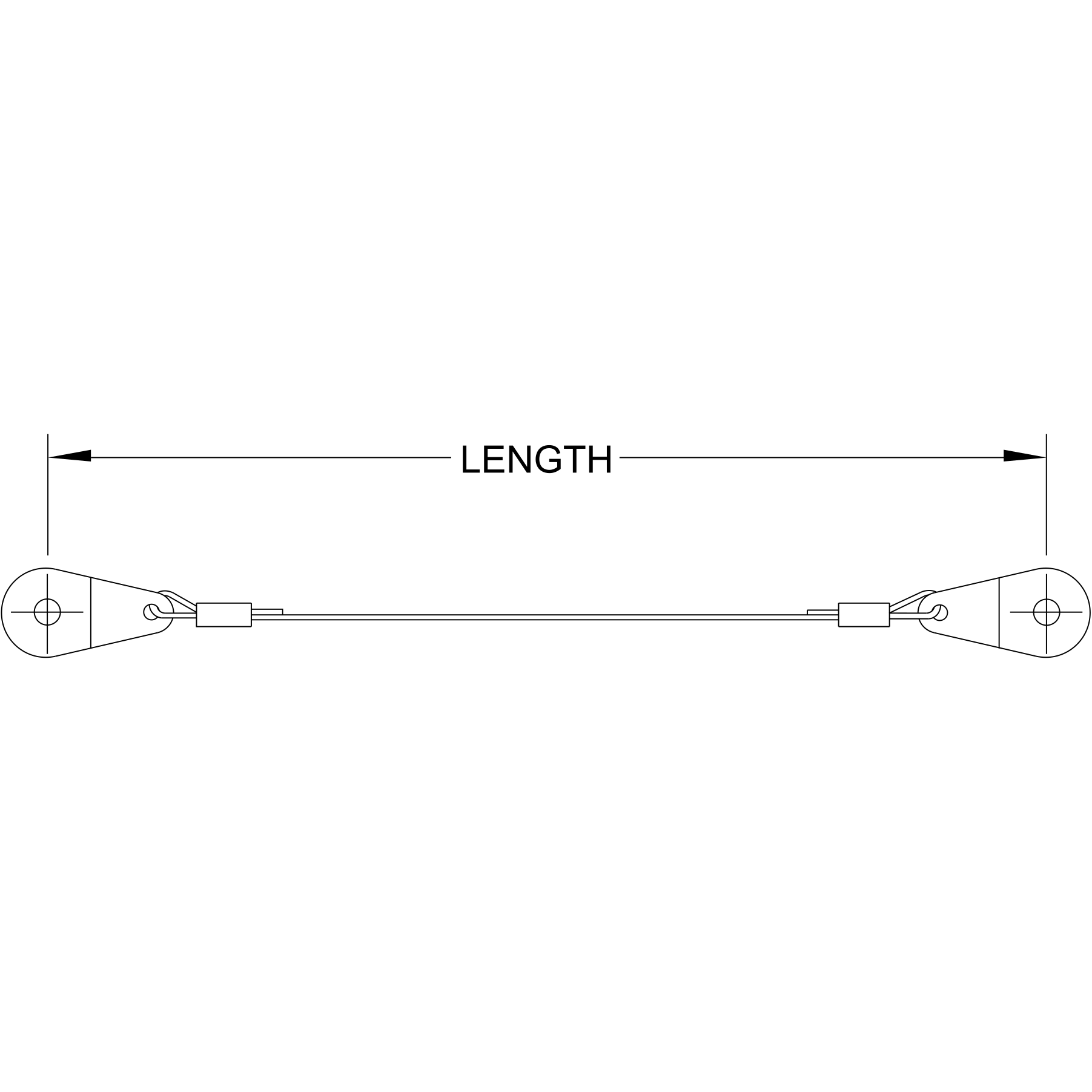

Specify cable-assembly length in inches to one decimal place, from 3.0" minimum to 144.9" maximum. Finished-assembly length tolerance is +/-1/4" up to 24" long. Example part number for a Type 11 steel cable assembly using size #2 cable, 12" long:

CL-112-KA-12.0-x -x

To complete the part number, also specify left and right Cable Tab sizes, e.g. .194TABA for Cable Tab CL-.194-TAB-A (.194" hole for #10 screw, aluminum) and .281TABS for Cable Tab CL-.281-TAB-S (.281" hole for 1/4" screw, stainless steel).

CL-112-KA-12.0-.194TABA-.281TABS

Use the Part Configurator link at the top of this page to order any KA or SKA cable assembly.

View in Catalog Page
Contact Customer Service
Contact Customer Service

Optional Uncrimped End

To order Cable Assemblies with an uncrimped ferrule (for installation), add a suffix to the part number:

-L For uncrimped left end

-R For uncrimped right end

-LR For both ends uncrimped

Safety Precautions

Do not use these Cable Assemblies for lifting or high-tension applications.

Material

Steel:

Cable > Galvanized steel stranded wire, nylon coated. Ferrules > Copper, electro tin plated. Cable Tabs (Aluminum) > 6061 aluminum alloy, clear anodized. Cable Tabs (Stainless) > 300-series stainless, passivated. DFARS and RoHS compliant.

Stainless Steel:

Cable > Stainless steel stranded wire, nylon coated. Ferrules > Copper, electro tin plated. Cable Tabs (Aluminum) > 6061 aluminum alloy, clear anodized. Cable Tabs (Stainless) > 300-series stainless, passivated. RoHS compliant.

Click here for detailed material and finish specifications.

Configure a Part

Part Configurator

Please set the quantity first before filling out the rest of the information. Click here for video instructions.

Quantity

Update Quantity

There is no CAD file available for this part currently. Please contact [email protected] for further assistance.
