Cable Assemblies – Type 2 (Loop Left End / Loop Right End)

Ball Lock Pins & Quick-Release Pins

Save to My Project

What is this?

Product Information

Workholding Cable Assemblies – Type 2 (Loop Left End / Loop Right End)

Cable Assemblies are ideal for attaching removable alignment pins and other tooling components. High-strength stranded wire cable with a green nylon coating. Type 2 assemblies (shown here) have a loop at the left end and a loop at the right end. This type of assembly is available in all four standard cable diameters, in steel and stainless steel. Made in USA.

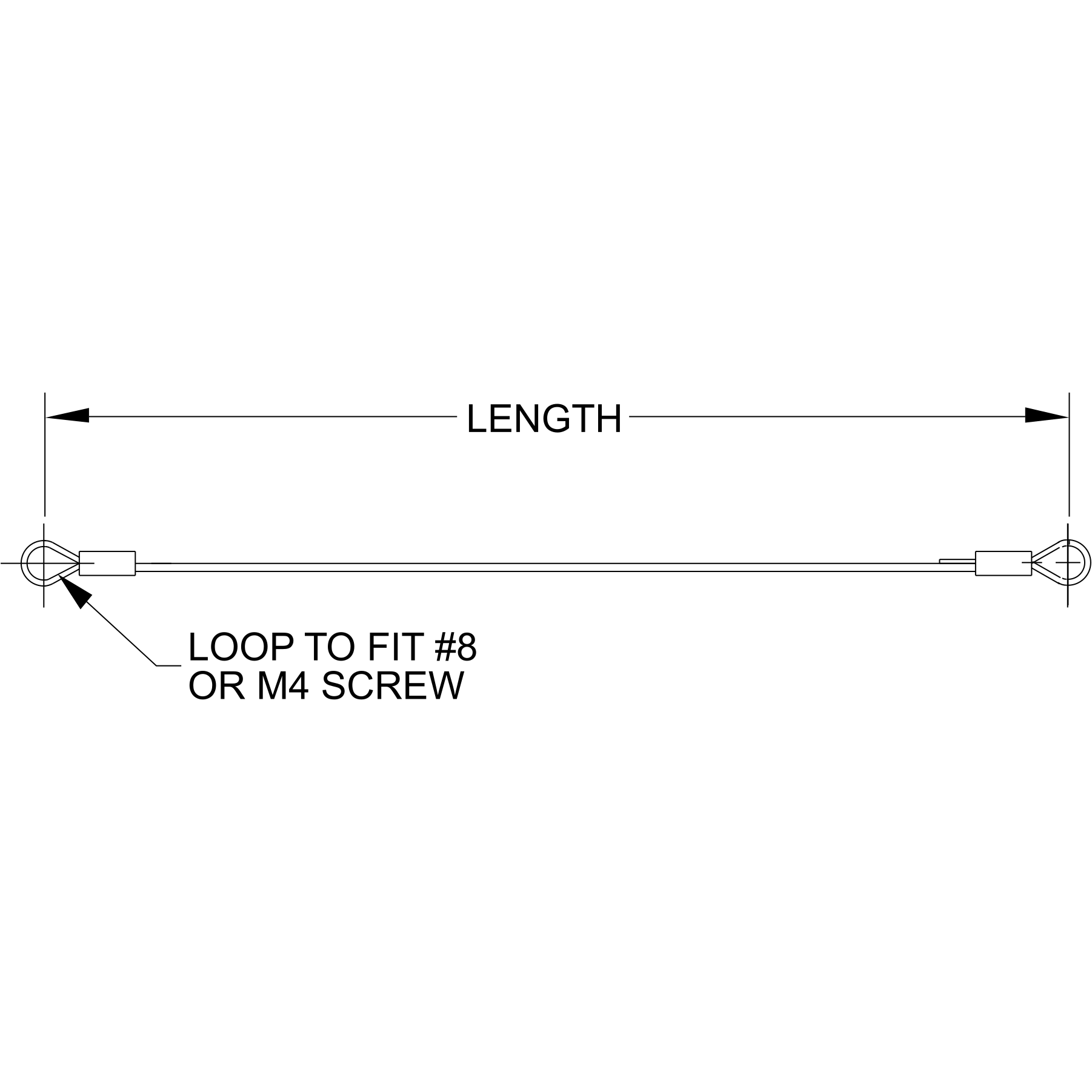

Specify cable-assembly length in inches to one decimal place, from 3.0" minimum to 144.9" maximum. Finished-assembly length tolerance is +/-1/4" up to 24" long. Example part number for a Type 2 steel cable assembly using size #2 cable, 12" long:

CL-22-KA-12.0

Use the Part Configurator link at the top of this page to order any KA or SKA cable assembly.

View in Catalog Page
Contact Customer Service
Contact Customer Service

Optional Uncrimped End

To order Cable Assemblies with an uncrimped ferrule (for installation), add a suffix to the part number:

-L For uncrimped left end

-R For uncrimped right end

-LR For both ends uncrimped

Safety Precautions

Do not use these Cable Assemblies for lifting or high-tension applications.

Material

Steel:

Cable > Galvanized steel stranded wire, nylon coated. Ferrules > Copper, electro tin plated. DFARS and RoHS compliant.

Stainless Steel:

Cable > Stainless steel stranded wire, nylon coated. Ferrules > Copper, electro tin plated. RoHS compliant.

Click here for detailed material and finish specifications.
