Up-Thrust Clamps

Clamps & Accessories,Modular Fixturing

Save to My Project

What is this?

Product Information

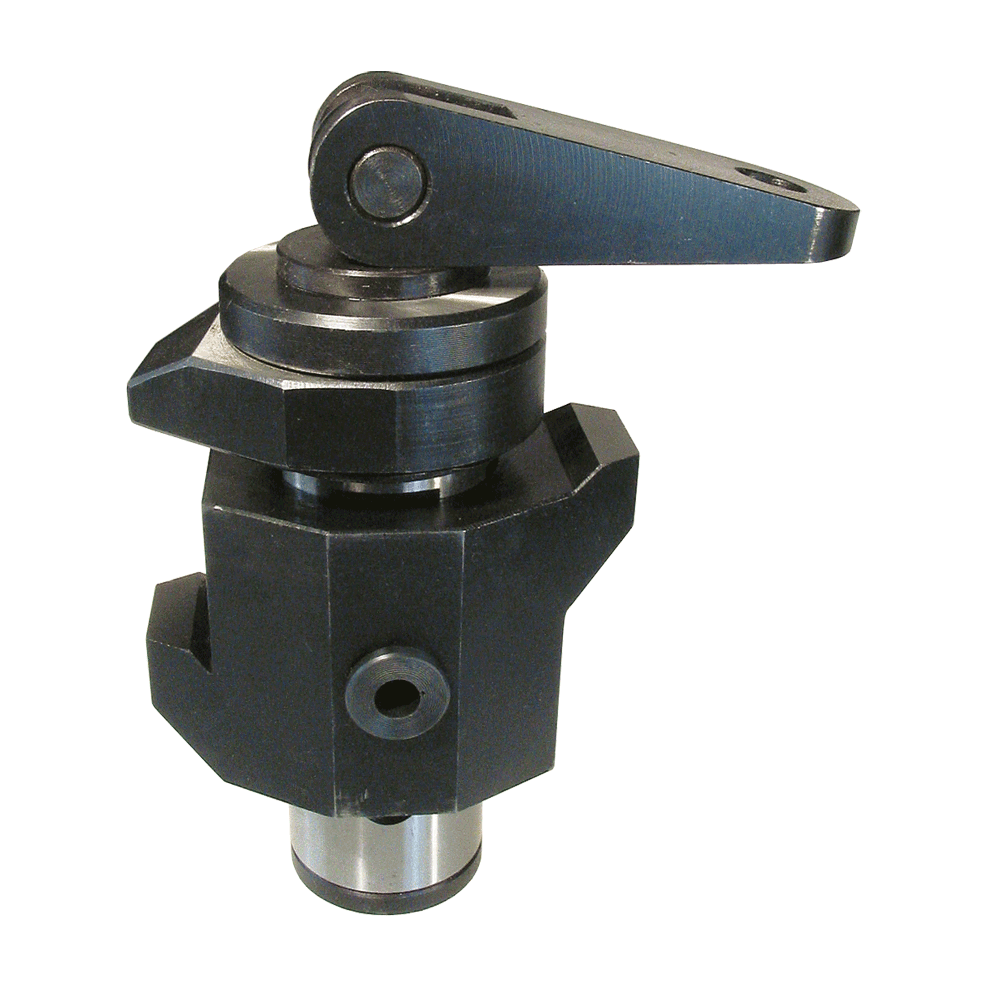

Combination clamp and locator with a unique upward clamping action. Up-Thrust Clamps locate off of the part's top surface and clamp upward from below. Pushing down on the cam handle pulls the lower jaw upward. This clamps the workpiece against the stationary upper jaw, whose bottom surface is ground for precise location. Available in one size, with a 1/2-13 mounting thread.

View in Catalog Page
Contact Customer Service
Contact Customer Service

Application Information

Up-thrust Clamps locate off of the part's top surface and clamp upward from below.

Adjustment

The lower jaw has two clamping surfaces 180° apart, one for thinner parts, the other for thicker parts. After selecting the appropriate clamping surface, move the lower jaw up or down into final position by rotating the cam handle.

Material

MATERIAL	HEAT TREAT	FINISH	DFARS	RoHS
Steel	Wear surface hardens	Black Oxide	✔	✔

Click here for detailed material and finish specifications.

California residents click here for Prop 65 information.

Up-Thrust Clamps

QUANTITY	PART NO.	A THREAD	B CLAMPING RANGE	C CLAMPING RANGE	MAXIMUM CLAMPING FORCE (lbs)
	CL-MF40-5301	1/2-13	O to 1-3/8	1-3/8 to 2-3/4	2200

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product

Download CAD Model

Configuration

Format
