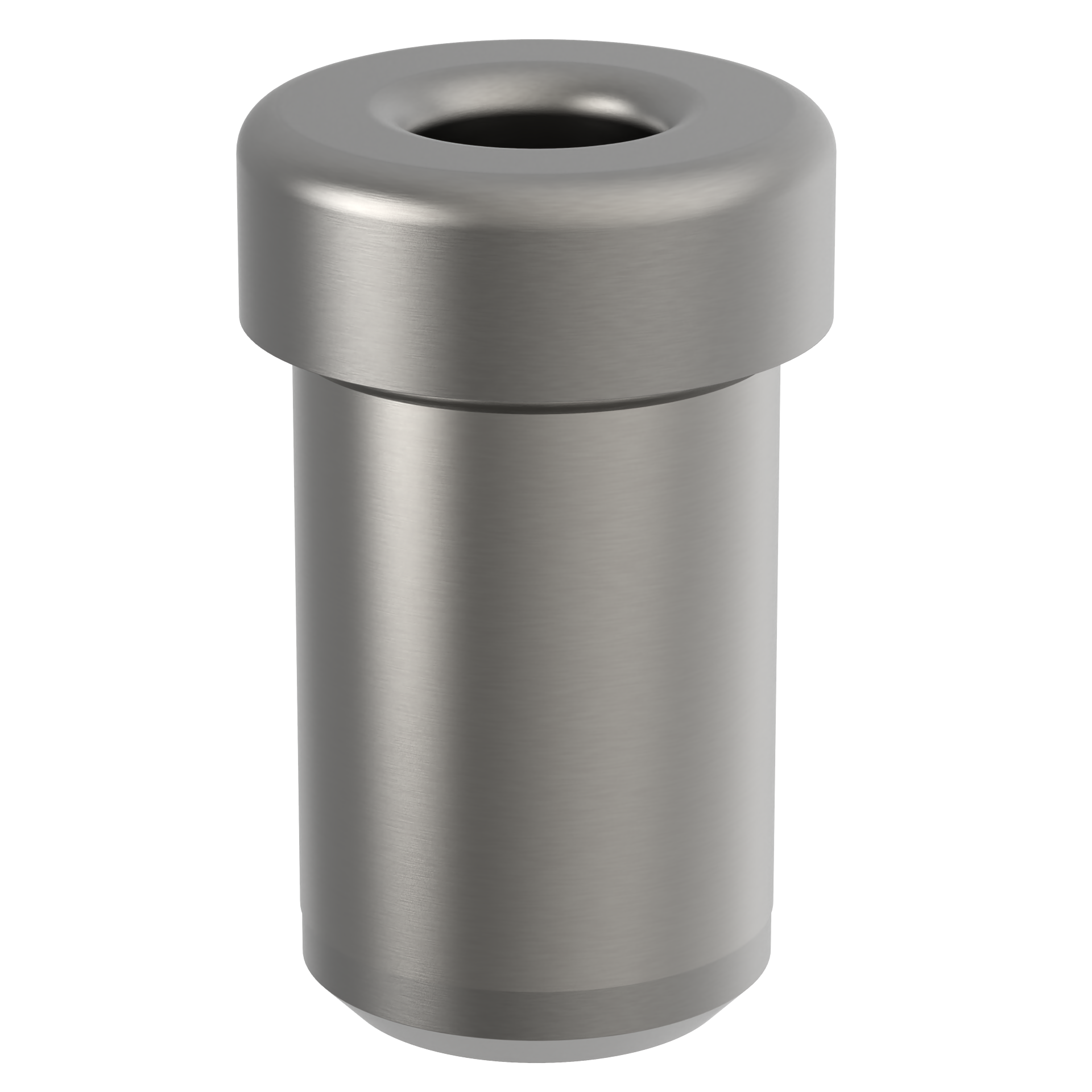

Quick-Ship Head Press-Fit Bushings – Metric (HM)

Drill Bushings

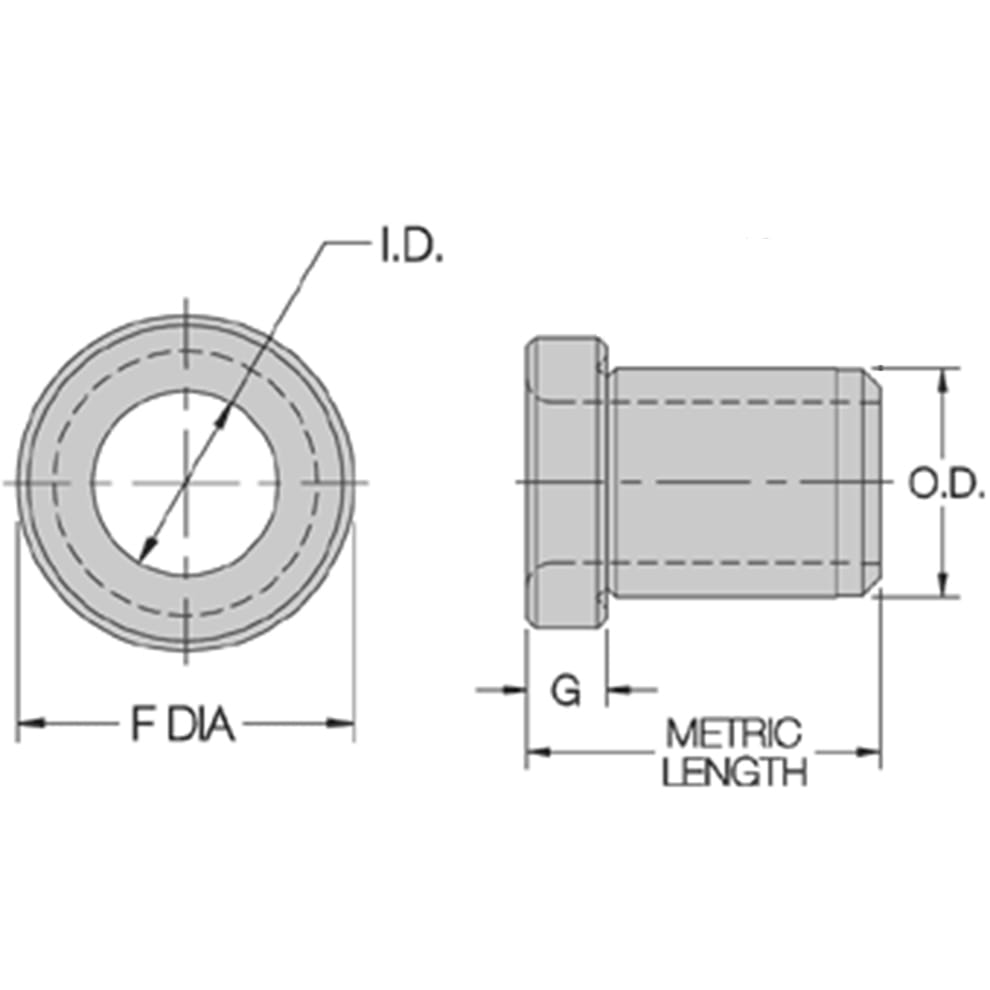

QUANTITY PART NO. ID (mm) OD (mm) LENGTH (mm) F DIA (mm) G (mm)
HM-12-16-8.00 8.00 12 16 15 3
HM-15-12-8.10 8.10 15 12 18 3
HM-15-12-10.00 10.00 15 12 18 3
HM-18-20-12.00 12.00 18 20 22 4
HM-22-16-15.00 15.00 22 16 26 4
HM-30-20-20.00 20.00 30 20 34 5
HM-30-20-22.00 22.00 30 20 34 5
HM-55-30-42.00 42.00 55 30 59 5
