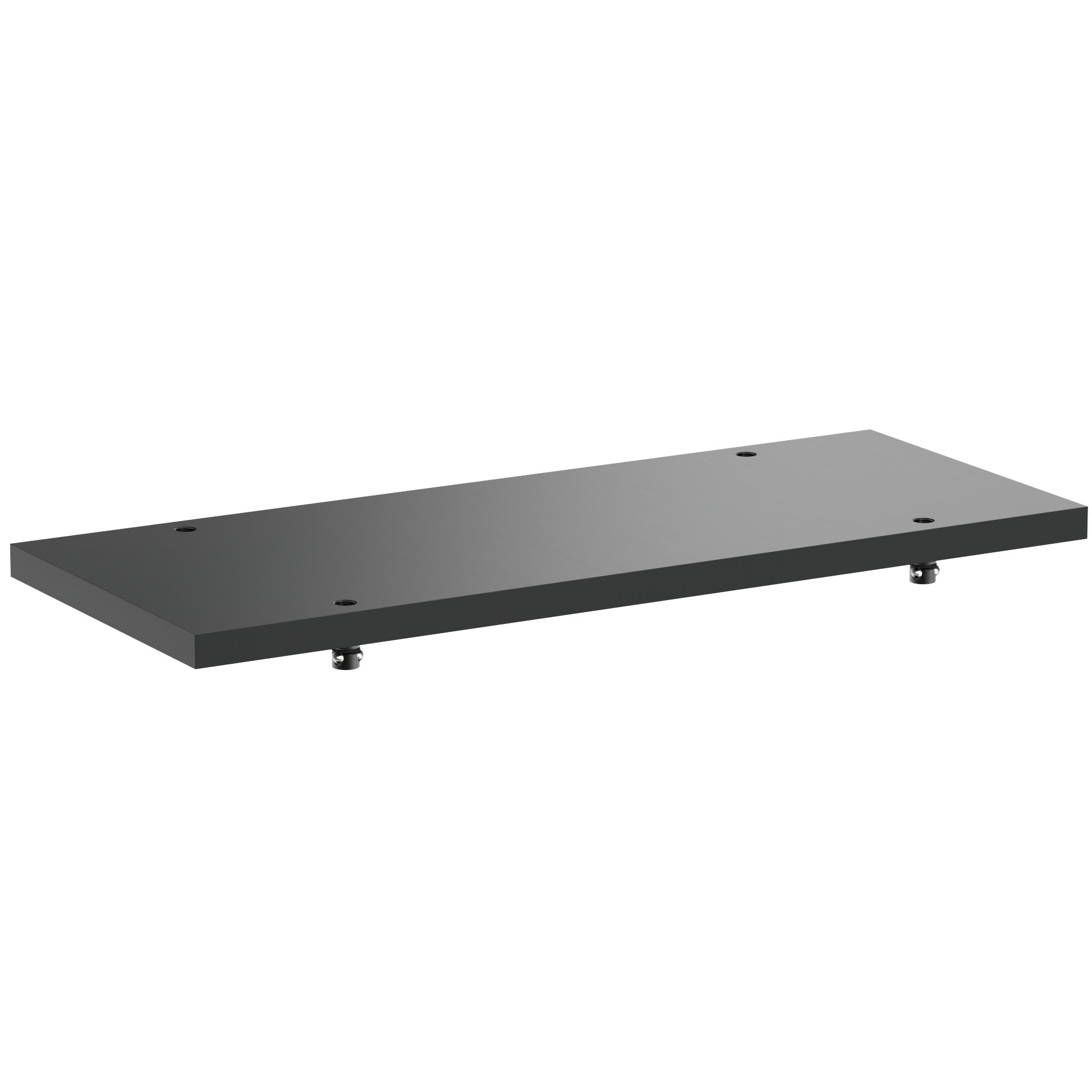

Quick-Change Trunnion Table Fixture Plates

Jig & Fixture

Save to My Project

What is this?

Product Information

Precision construction provides a flat, stable mounting surface suited for vises, fixtures, or other workholding. Ideal for aerospace, defense, medical, and precision industrial applications where repeatable setup and reduced cycle-to-cycle downtime are priorities. Quick-Change Trunnion Table Fixture Plates are precision-machined sub-plates designed to mount directly to the Single-Sided and Double-Sided Quick-Change Trunnion Table via Headless Carr Lock® Clamps, enabling rapid fixture exchange without loss of positional accuracy. Each plate seats and locates repeatably to ±0.001 inch (±0.025 mm), allowing operators to load and stage fixtures offline while machining continues on the table — reducing changeover time and maximizing spindle utilization across high-mix production schedules. Made in USA.

View in Catalog Page
Contact Customer Service
Contact Customer Service

Material

ITEM	MATERIAL	HEAT TREAT	FINISH
Plate	Aluminum	-	Black Anodize

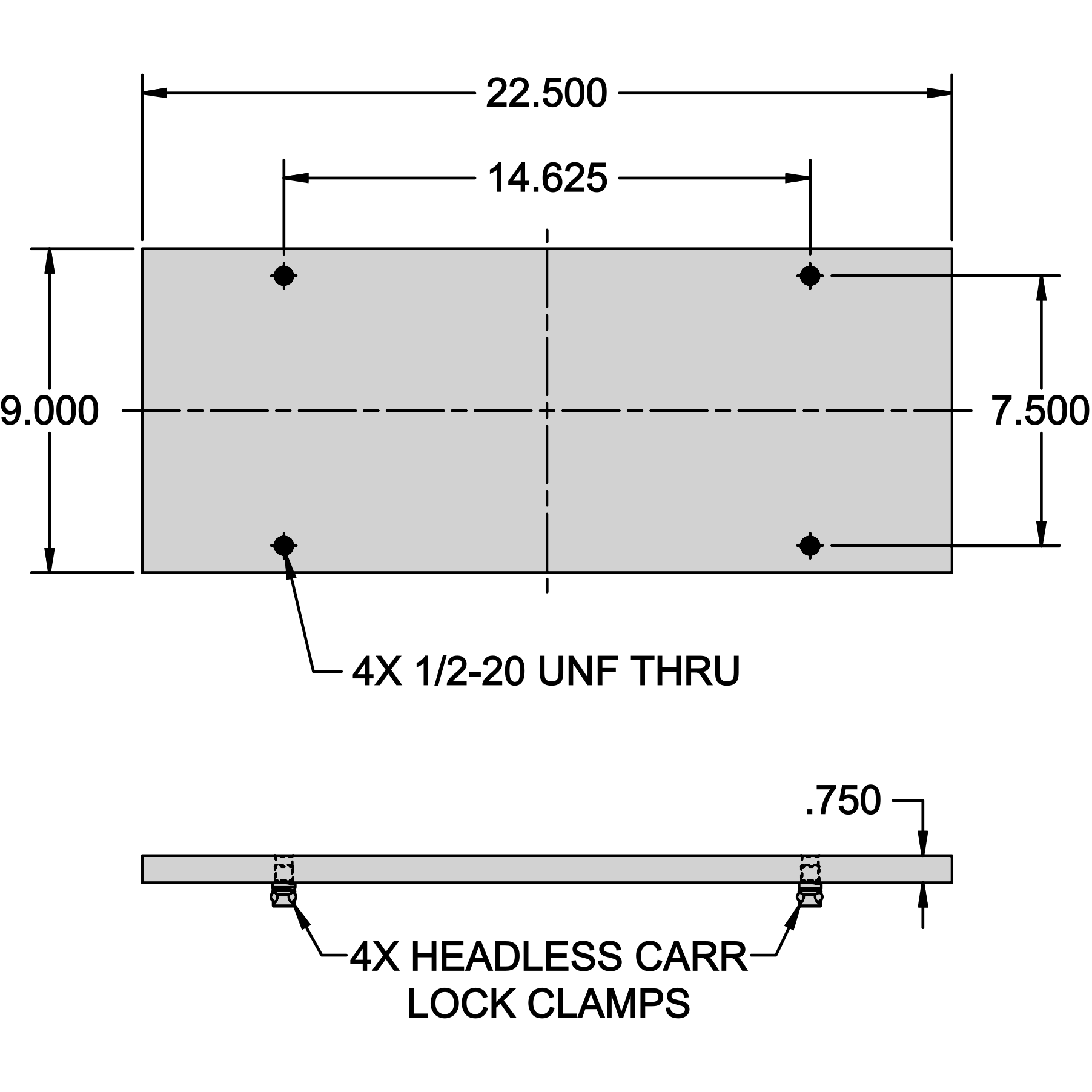

Quick-Change Trunnion Table Fixture Plates

QUANTITY	PART NO.	LENGTH	WIDTH	THICKNESS	CARR LOCK CLAMPS (INCLUDED)
	CL-923-TRTC-FP	22.500	9.000	.750	(1) CL-16-HCLC-1 (3) CL-16-HCLC-2
