Soft-Touch Bridge Handles

Machine Handles

Product Information

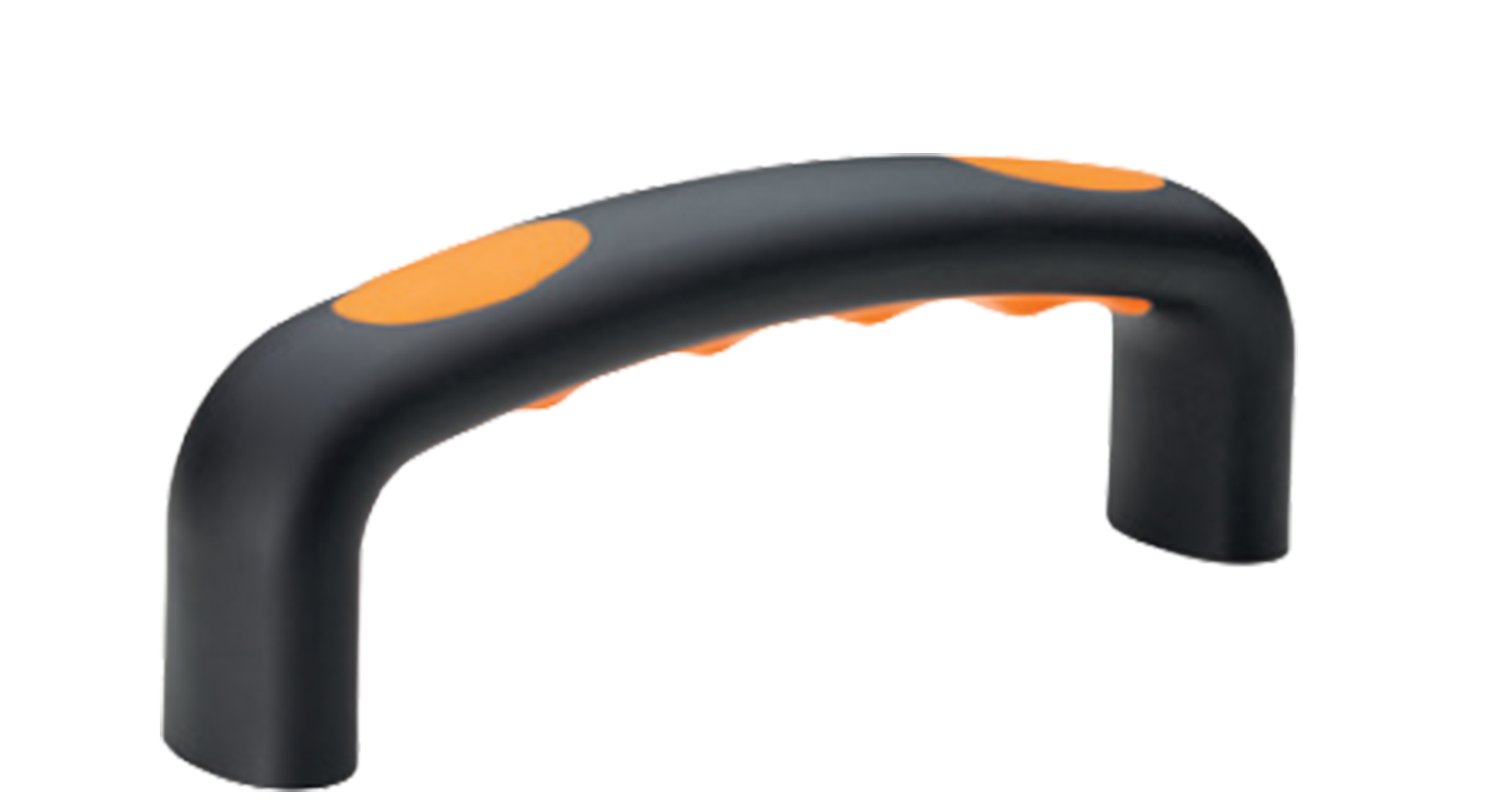

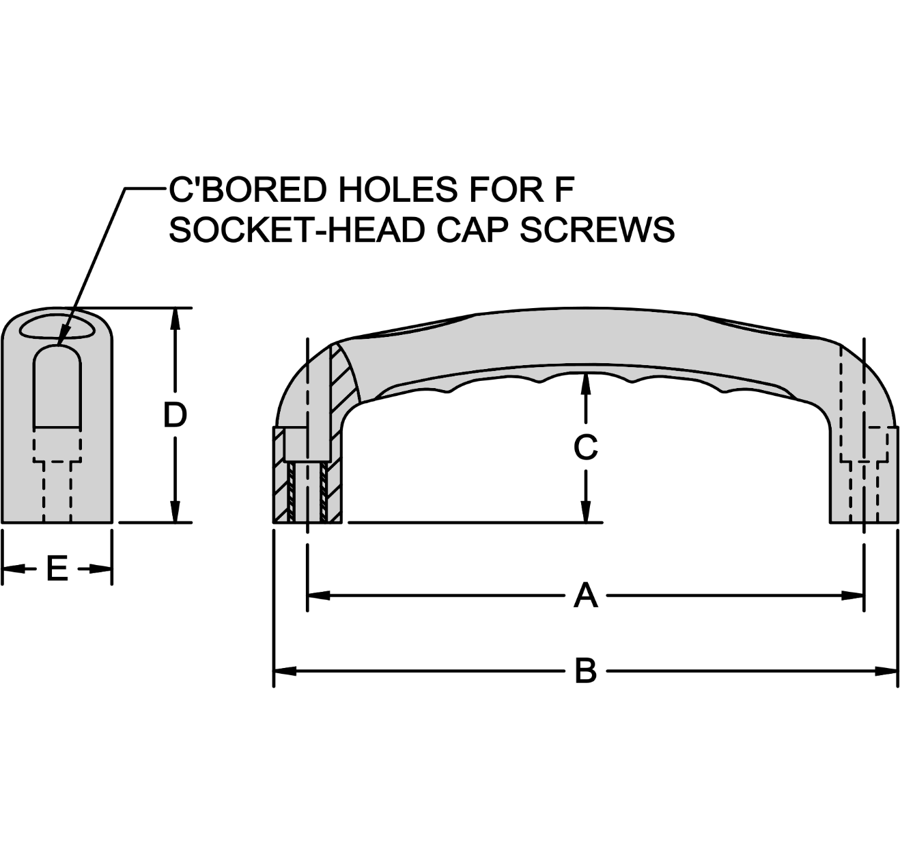

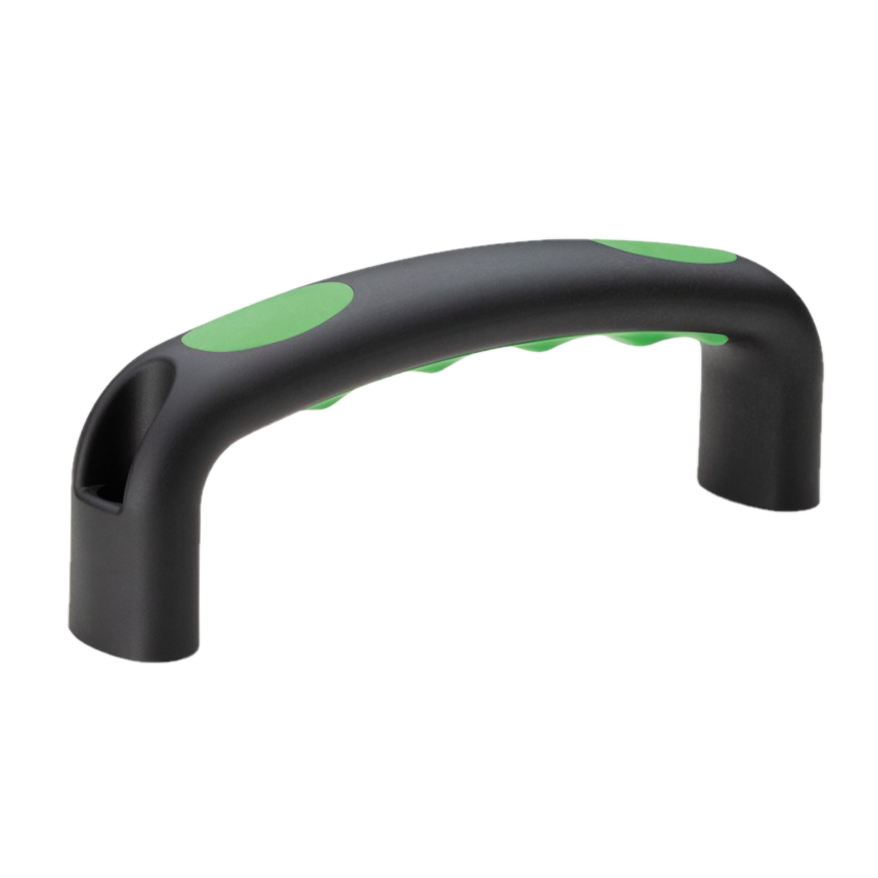

Soft-Touch Bridge Handles are ergonomic pull handles designed for fixtures, machine enclosures, control panels, equipment doors, and similar industrial applications. The arched body is molded from high-resilience polypropylene technopolymer with chemically and mechanically bonded soft-touch thermoplastic elastomer (TPE) inserts along the grip zone. The TPE material provides a comfortable, secure hand feel at 70 Shore A hardness. The body is finished in matte black, with grip inserts available in orange, green, or grey. Handles are counterbored for flush mounting with two M6 or 1/4" socket-head cap screws. Available in one size with 5-13/16" (148mm) overall length and 5-3/16" (132mm) hole spacing.

Technical Information

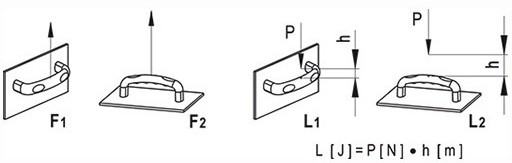

Tensile stress and impact strength: F1, F2, L1 and L2 values reported in the below doucment are the result of breaking tests carried out with the appropriate dynamometric equipment under the test conditions shown in the figure with ambient temperature.

Documents

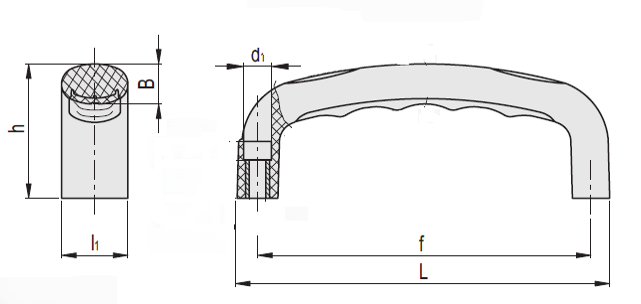

Soft-touch Bridge Handles

Technopolymer with Soft-touch ergonomic inserts

Standard Executions

Brass Bosses.
Threaded blind holes for back mounting.

Material

Polypropylene (PP) based technopolymer, high resilience, black colour, matte finish, with "soft-touch" thermoplastic elastomer (TPE) inserts chemically and mechanically seamed, hardness 70 Shore A, orange colour RAL 2004 (C2), red RAL 3000 (C6), green RAL 6017 (C17) and grey RAL 7024 (C24), matte finish.
