Hook Clamps – Tapped Long Arm (Standard)

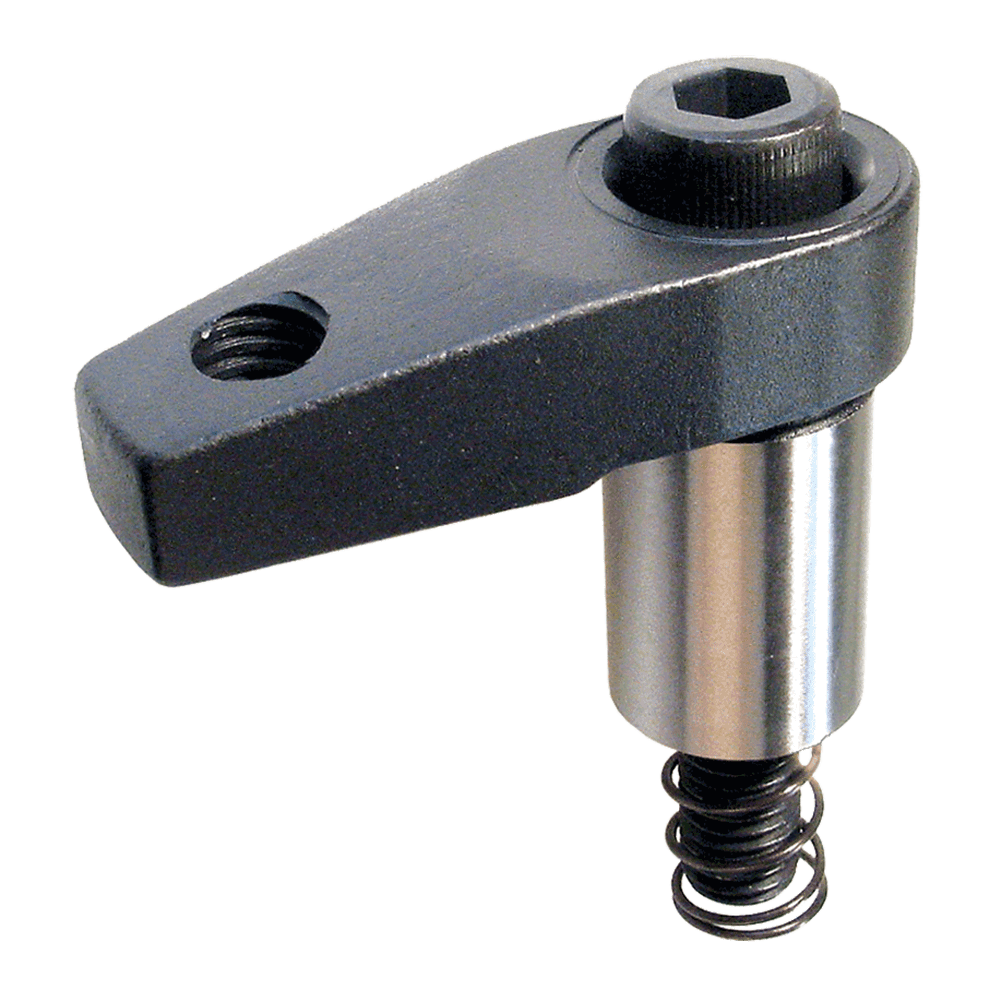

Hook clamps are designed to manually swing into clamping position, then clamp straight down by screw action. These clamps allow clear loading while swung away in unclamped position. Ideal in tight spaces where high clamping force is required. Long-arm Hook Clamps are available with either a tapped arm (shown here) or a plain arm. The tapped-arm version accepts a wide variety of contact bolts or spindles to increase clamping-height range (the tapped arm is also slightly longer). Made in USA.

The Hook Clamps shown here are for Standard System MF40 (1/2-13 stud size). For our complete selection of Long-Arm Hook Clamps, see Related Products below.

Application Information

Videos

Hook Clamp

Carr Lane Swing Clamps include standard and long arm Hook Swing Clamps, one-touch Quick-Acting Swing Clamps, Up-Thrust Clamps and Swing Clamp Assemblies. These swing arm clamps are designed to swing into clamping position, then clamp straight down. Each variety of Carr Lane swing clamp is available in various styles, including horizontal, vertical or hex drive cam handles, while vertical swing clamp assemblies feature knob or ball handle options.

Mounting

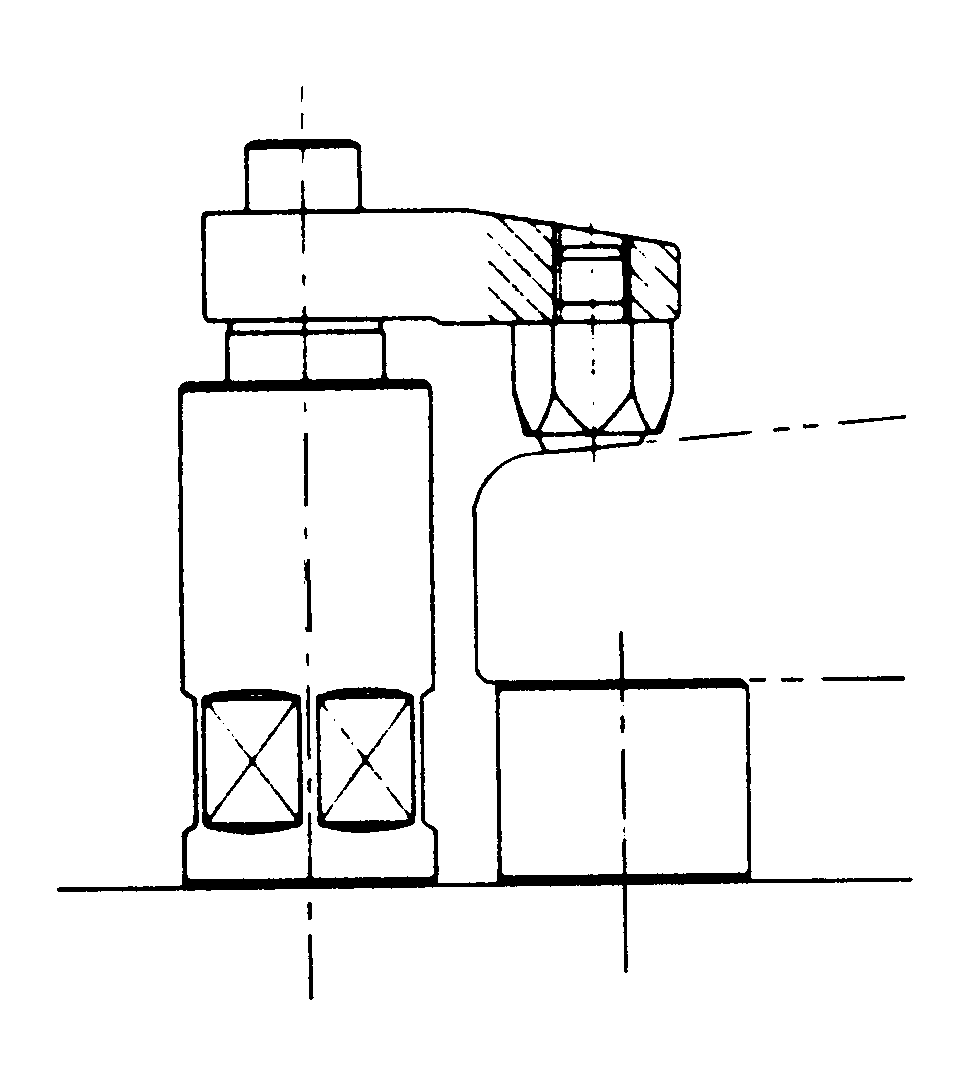

These clamps can be mounted in a Hook-Clamp Holder or Hook-Clamp Mounting Block. For high-rise clamping, Riser Cylinders are available to extend the range of standard Hook-Clamp Holders. See Related Products below to order mounting accessories.

Material

Clamp body > 4135 steel, heat treated, black oxide finish. Socket-head cap screw > Steel, black oxide finish. Spring > Spring steel, black oxide finish. DFARS and RoHS compliant.

Click here for detailed material and finish specifications.
