Two-Sided Tooling Blocks – Heavy (630mm) Model
CL-MF50-0603 Part

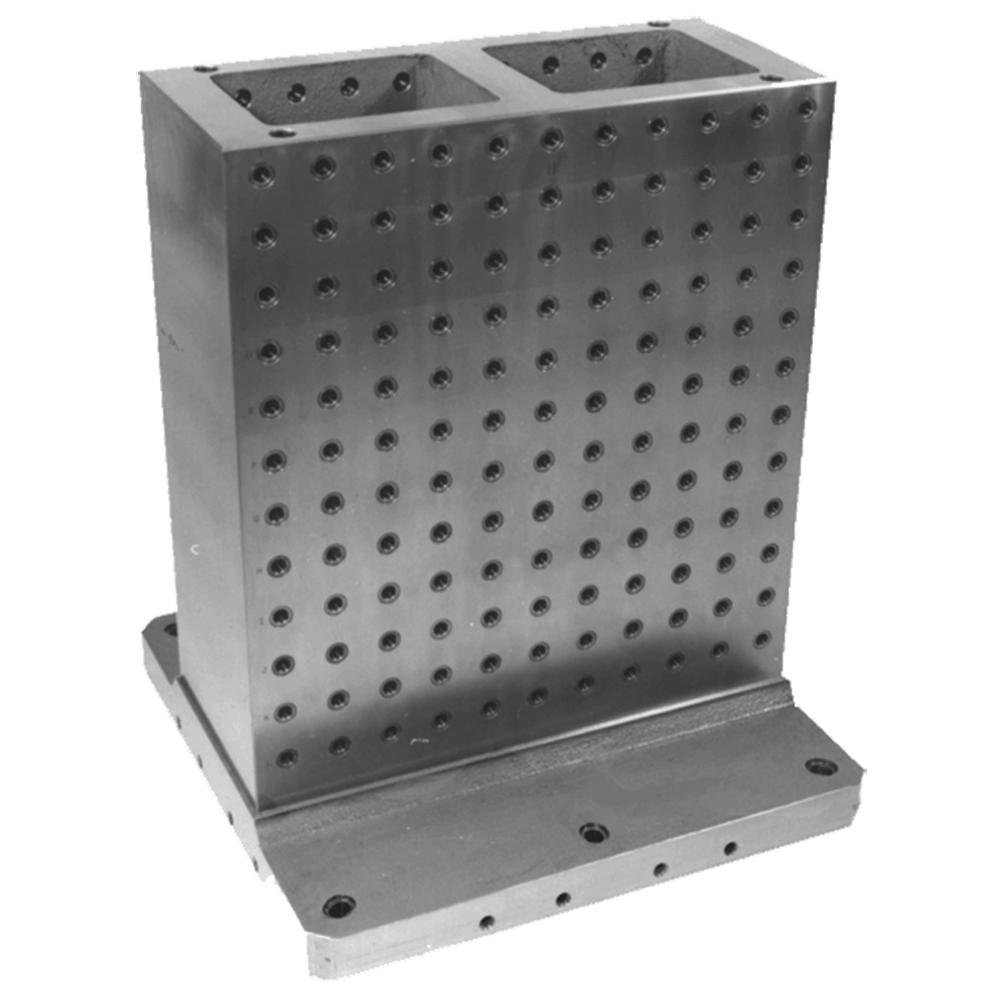

Two-Sided Tooling Blocks – Heavy (630mm)

Three Dimensional (3D) View
View Large Image

Carr Lane

https://www.carrlane.com/Default.aspx?TabId=50440&partid=56801&language=en-US

CL-MF50-0603 CL-MF50-0603 • Two-Sided Tooling Blocks – Heavy (630mm)

Product Information

Application Information

Multipurpose Holes (Heavy)

Mounting

Material

Place Order

Save to My Project

What is this?

Pricing & Availability

This part number seems to be incorrect. Please double-check the part number you entered, update accordingly and then click “Add to Pricing & Availability” to continue. If the part number you entered appears to be correct, yet you are still seeing an "Invalid status", please call Carr Lane Manufacturing Customer Service at 314-647-6200 for further assistance.

Status	Part Number	Quantity	Description	Unit Price	Line Item Total
			TWO-SIDED TOOLING BLOCK	$0.00	$0.00

*All prices are in US dollars. Inventory levels are subject to change.

Add to Pricing & Availability

Status Legend

Available This part is currently available for order.
Available Assembly This part is available, but some assembly is required.
Made to Order This part is available only as requested and will be made to order.
Partially Available This part is available, however, not in the full quantity that you requested.
Back Ordered This part is not available and is currently on back order.
!

Invalid The part number entered is invalid.

Part Specifications

Part Number	HOLE THREAD	HOLE ID	HOLE SPACING	HOLE PATTERN	A NOMINAL	A ACTUAL	B	C	D	E (JIS)	F (DIN)	G (USA)	H (JIS)	J (DIN)	K (USA)	L	P DIA	S	T	W	X	Z	WEIGHT (lbs)
CL-MF50-0603	5/8-11	.6250	2.0000	11 x 11	630mm	24.25	27.56	24.80	9.8425	500mm	400mm	20	M16	M16	5/8-11 or M16	3.937	25mm	12.4016	2.17	3/4-10	7.4803	5.0000	1020
