Angle Tooling Plates – Standard (630mm)

Product Information

Workholding Angle Tooling Plates – Standard (630mm)

Precision angle plate for machining-center pallets. Large working face is accurately finish machined to tight tolerances, and qualified to the base. All multipurpose holes are spaced within .0008" of true position. Gusseted back provides excellent strength and rigidity while keeping weight to a minimum. One-piece cast construction provides superior accuracy, dimensional stability, and vibration dampening. The Angle Tooling Plates shown here fit 630mm square pallets.

Application Information

Angle Tooling Plates are ideal for holding extremely large parts near the center of the pallet on a horizontal machining center.

Multipurpose Holes (Standard)

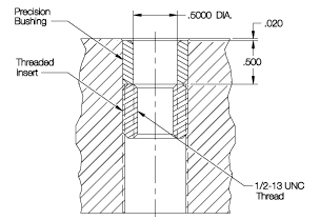

Each multipurpose hole on a Standard System MF40 tooling plate or block has a 1/2" ID bushing on top with a 1/2-13 threaded insert below it. Multipurpose holes are located in a precise 2.0000" grid pattern, spaced within ±.0008 inches of true position. Locating Screws, with a precision ground shoulder, are used to locate and fasten at the same time.

Mounting

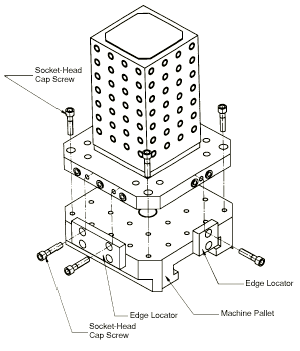

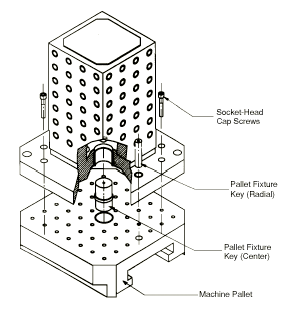

Dual mounting capability allows both JIS mounting (locating from two reference edges) and DIN mounting (locating from center and radial holes) with excellent accuracy. For DIN mounting, see Related Products below for Pallet Fixture Keys. Universal mounting holes fit almost any inch or metric slot spacing.

Material

Body > Gray cast iron, ASTM class 45. Bushings > High-carbon steel, heat treated. Threaded inserts > Steel. Protection Plugs > Plastic.

Click here for detailed material and finish specifications.
