Height Shims (Mini)

Save to My Project

What is this?

Product Information

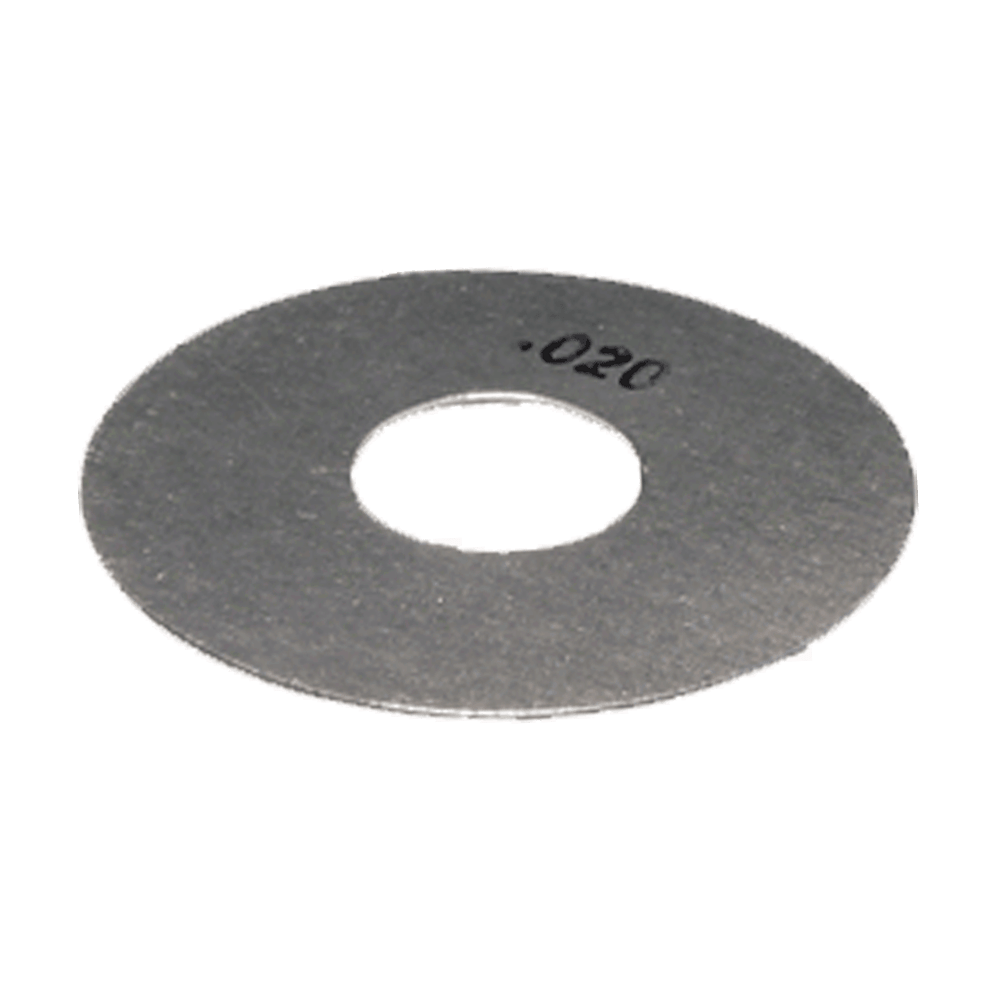

Precision shims that allow raising a height locator by a small, exact amount. Ideal when supporting at different levels underneath the same workpiece. Shims are stackable to obtain any height in .001" increments. Thickness tolerance is +/-.0003" on .062" and .125" sizes, +/-10% on smaller sizes.

The Height Shims shown here are for Mini System MF25 (ID for 5/16-18 screw). For our complete selection of Height Shims, see Related Products below.

View in Catalog Page
Contact Customer Service
Contact Customer Service

Application Information

Height Shims are useful when supporting at different levels underneath the same workpiece.

Material

MATERIAL	HEAT TREAT	FINISH	DFARS	RoHS
1010 Steel	-	-	✔	✔

Click here for detailed material and finish specifications.

California residents click here for Prop 65 information.

Height Shims (Mini)

PART NO.	A	B DIA	C DIA
CL-MF25-7002	.002	9/16	15/16
CL-MF25-7003	.003	9/16	15/16
CL-MF25-7004	.004	9/16	15/16
CL-MF25-7005	.005	9/16	15/16
CL-MF25-7010	.010	9/16	15/16
CL-MF25-7020	.020	9/16	15/16
CL-MF25-7062	.062	9/16	15/16
CL-MF25-7125	.125	9/16	15/16

Check Price & Availability
