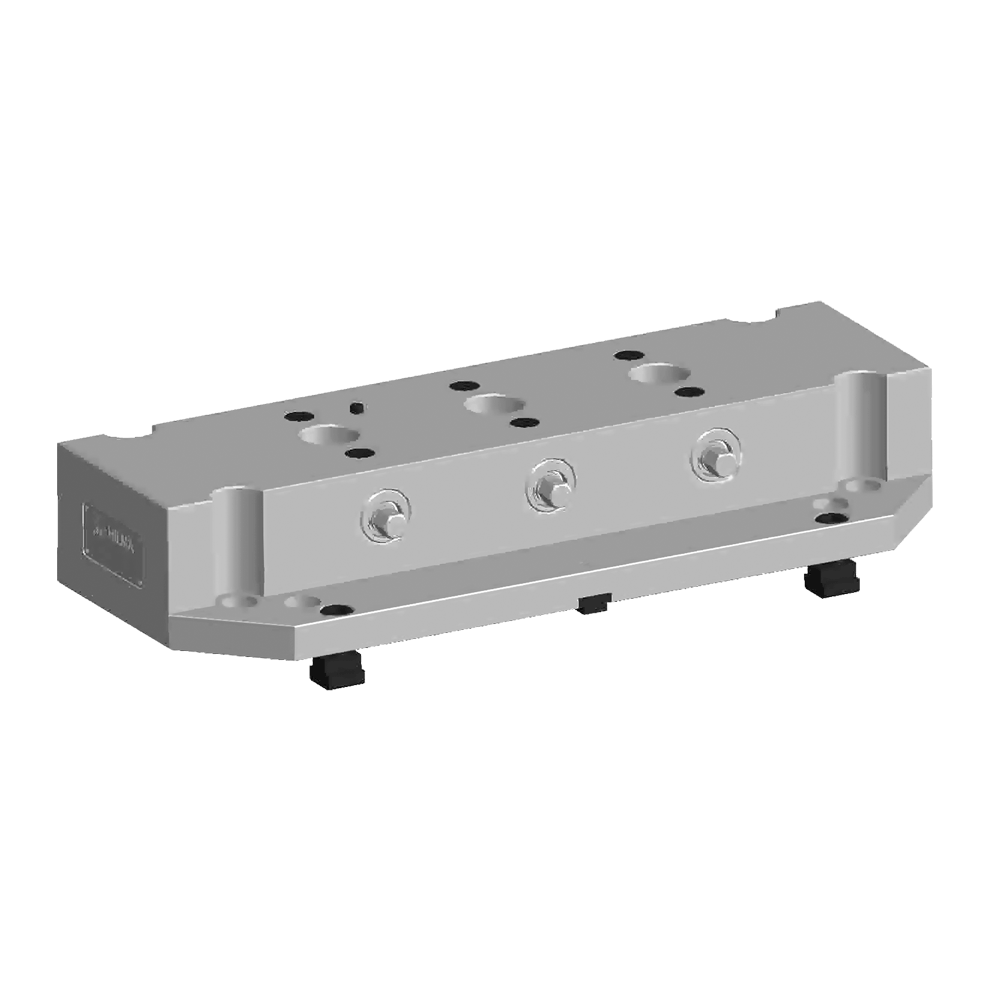

Quintus 3 Zero-Point Quick-Change Risers

Save to My Project

What is this?

Product Information

Quintus Quick-Change Risers provide accurate zero-point location and secure clamping, along with quick-change capability and workpiece elevation for improved spindle access – all in one compact unit. To locate and clamp a fixture, the Quintus 3 riser utilizes three pull-down bolts – one with zero-point centering, one with single-axis centering, and one without centering – providing 3 x 4500 lbs of pull-down force. Made in Germany.

View in Catalog Page
Contact Customer Service
Contact Customer Service

Application Information

5-Axis Self-Centering Vise mounted on a Quintus 3 Quick-Change Riser

Documents

WS5.6150

Data Sheet

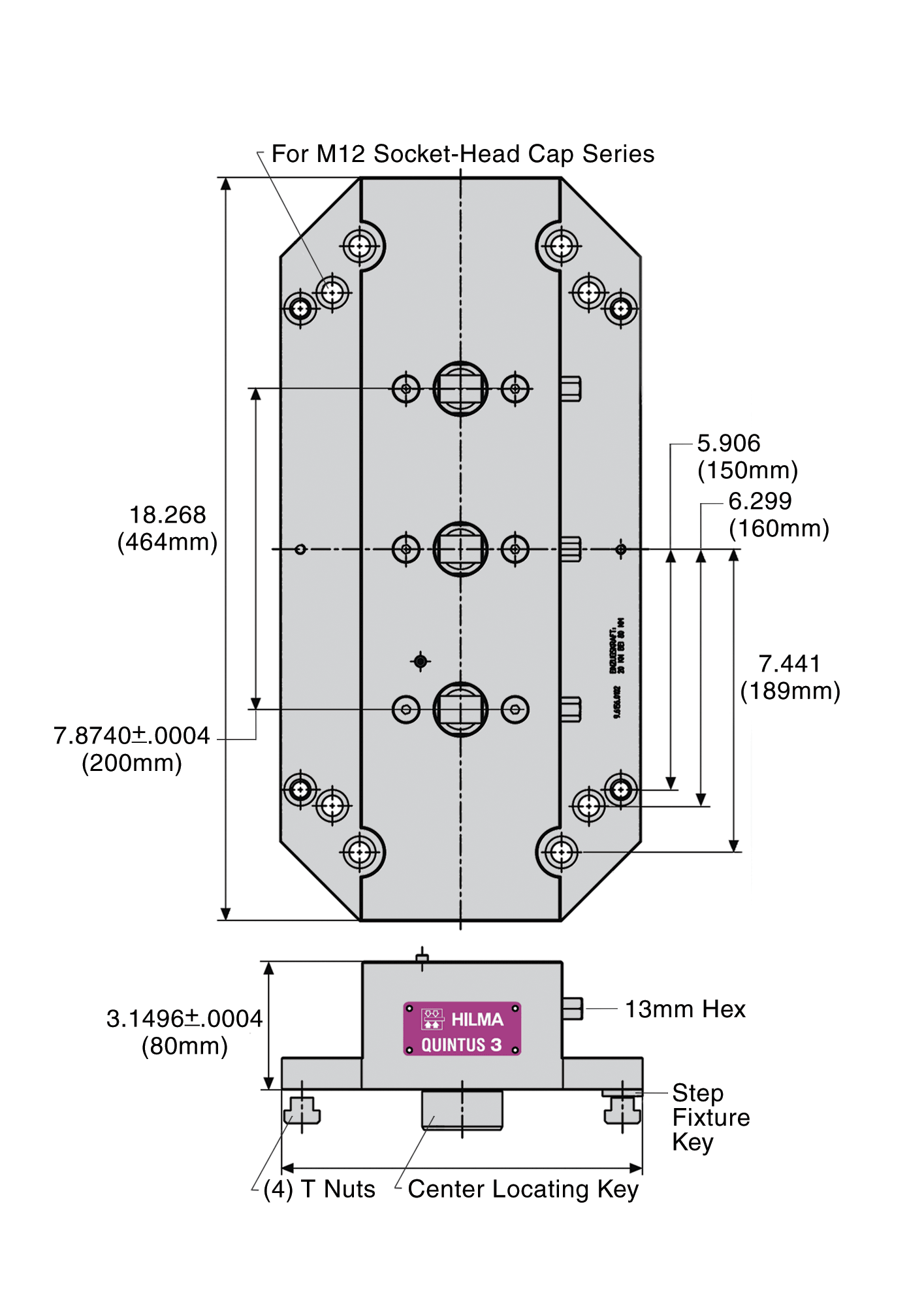

Mounting on a Machine Table

(image)

To locate the Quintus riser at the exact center of a rotary table, first install a Center Locating Key that matches the table's center-hole diameter in the riser's 25mm bottom center hole. For exact radial orientation, install a Step Fixture Key that matches the table's slot width in the riser's 20mm bottom slot. Fasten the riser to the machine table with four M12 socket-head cap screws (CLM-12x25-SHCS) and T Nuts to match the table slots.

Material

Base > Steel. DFARS and RoHS compliant.

Click here for detailed material and finish specifications.

Quintus 3 Zero-Point Quick-Change Risers

QUANTITY	PART NO.	PULL-DOWN FORCE (lbs)
	CLRH-9-6156-0102-VSA	4500 x 3

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
Quick Ship Available

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product

Products Related to Quintus 3 Zero-Point Quick-Change Risers

Center Locating Keys for Rotary Tables

Step Fixture Keys for CL5 System

T Nuts for CL5 System

Socket Head Cap Screws

Quintus Pull-Down Bolt Set for Quintus 3
