Manifolds (6 Branch)

ROEMHELD Power Workholding

Save to My Project

What is this?

Product Information

7250 psi max

These distribution manifolds provide a solid point on the machining fixture to connect the hydraulic hose from a power unit. Install a male Quick Disconnect into one of the ports, to couple with a female Quick Disconnect on the hose. From the manifold, use tubing or Fixture Hose for plumbing to individual clamps.

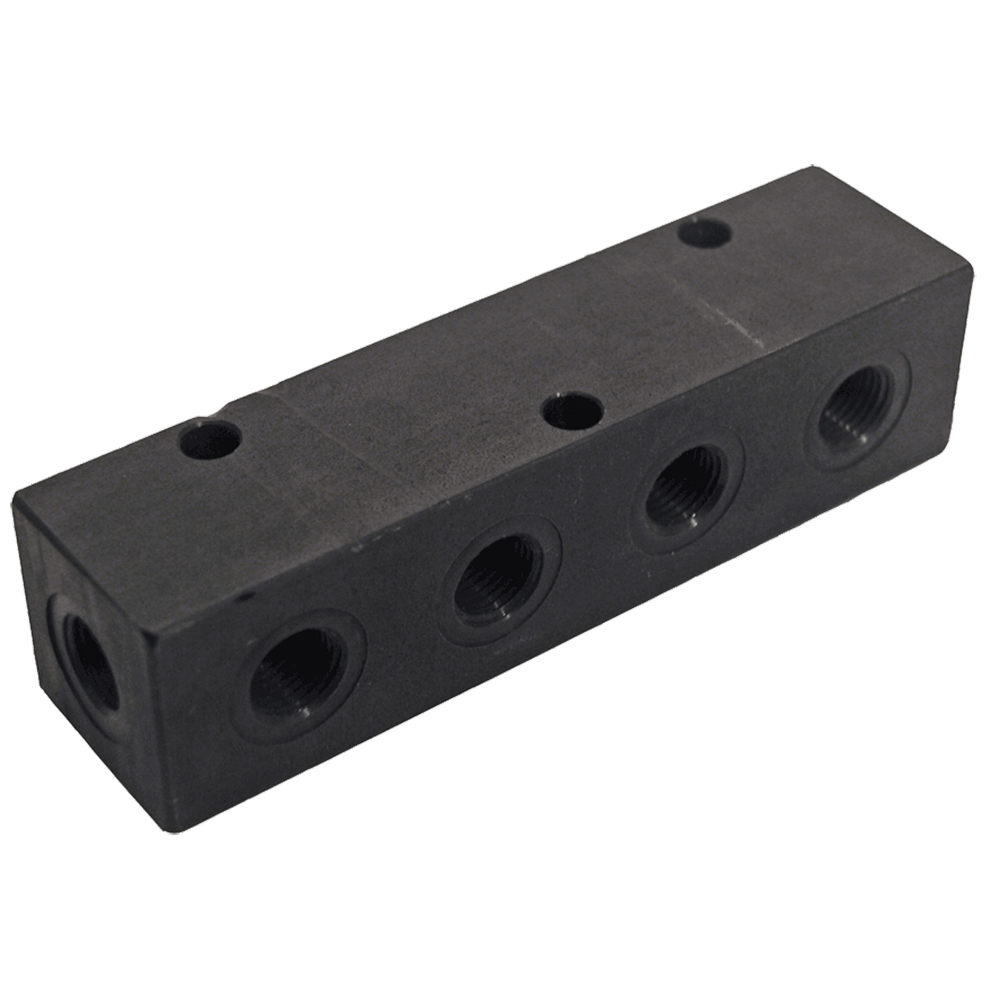

The 6-branch manifold shown here has 7 ports. Any one of these can be used as an input port, with the other 6 used as output ports.

View in Catalog Page
Contact Customer Service
Contact Customer Service

Mounting & Fluid Supply

Fasten to fixture with three 1/4" or M6 socket-head cap screws. 1/4" BSPP ports. Order Quick Disconnect and fittings separately. Do not use NPT fittings.

Material

MATERIAL	HEAT TREAT	FINISH	DFARS	RoHS
Steel	-	Black Oxide	✔	✔

Click here for detailed material and finish specifications.

California residents click here for Prop 65 information.

Manifolds (6 Branch)

QUANTITY	PART NO.	PORT SIZE	NUMBER OF PORTS
	CLR-106-BP	1/4" BSPP	7

Check Price & Availability
