Quick Disconnects – Standard (Female Coupler)

ROEMHELD Power Workholding

Save to My Project

What is this?

Product Information

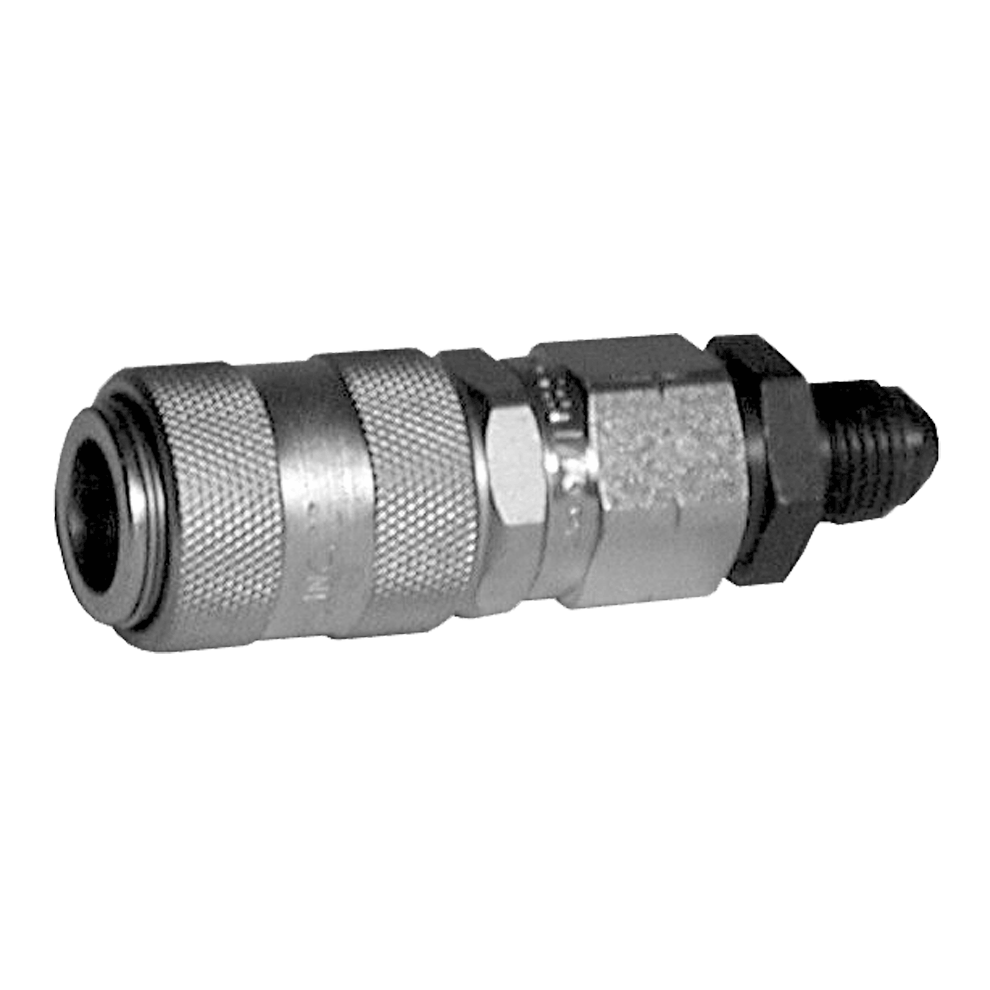

Quick Disconnects – Standard (Female Coupler)

7250 psi max

Quick Disconnects allow the fluid line to be uncoupled from a machining fixture, automatically sealing the fluid lines on both sides to prevent leakage. Easy one-hand operation without any wrenches or tools. The male Quick Disconnect is usually mounted on the fixture, with the female Quick Disconnect mounted on the hose. To keep Quick Disconnects clean while uncoupled, the female coupling is furnished with a protective plug, while the male coupling is furnished with a protective cap.

View in Catalog Page
Contact Customer Service
Contact Customer Service

Operation

To couple, pull the female coupling's knurled sleeve back manually, then advance the coupling against spring force until a positive mechanical stop is reached. When the sleeve is released in this forward position, the locking balls of the female section snap into the groove of the male section for positive retention. To uncouple, pull the knurled sleeve back manually. This frees the locking balls and allows the male and female sections to disengage.

Design Considerations & Safety Precautions

Quick Disconnects should only be operated with both sides depressurized. When uncoupling a pressurized pallet fixture after clamping, a Shutoff Valve must be used on the fixture side.

Quick Disconnects – Standard (Female Coupler)

QUANTITY	PART NO.	ITEM
	CLR-222-F	Quick Disconnect Coupler (Female)
