Heavy-Duty Hoses (37-Degree Flare)

ROEMHELD Power Workholding

Save to My Project

What is this?

Product Information

7250 psi max

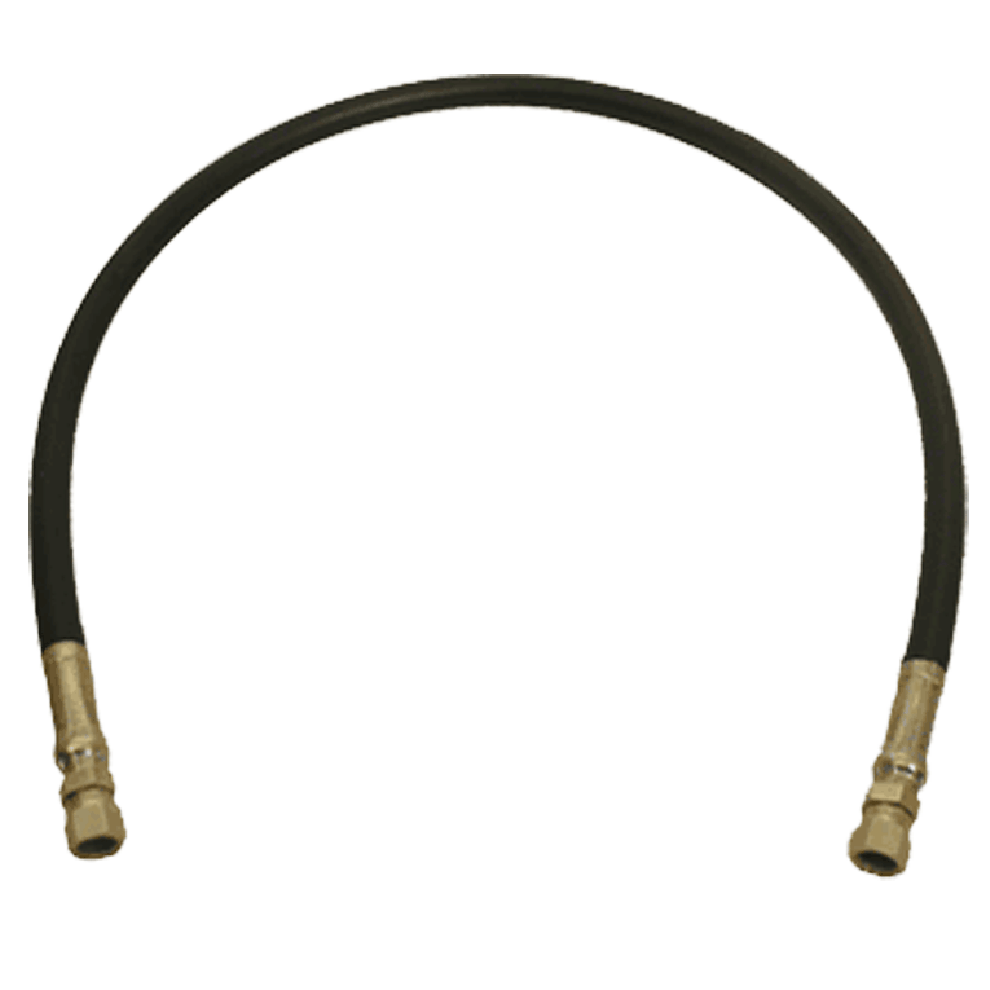

Heavy-Duty Hose is ideal for long, flexible hydraulic connections, such as the line from a power source to a fixture. This high-pressure hose is reinforced with four plies of high-tensile wire for remarkably little expansion under pressure (fluid required due to expansion is only .066 cu.in. per foot at 7500 psi). 1/4" inside diameter. 5" minimum bend radius. 28,000 psi minimum burst pressure provides a safety factor over 3-to-1 at 7250 psi.

The version shown here has swivel-nut ends for 37°-flare fittings. Choice of many standard lengths, from 18 to 72" long. For longer runs, use a CLR-301-F Union Fitting to connect two hoses. Special lengths are available upon request (10 feet maximum).

View in Catalog Page
Contact Customer Service
Contact Customer Service

Design Considerations & Safety Precautions

Do not use any type of hose other than our Heavy-Duty Hose or Fixture Hose with our power workholding products.

Heavy-Duty Hoses (37-Degree Flare)

PART NO.	OVERALL LENGTH	ID	MINIMUM BEND RADIUS
CLR-18-H	18	1/4	5.0
CLR-24-H	24	1/4	5.0
CLR-30-H	30	1/4	5.0
CLR-36-H	36	1/4	5.0
CLR-42-H	42	1/4	5.0
CLR-48-H	48	1/4	5.0
CLR-60-H	60	1/4	5.0
CLR-72-H	72	1/4	5.0
