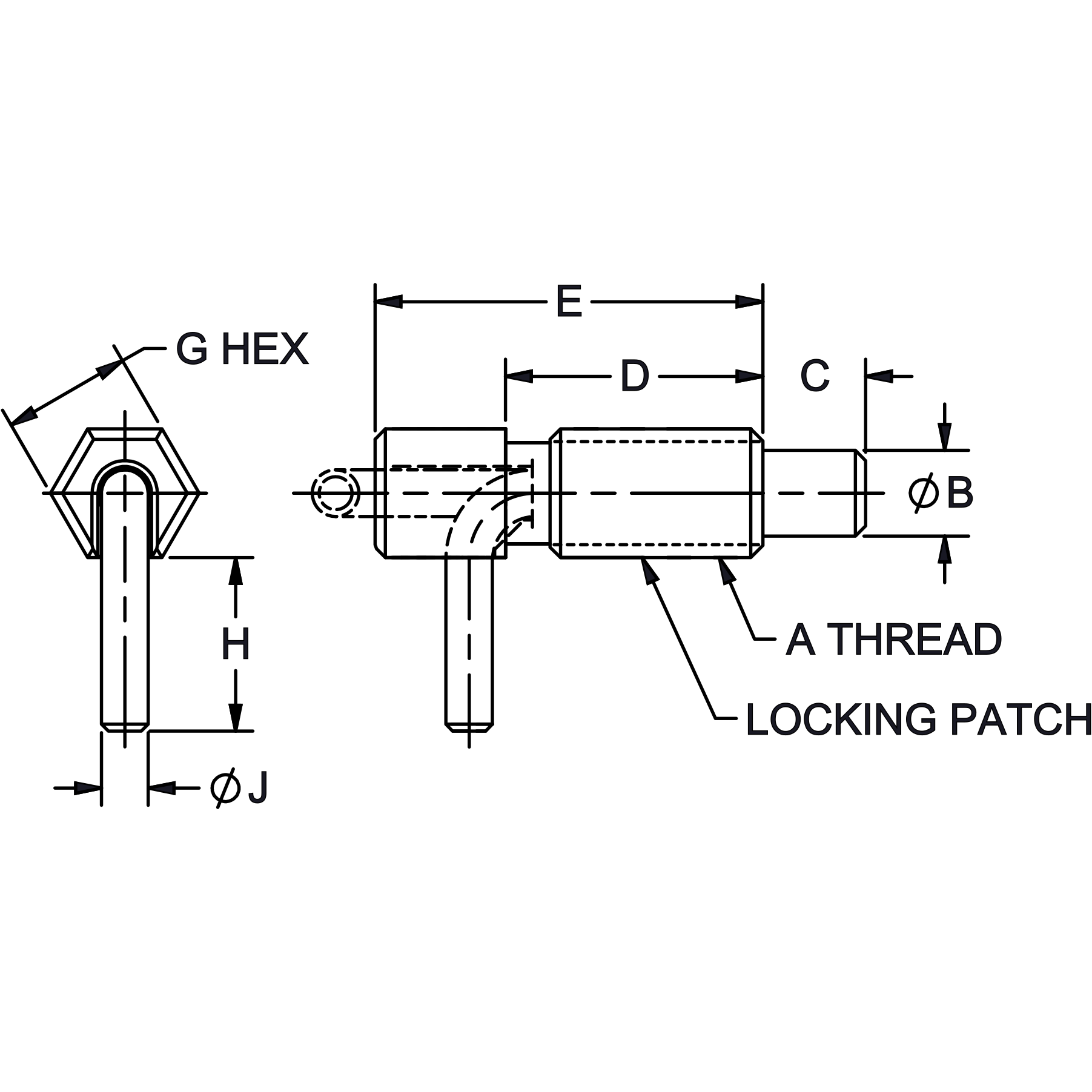

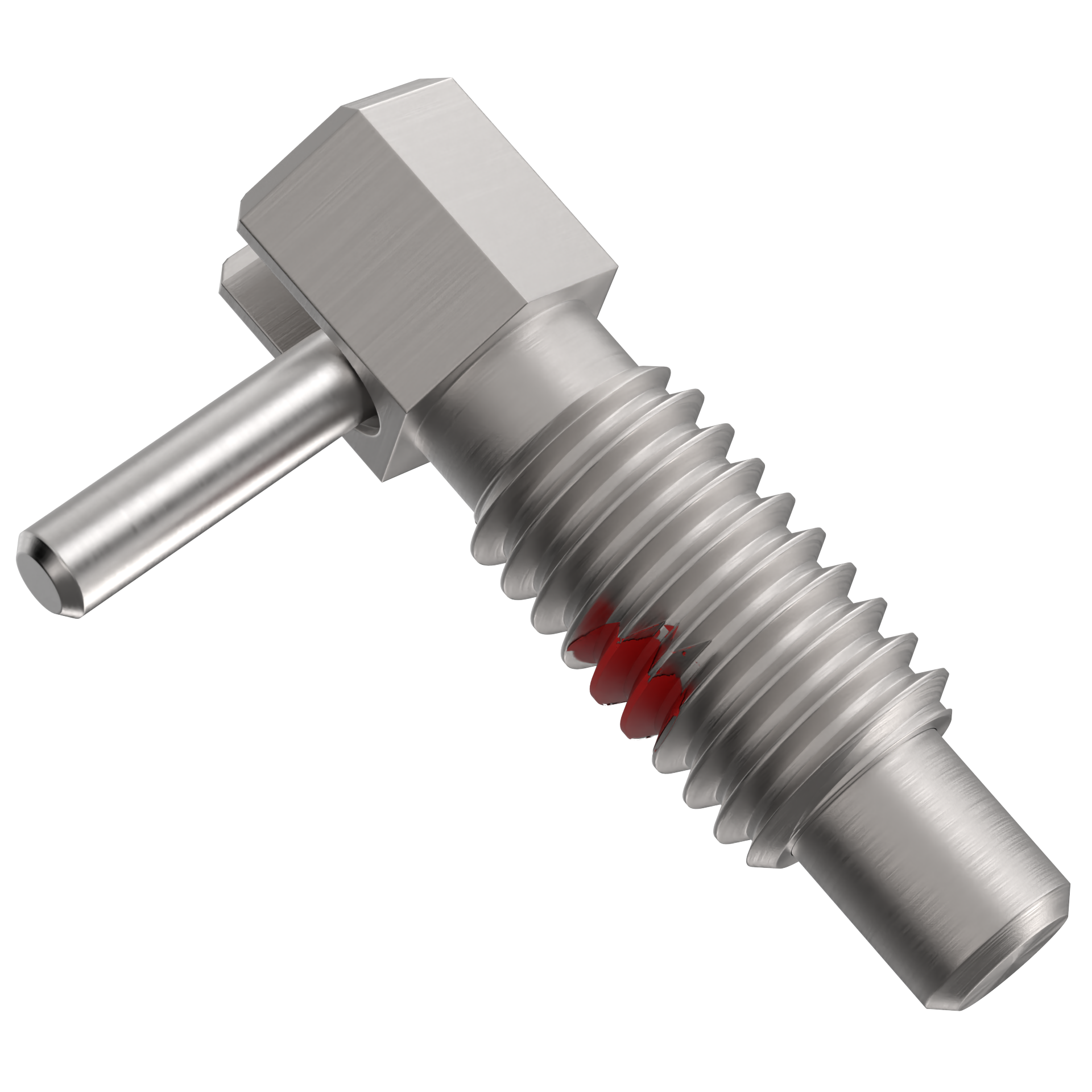

Hand-Retractable Plungers – L Handle, Short Stroke (Locking Type)

Spring-Loaded Devices

Steel (Inch)
QUANTITY PART NO. A
THREAD
INITIAL
END
FORCE
(lbs)
FINAL
END
FORCE
(lbs)
B
DIA
C D E G H J
DIA
CL-40-LHRP 1/4-20 .12 .5 .156 3/16 7/16 3/4 1/4 9/16 3/32
CL-60-LHRP 3/8-16 .25 1.25 .250 5/16 5/8 1-1/8 3/8 3/4 9/64
CL-80-LHRP 1/2-13 .5 2 .312 13/32 7/8 1-1/2 1/2 1 3/16
CL-100-LHRP 5/8-11 .75 2..5 .375 1/2 1-1/8 1-7/8 5/8 1-3/16 3/16
Stainless Steel (Inch)
QUANTITY PART NO. A
THREAD
INITIAL
END
FORCE
(lbs)
FINAL
END
FORCE
(lbs)
B
DIA
C D E G H J
DIA
CL-40-LHRP-S 1/4-20 .12 .5 .156 3/16 7/16 3/4 1/4 9/16 3/32
CL-60-LHRP-S 3/8-16 .25 1.25 .250 5/16 5/8 1-1/8 3/8 3/4 9/64
CL-80-LHRP-S 1/2-13 .5 2 .312 13/32 7/8 1-1/2 1/2 1 3/16
CL-100-LHRP-S 5/8-11 .75 2..5 .375 1/2 1-1/8 1-7/8 5/8 1-3/16 3/16
