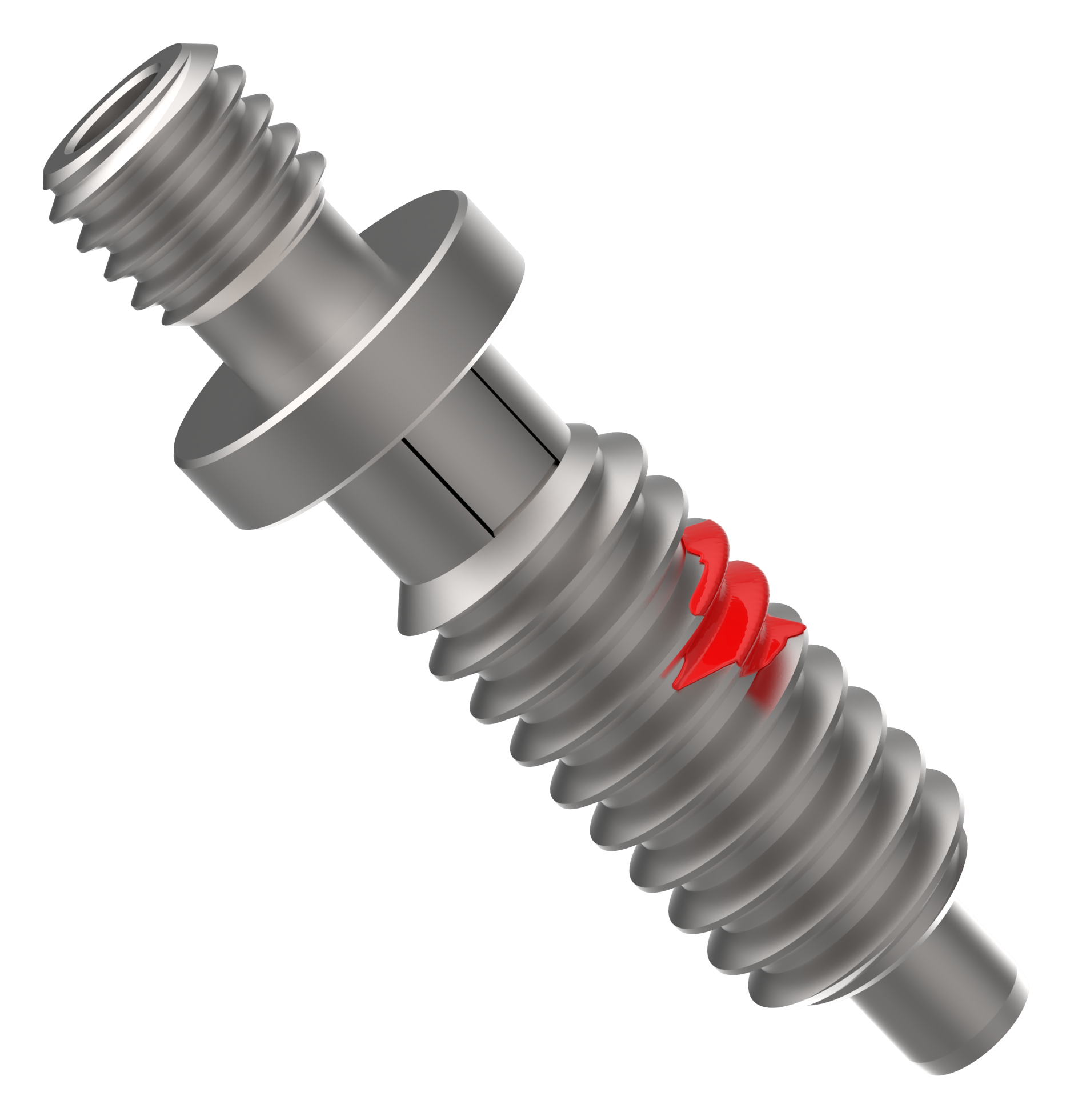

Hand-Retractable Plungers – Threaded Stud for Knob Handle (Locking Type)

Spring-Loaded Devices

Steel (Inch)
QUANTITY PART NO. A
THREAD
INITIAL
END
FORCE
(lbs)
FINAL
END
FORCE
(lbs)
B
DIA
NOMINAL
B
DIA
ACTUAL
C D E F
DIA
G H
THREAD
CL-3-HRPT #10-32 1 3 .105 3/32 13/32 5/64 5/16 15/64 #10-32
CL-4-HRPT 1/4-20 1 5 1/8 .125 1/8 1/2 3/32 5/16 15/64 #10-32
CL-5-HRPT 5/16-18 1.5 6 5/32 .156 3/16 5/8 3/32 5/16 11/32 1/4-20
CL-6-HRPT 3/8-16 1.5 8 3/16 .187 7/32 3/4 1/8 3/8 13/32 5/16-18
CL-8-HRPT 1/2-13 2.5 10 1/4 .250 1/4 7/8 1/8 1/2 7/16 3/8-16
CL-10-HRPT 5/8-11 5 10 5/16 .312 5/16 1 5/32 5/8 1/2 1/2-13
Stainless Steel (Inch)
QUANTITY PART NO. A
THREAD
INITIAL
END
FORCE
(lbs)
FINAL
END
FORCE
(lbs)
B
DIA
NOMINAL
B
DIA
ACTUAL
C D E F
DIA
G H
THREAD
CL-3-HRPT-S #10-32 1 3 .105 3/32 13/32 5/64 5/16 15/64 #10-32
CL-4-HRPT-S 1/4-20 1 5 1/8 .125 1/8 1/2 3/32 5/16 15/64 #10-32
CL-5-HRPT-S 5/16-18 1.5 6 5/32 .156 3/16 5/8 3/32 5/16 11/32 1/4-20
CL-6-HRPT-S 3/8-16 1.5 8 3/16 .187 7/32 3/4 1/8 3/8 13/32 5/16-18
CL-8-HRPT-S 1/2-13 2.5 10 1/4 .250 1/4 7/8 1/8 1/2 7/16 3/8-16
CL-10-HRPT-S 5/8-11 5 10 5/16 .312 5/16 1 5/32 5/8 1/2 1/2-13
Steel (Metric)
QUANTITY PART NO. A
THREAD
THREAD
PITCH
(mm)
INITIAL
END
FORCE
(N)
FINAL
END
FORCE
(N)
B
DIA
(mm)
C
(mm)
D
(mm)
E
(mm)
F
DIA
(mm)
G
(mm)
H
THREAD
CLM-6-HRPT M6 1 4 22 3 3.2 12.5 2.4 8 6 #10-32
CLM-8-HRPT M8 1.25 7 27 4 4.8 16 2.4 8 8.5 1/4-20
CLM-10-HRPT M10 1.5 7 36 5 5.5 19 3.2 9.5 10.5 5/16-18
CLM-12-HRPT M12 1.75 11 44 6 6.5 22 3.2 12.5 11 3/8-16
