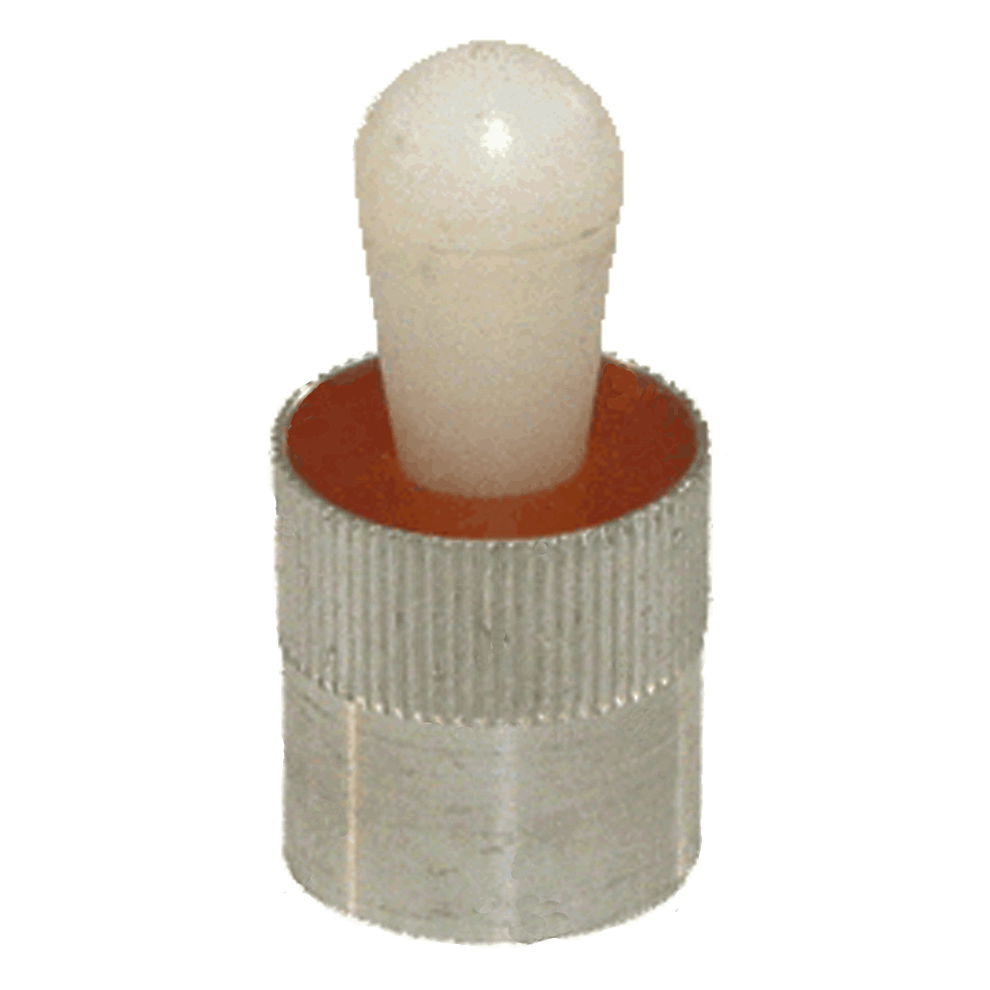

Spring Locating Pins – Delrin® Pin (Polyurethane Spring)

Spring-Loaded Devices

Inch
QUANTITY PART NO. A
DIA
APPROX
SIDE
FORCE
(lbs)
B
DIA
C D X DIM
WHEN Y
EQUALS
1/16
X DIM
WHEN Y
EQUALS
1/8
X DIM
WHEN Y
EQUALS
3/16
X DIM
WHEN Y
EQUALS
1/4
X DIM
WHEN Y
EQUALS
5/16
X DIM
WHEN Y
EQUALS
3/8
X DIM
WHEN Y
EQUALS
7/16
X DIM
WHEN Y
EQUALS
1/2 OR
MORE
CL-7-SLPP-1 7/16 6.7 .197 .287 .374 .051 .059 .066 .067 .067 .067 .067 .067
CL-7-SLPP-2 7/16 13.5 .197 .287 .374 .051 .059 .066 .067 .067 .067 .067 .067
CL-7A-SLPP-1 7/16 6.7 .236 .406 .374 .050 .058 .066 .073 .078 .078 .078 .078
CL-7A-SLPP-2 7/16 13.5 .236 .406 .374 .050 .058 .066 .073 .078 .078 .078 .078
CL-8-SLPP-1 1/2 11.1 .315 .515 .553 .073 .081 .089 .096 .104 .110 .110 .110
CL-8-SLPP-2 1/2 22.2 .315 .515 .553 .073 .081 .089 .096 .104 .110 .110 .110
CL-10-SLPP-1 5/8 18 .394 .678 .675 .084 .091 .099 .107 .114 .122 .130 .135
CL-10-SLPP-2 5/8 36 .394 .678 .675 .084 .091 .099 .107 .114 .122 .130 .135
