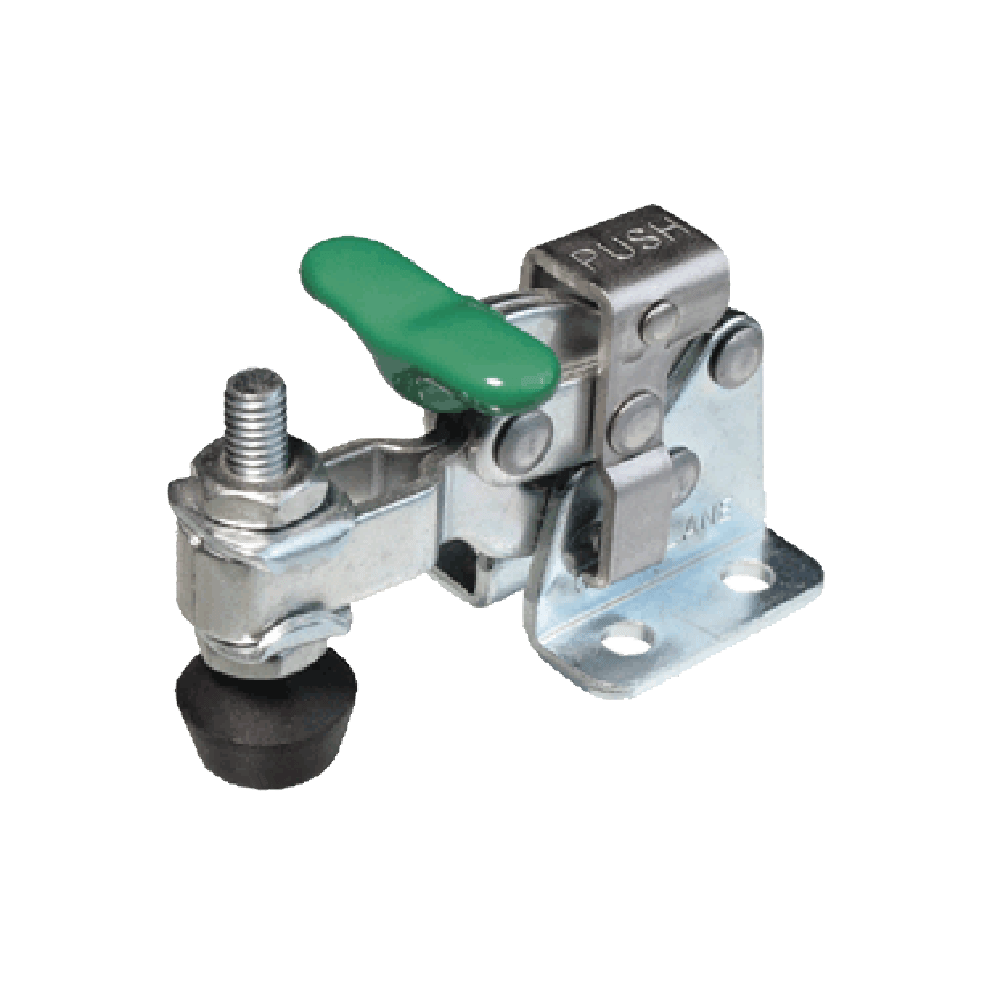

CL-200-LVTC with Safety Lock (150 lbs)

Toggle Clamps

Save to My Project

What is this?

Product Information

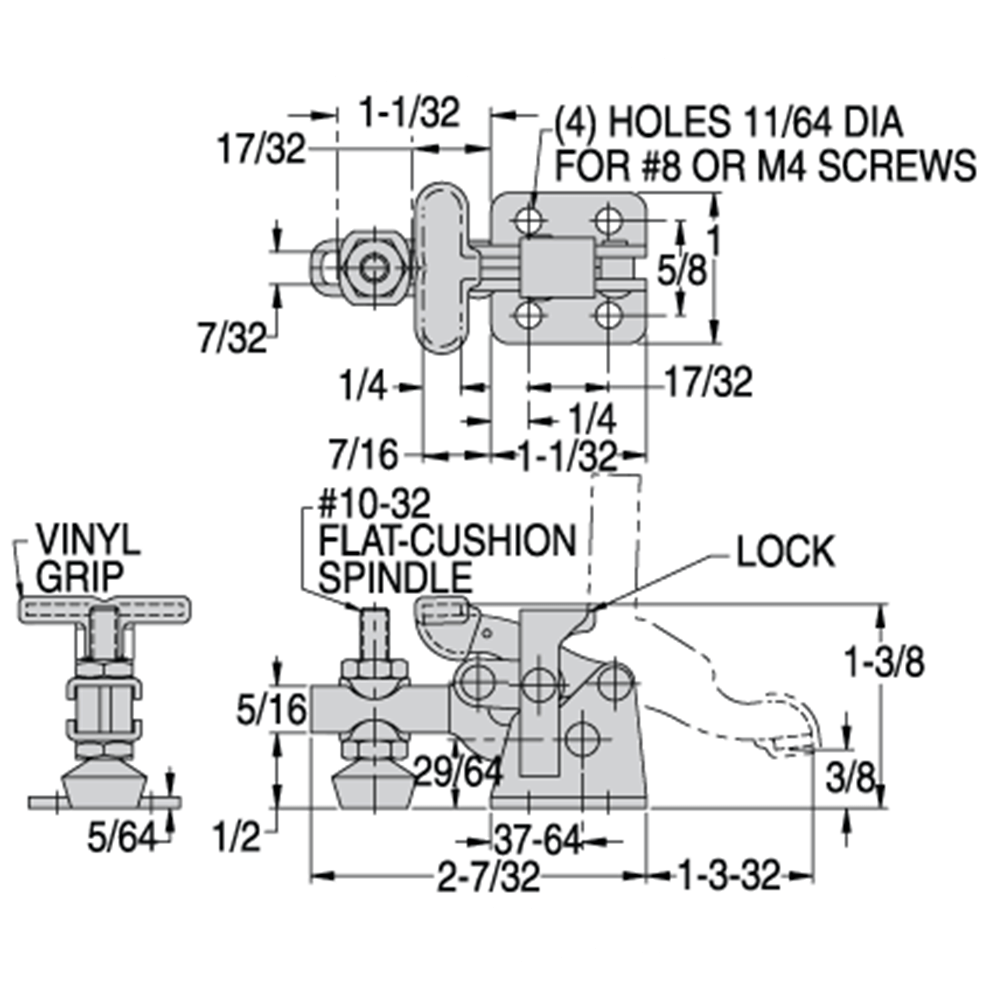

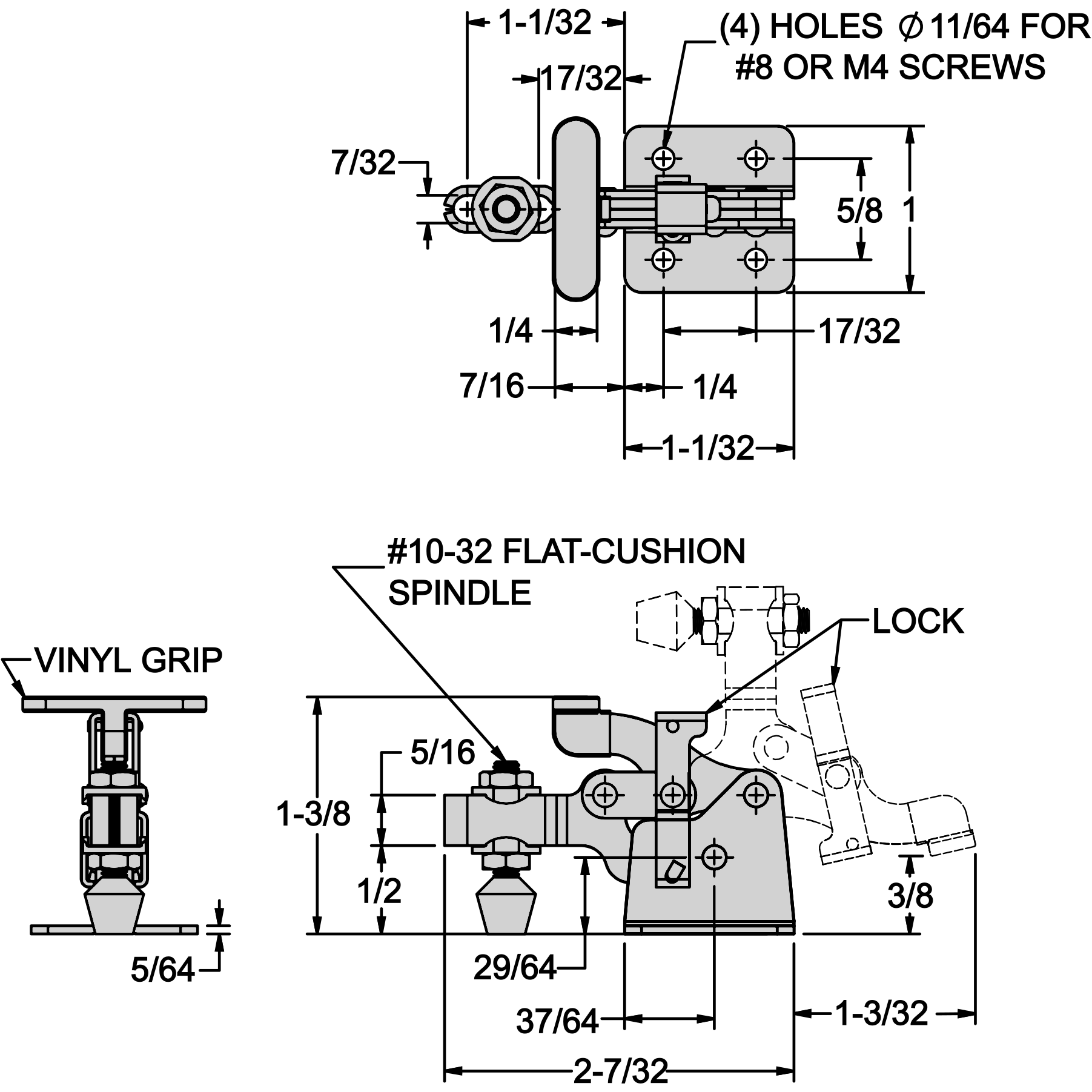

CL-200-LVTC

Open Arm, Flanged Base, T Handle

Safety-lock version of our CL-200-VTC toggle clamp. The integral safety lock automatically engages when the clamp is closed, then remains locked until manually disengaged by pressing the lever before opening. This prevents the clamp from being accidentally opened by bumping the handle.

Miniature hold-down clamp with a unique finger-grip T handle. Extremely compact design. Arm opens 92° while handle moves 175°. Open arm provides adjustable spindle location. 150 lbs holding capacity.

View in Catalog Page
Contact Customer Service
Contact Customer Service

Clamping Action

Clamped Position

Press lever to unlock

Open Position

Accessories

Supplied with #10-32 flat-cushion spindle CL-316112-FC and (2) CL-3166-TW flanged washers. For alternative clamping spindles, see Related Products below.

Material

ITEM	MATERIAL	HEAT TREAT	FINISH	DFARS	RoHS
Clamp Body	1008,1010, and/or 1018 Steel	-	Zinc plated clear chromate	✔	✔
Rivets	400-Series Stainless	-	-	✔	✔
Handle	Vinyl	-	-	✔	✔

Click here for detailed material and finish specifications.

California residents click here for Prop 65 information.

CL-200-LVTC with Safety Lock (150 lbs)

Steel

QUANTITY	PART NO.	DESCRIPTION	HOLDING CAPACITY (lbs)	SHIPPING WEIGHT (lbs)
	CL-200-LVTC	Open Arm, Flanged Base, T Handle	150	.2

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
Quick Ship Available

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product

Products Related to CL-200-LVTC with Safety Lock (150 lbs)

Clamping Spindles
