How Do Toggle Clamps Work?

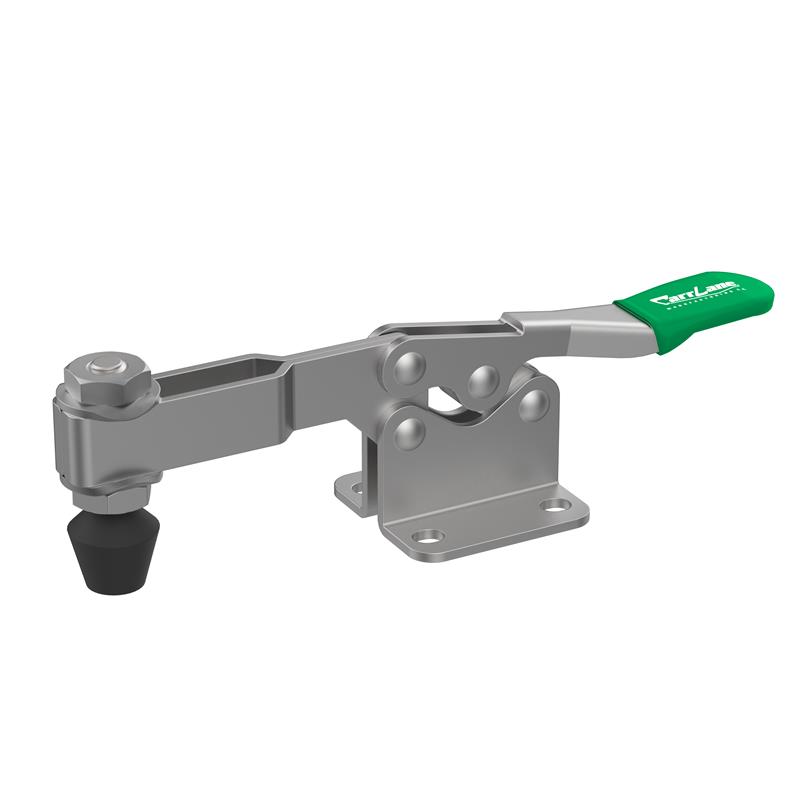

A toggle clamp is a versatile workholding product used to hold a stationary workpiece in a locked position. This is especially useful for injection molding, production lines, welding applications, and more. Toggle clamps are quick-action clamping tools that operate using an over-center locking principle known as a “toggle action.”

Learn More

Toggle-Action Principles

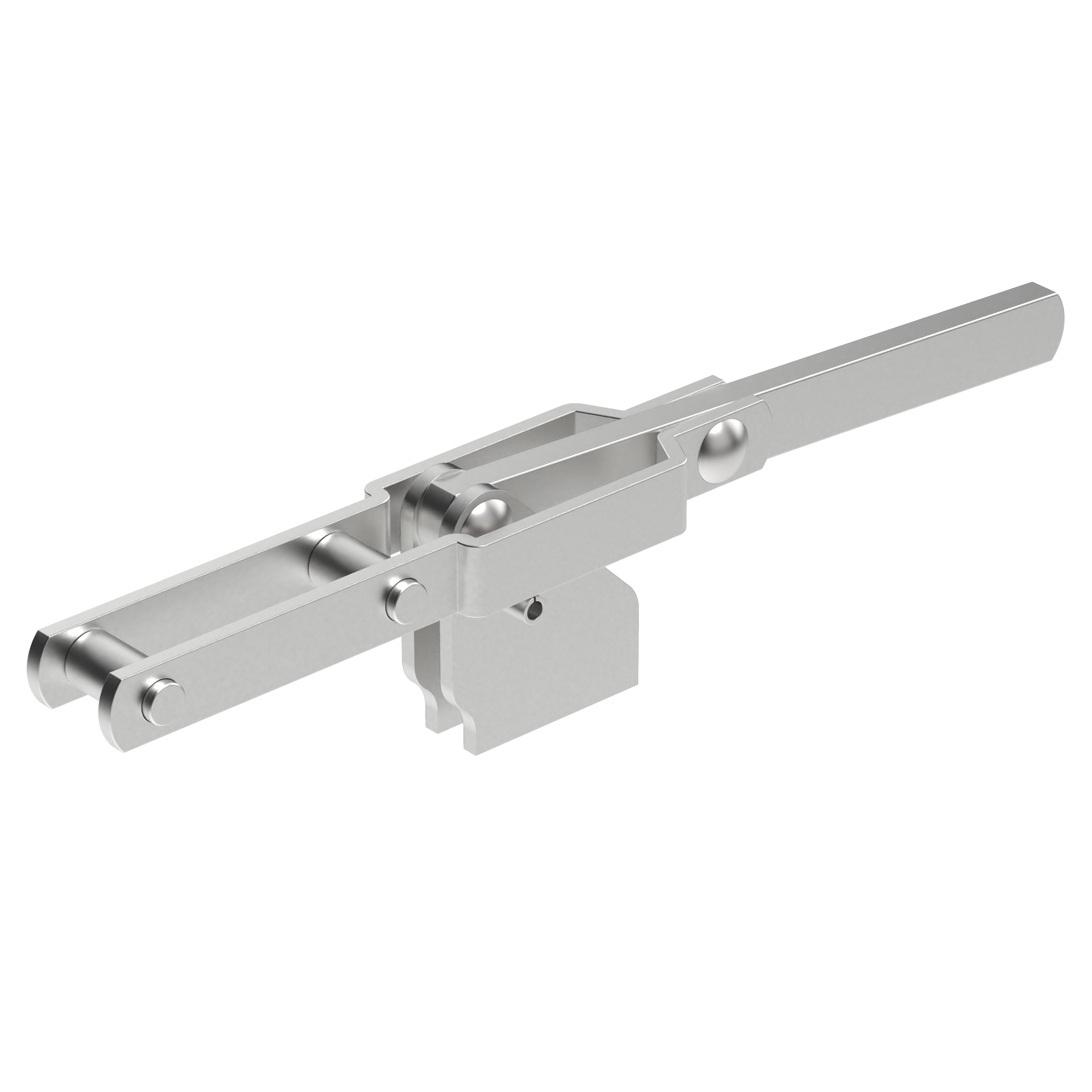

A toggle clamp is a quick-acting mechanical linkage where two of the elements make up a toggle action. Actuating the clamp first moves it into position, then applies clamping force by compressing or stretching the linkage elements after contacting the workpiece. Once contact is made, it positively locks by moving the toggle action's center pivot past the centerline of the other two pivots, against a stop.

Learn More

Holding Capacity & Clamping Force

The “holding capacity” listed for each toggle clamp refers to the maximum external force that the clamp can safely resist in its locked position without incurring any permanent deformation. For hold-down clamps, holding capacity is measured with the spindle as close as possible to the handle, and will be less at the end of the clamping arm.

Learn More

Toggle Clamp Types

A Toggle Clamp is used to securely locate stationary workpieces and other components in position through a combination of levers and pivot points This quick-acting and versatile workholding product is available in a variety of action types that have specific applications and designs based on an operator’s requirements. Toggle clamps are especially useful for injection molding, production lines, and welding applications.

Learn More

Power Toggle Clamps

Power toggle clamps are air-powered clamping devices that use a toggle linkage to provide strong, consistent holding with automatic operation, ensuring secure locking and improved efficiency in industrial applications.

Learn More

Toggle Clamp Applications Guide

Toggle clamps are versatile workholding solutions used in welding, assembly, and light machining, offering quick, secure, and repeatable clamping across a wide range of industrial applications.

Learn More



What Can Toggle Clamps Be Used For?

Toggle clamps are versatile tools used in a wide range of applications across various industries. Their unique mechanism and robust design make them ideal for securely holding workpieces in place during numerous operations. Some of the common applications of toggle clamps include:

  • Machining and Metalworking: Toggle clamps hold workpieces firmly during milling, drilling, and boring operations, ensuring precision and stability. They can also provide a secure hold during the grinding process, and in lathe operations, secure the workpiece to maintain consistent contact with the cutting tool.
  • Welding: Toggle clamps are often used to hold parts in place during welding, ensuring accurate alignment and preventing movement due to heat and vibration. They are also an essential component of welding jigs, providing quick and secure clamping for repetitive welding tasks.
  • Woodworking: In carpentry, toggle clamps can secure wooden pieces during cutting, sanding, and shaping. They are also used in assembly jigs that hold components in place while glue sets or during fastener installation.
  • Assembly and Manufacturing: Toggle clamps are used in various product assembly processes to hold parts together for fastening, gluing, or inspection. They also ensure that items are securely held in place during packaging operations, particularly in automated systems.
  • Automotive and Aerospace: Toggle clamps are essential in the fabrication of automotive and aerospace parts, ensuring precise and stable clamping during various machining and assembly processes. They are also used in repair shops to hold parts securely during maintenance and repair work.



Find the Best Clamps for Your Application at Carr Lane Mfg.

Carr Lane Mfg. offers a wide range of clamping solutions for all applications and industries, ensuring the security and precision of your operations. Our extensive selection of toggle clamps can meet almost any need, and our experts can help you find the best solution for your unique requirements.

To find the best workholding solution for your operation, explore our product catalog and discuss your needs with a Carr Lane Mfg. expert today.
