Single-Acting vs. Double-Acting Clamps

Overview

Hydraulic clamps are available in two fundamental configurations: single-acting and double-acting. The distinction lies in how the clamp returns to its open position after the clamping cycle completes.

In a single-acting clamp, hydraulic pressure drives the piston in one direction to generate clamping force. When pressure is released, an internal spring returns the piston to its starting position. The spring side of the piston operates in an air-filled chamber that must breathe as the piston moves.

In a double-acting clamp, hydraulic pressure controls piston movement in both directions. Applying pressure to one port drives the piston forward to clamp; applying pressure to the opposite port drives the piston back to release. There is no spring and no air chamber.

Comparison

When Single-Acting Clamps Are Appropriate

Single-acting clamps work well for most standard workholding applications. They require only one hydraulic line per clamp, which simplifies plumbing and reduces installation cost. Control is straightforward: pressurize to clamp, vent to release.

For fixtures operating in dry environments with reasonable cycle times, single-acting clamps provide reliable performance at lower system cost. Most shops building their first hydraulic fixtures start with single-acting components and achieve excellent results.

When Double-Acting Clamps Are Required

Certain operating conditions favor or require double-acting clamps. The additional complexity and cost are justified when the application demands it.

Flood Coolant Environments

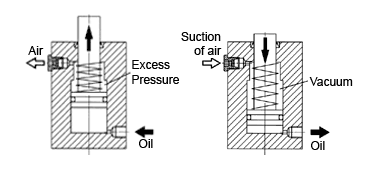

Single-acting clamps contain an internal air chamber on the spring side of the piston. As the piston moves, this chamber must exhale and inhale air through a filtered vent. In flood coolant applications, cutting fluid can be drawn into the air chamber during the return stroke, eventually contaminating seals and springs.

Double-acting clamps eliminate this risk entirely. Both sides of the piston contain hydraulic fluid, so there is no air exchange and no path for coolant infiltration. For machining centers running aggressive flood coolant, double-acting clamps provide longer service life and more reliable operation.

An alternative is to use single-acting clamps with remote vent lines routed outside the coolant zone, but switching to double-acting clamps is often simpler.

Automated Loading Systems

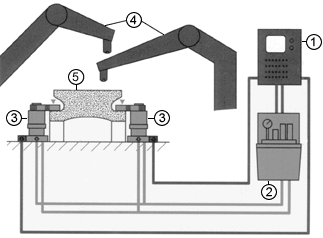

When clamps must coordinate with robotic loaders, pallet changers, or other automated material handling, double-acting clamps provide better control. Hydraulic pressure on both ports allows precise timing of clamp and release sequences.

Pressure switches can monitor both the clamp and release circuits, providing positive confirmation of clamp status to the machine control. This feedback enables reliable interlocks that prevent spindle start until clamping is confirmed, and prevent part release until the spindle has stopped and the loader is in position.

Heavy or Extended Clamp Arms

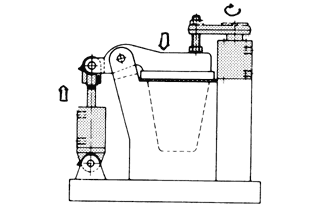

Standard spring return forces are sized for typical clamp arm weights and operating conditions. When swing clamps carry extended arms, heavy contact pads, or other added mass, the spring may not provide sufficient force for reliable retraction.

Double-acting clamps apply full hydraulic force in both directions, easily handling heavy linkages regardless of arm configuration. For custom clamp arm designs, double-acting operation eliminates uncertainty about return performance.

Large Fixtures with Long Fluid Lines

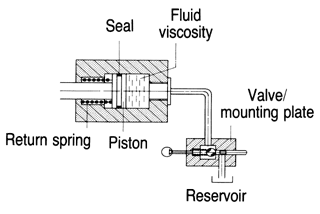

Spring return speed depends on how quickly fluid can flow out of the clamp cylinder and back to the reservoir. Several factors can slow this flow and extend return time:

• Long tubing runs between the clamp and control valve create pressure drop
• Small-diameter tubing or hose restricts flow
• Cold hydraulic fluid has higher viscosity and flows more slowly
• Piston seals that have been compressed under load for extended periods may stick momentarily

In large fixtures where clamps are located far from the power unit, these effects compound. Double-acting clamps overcome flow restrictions with hydraulic pressure rather than relying on spring force alone, ensuring consistent return times regardless of line length or fluid temperature.

Selection Summary

Start with single-acting clamps for straightforward applications in controlled environments. The simpler plumbing and lower cost make them the practical choice for most fixtures.

Specify double-acting clamps when the application involves flood coolant, automated sequences requiring positive feedback, heavy clamp arms, or long hydraulic lines. The additional investment in plumbing and controls pays for itself through improved reliability in demanding production environments.
