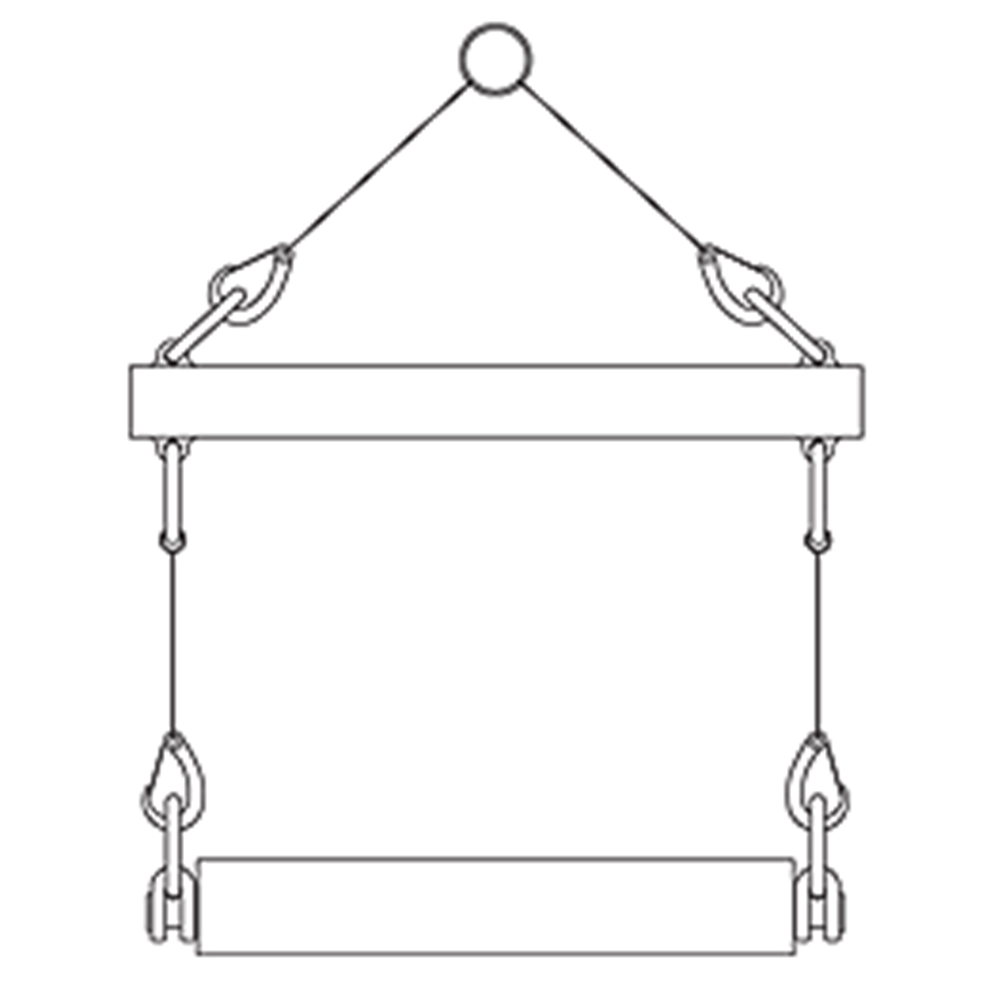

Heavy-Duty® Side-Pull Hoist Rings (D Ring)

Hoist Rings

Inch
QUANTITY PART NO. LOAD
RATING
(lbs)
A
THREAD
B C D E F G H K
DIA
L M1 M2 N O P INSTALLATION
TORQUE
(ft-lbs)
CL-37305-SPHR 800 5/16-18 .88 1.33 .50 .48 5.12 1.44 3.88 2.19 .23 3.18 3.43 1.25 5.48 4.61 7
CL-37310-SPHR 1000 3/8-16 .88 1.40 .50 .48 5.12 1.44 3.88 2.19 .23 3.12 3.43 1.25 5.48 4.61 12
CL-37315-SPHR 2500 1/2-13 .88 1.52 .50 .98 5.12 1.44 3.88 2.19 .23 2.99 3.43 1.25 5.48 4.61 28
CL-37320-SPHR 4000 5/8-11 .88 1.65 .50 .98 5.12 1.44 3.88 2.19 .23 2.87 3.43 1.25 5.48 4.61 60
CL-37325-SPHR 5000 3/4-10 .88 1.77 .50 1.23 5.12 1.44 3.88 2.19 .23 2.74 3.43 1.25 5.48 4.61 100
CL-37330-SPHR 7000 3/4-10 1.25 2.22 .75 1.28 6.88 1.75 5.00 3.13 .31 3.76 4.34 1.62 7.40 6.15 100
CL-37335-SPHR 8000 7/8-9 1.25 2.35 .75 1.28 6.88 1.75 5.00 3.13 .31 3.63 4.34 1.62 7.40 6.15 160
CL-37340-SPHR 10000 1"-8 1.25 2.47 .75 1.53 6.88 1.75 5.00 3.13 .31 3.51 4.34 1.62 7.40 6.15 230
Metric
QUANTITY PART NO. LOAD
RATING
(kg)
A
THREAD
THREAD
PITCH
(mm)
B
(mm)
C
(mm)
D
(mm)
E
(mm)
F
(mm)
G
(mm)
H
(mm)
K
DIA
(mm)
L
(mm)
M1
(mm)
M2
(mm)
N
(mm)
O
(mm)
P
(mm)
INSTALLATION
TORQUE
(N⋅m)
CLM-37805-SPHR 400 M8 1.25 22 34 13 14 130 37 99 56 6 81 87 32 139 117 9.5
CLM-37810-SPHR 450 M10 1.5 22 36 13 24 130 37 99 56 6 79 87 32 139 117 16
CLM-37815-SPHR 1050 M12 1.75 22 38 13 39 130 37 99 56 6 77 87 32 139 117 37
CLM-37820-SPHR 1900 M16 2 22 42 13 39 130 37 99 56 6 73 87 32 139 117 80
CLM-37825-SPHR 2200 M20 2.5 22 46 13 39 130 37 99 56 6 69 87 32 139 117 135
CLM-37830-SPHR 3000 M20 2.5 32 57 19 38 175 44 127 79 8 94 110 41 188 156 135
CLM-37835-SPHR 4200 M24 3 32 61 19 43 175 44 127 79 8 90 110 41 188 156 311
