Forged Swivel Hoist Ring (Long Arm)

Hoist Rings

Save to My Project

What is this?

Product Information

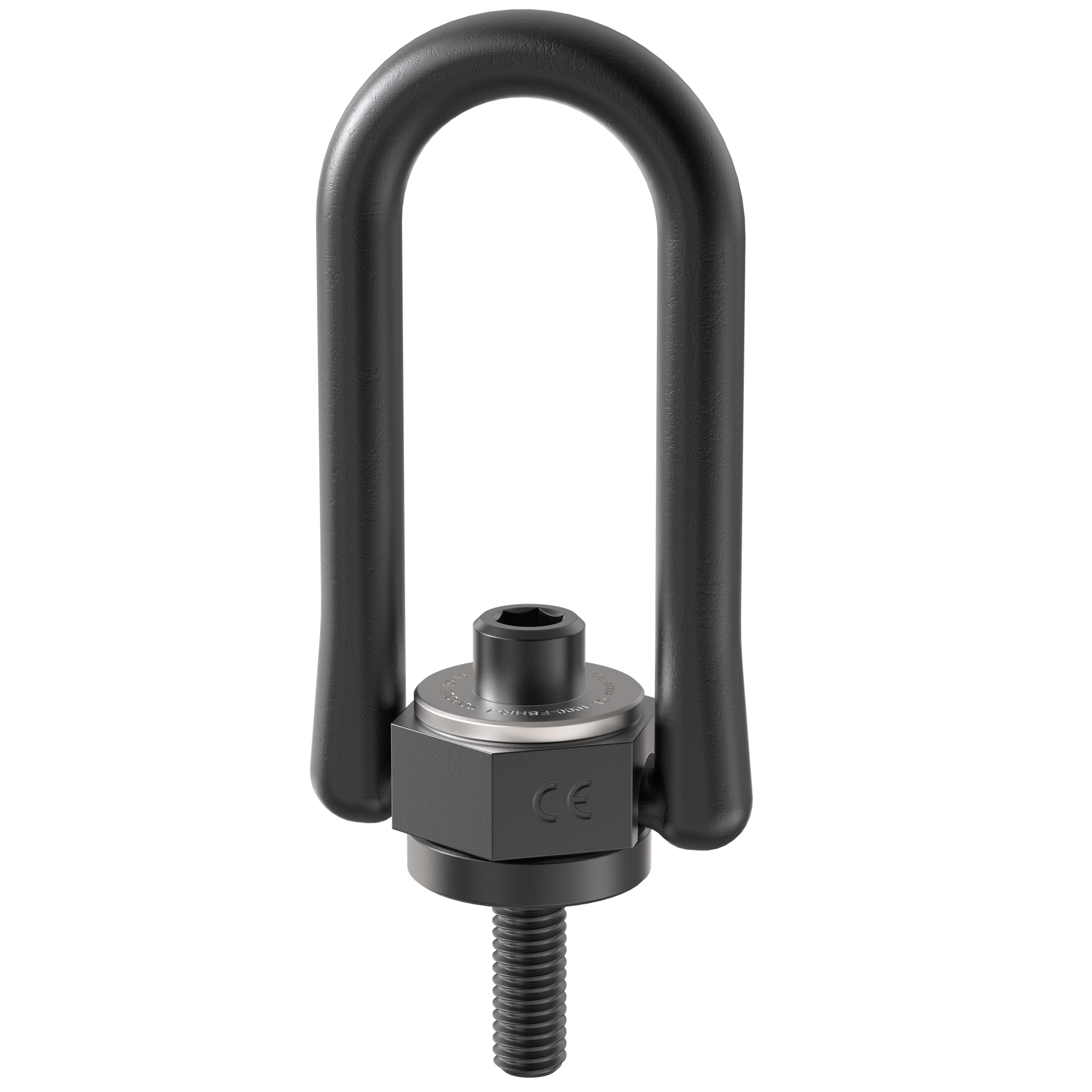

A long-ring version of our Forged Swivel Hoist Rings features a forged lifting ring and simpler construction for easy disassembly. Swivel Hoist Rings pivot 180° and swivel 360° simultaneously to allow lifting from any direction. Available with inch or metric threads in load capacities up to 10,000 lbs, many with a choice of bolt length. Complies with ASME B30.26, CEN/TC 168 Reference EN 1677-1: 2000 Part 1 and 2006/42/EC.

Technical Information

Complies with ASME B30.26

Application Information

Forged Swivel Hoist Rings can be easily disassembled. One benefit of this is easier cleaning. Disassembly also allows adding a lifting hook, as shown in this example, for use when lifting with a sling.

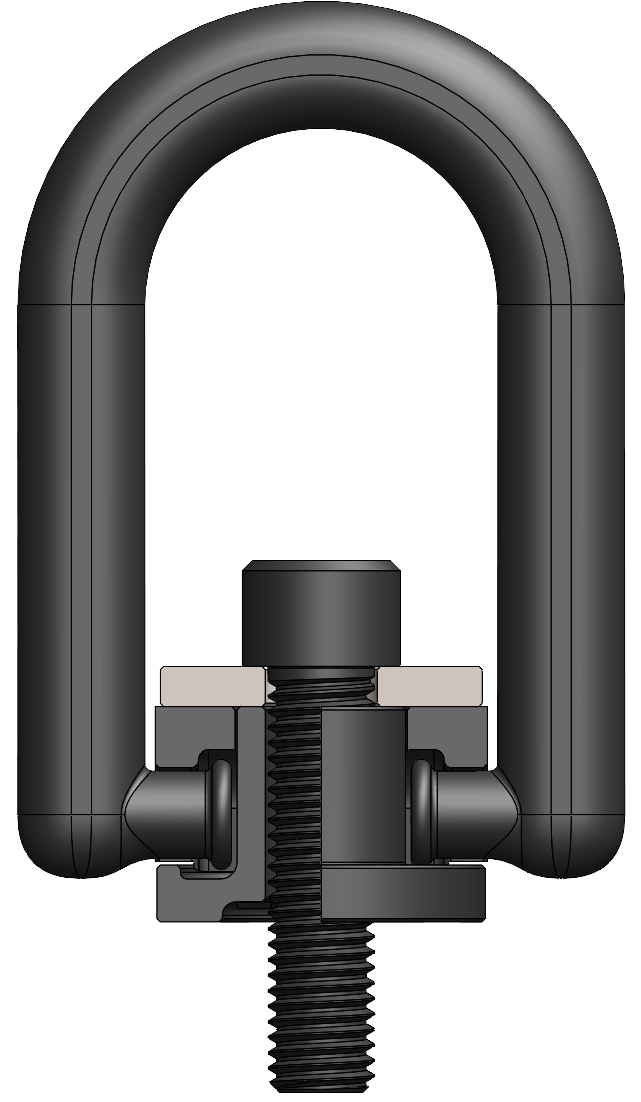

Internal View

Installation

Fasten using the installation torque specified in the dimension table. Always install so that the hoist ring can pivot and swivel freely. Some hoist rings are available with a choice of bolt lengths. Use the shortest bolt length only for steel plates, the other lengths for weaker materials and for through-hole mounting with a washer and nut.

Material

ITEM	MATERIAL	HEAT TREAT	FINISH
Body Ring Bushing	4140 Steel	Heat Treated	Black Oxide
Washer	17-4PH	H900	Passivated

Click here for detailed material and finish specifications.

California residents click here for Prop 65 information.

Forged Swivel Hoist Ring (Long Arm)

Inch

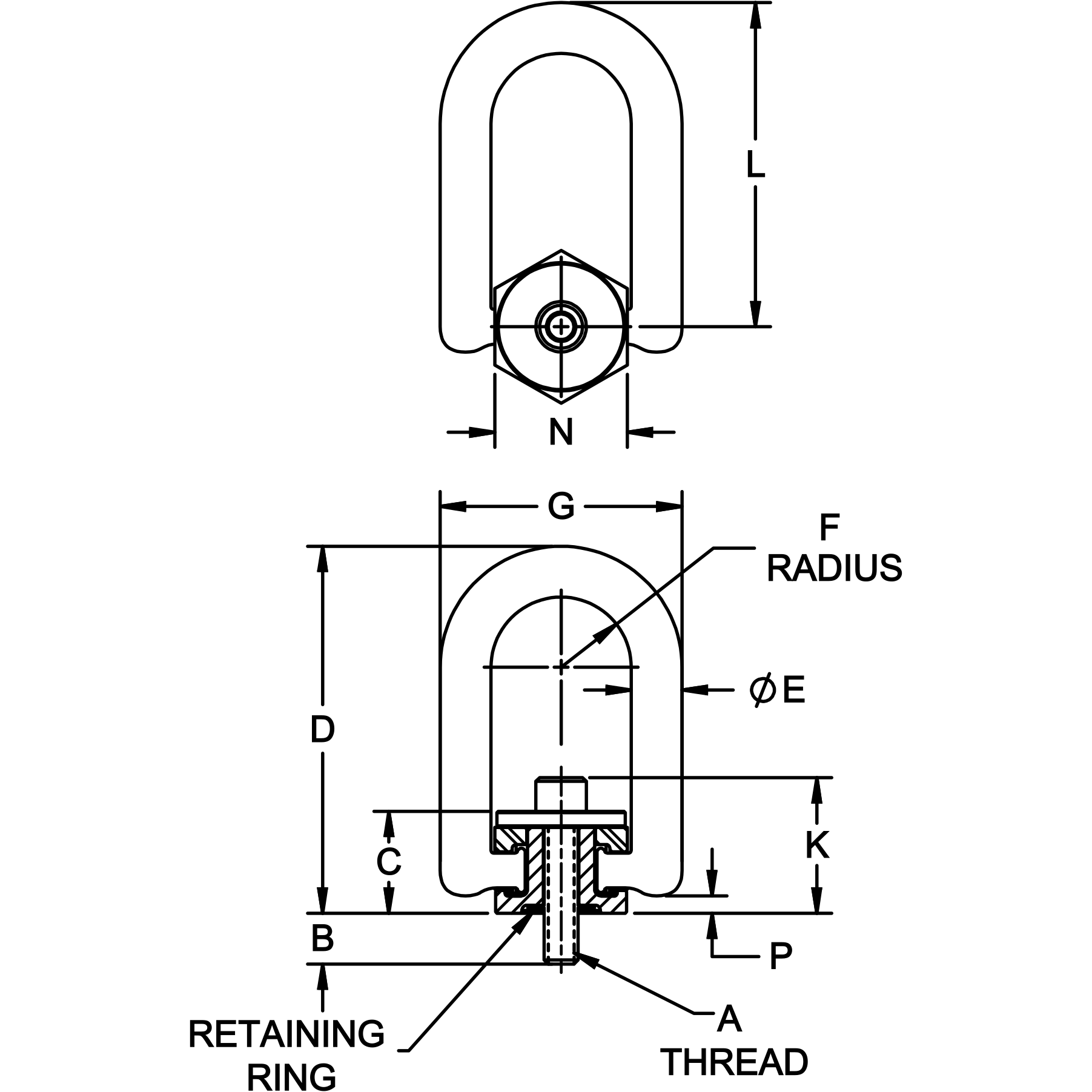

QUANTITY	PART NO.	LOAD RATING (TON)	A THREAD	B	C	D	E DIA	F	G	K	L	N	P	INSTALLATION TORQUE (ft-lbs)
	CL-550-FSHR-1-LR	.275	1/4-20	.26	.94	4.31	.42	.64	2.26	1.19	3.89	1.22	.17	5
	CL-800-FSHR-1-LR	.4	5/16-18	.56	.94	4.31	.42	.64	2.26	1.25	3.89	1.22	.17	7
	CL-800-FSHR-2-LR	.4	5/16-18	1.06	.94	4.31	.42	.64	2.26	1.25	3.89	1.22	.17	7
	CL-1000-FSHR-1-LR	.5	3/8-16	.56	.94	4.31	.42	.64	2.26	1.32	3.89	1.22	.17	12
	CL-1000-FSHR-2-LR	.5	3/8-16	1.06	.94	4.31	.42	.64	2.26	1.32	3.89	1.22	.17	12
	CL-2500-FSHR-1-LR	1.25	1/2-13	.75	1.50	4.31	.75	1.04	3.56	2.00	6.33	1.95	.26	28
	CL-2500-FSHR-2-LR	1.25	1/2-13	1.00	1.50	6.96	.75	1.04	3.56	2.00	6.33	1.95	.26	28
	CL-2500-FSHR-3-LR	1.25	1/2-13	1.25	1.50	6.96	.75	1.04	3.56	2.00	6.33	1.95	.26	28
	CL-4000-FSHR-1-LR	2	5/8-11	.75	1.50	6.96	.75	1.04	3.56	2.13	6.33	1.95	.26	60
	CL-4000-FSHR-2-LR	2	5/8-11	1.00	1.50	6.96	.75	1.04	3.56	2.13	6.33	1.95	.26	60
	CL-4000-FSHR-3-LR	2	5/8-11	1.25	1.50	6.96	.75	1.04	3.56	2.13	6.33	1.95	.26	60
	CL-5000-FSHR-1-LR	2.5	3/4-10	1.00	1.50	6.96	.75	1.04	3.56	2.25	6.33	1.95	.26	100
	CL-5000-FSHR-2-LR	2.5	3/4-10	1.50	1.50	6.96	.75	1.04	3.56	2.25	6.33	1.95	.26	100
	CL-7000-FSHR-1-LR	3.5	3/4-10	.95	2.05	9.05	1.13	1.51	5.51	2.92	8.27	2.95	.23	100
	CL-7000-FSHR-2-LR	3.5	3/4-10	1.20	2.05	9.05	1.13	1.51	5.51	2.92	8.27	2.95	.23	100
	CL-7000-FSHR-3-LR	3.5	3/4-10	1.45	2.05	9.05	1.13	1.51	5.51	2.92	8.27	2.95	.23	100
	CL-8000-FSHR-1-LR	4	7/8-9	.95	2.05	9.05	1.13	1.51	5.51	3.05	8.27	2.95	.23	160
	CL-8000-FSHR-2-LR	4	7/8-9	1.20	2.05	9.05	1.13	1.51	5.51	3.05	8.27	2.95	.23	160
	CL-10000-FSHR-1-LR	5	1"-8	1.20	2.05	9.05	1.13	1.51	5.51	3.17	8.27	2.95	.23	230
	CL-10000-FSHR-2-LR	5	1"-8	1.45	2.05	9.05	1.13	1.51	5.51	3.17	8.27	2.95	.23	230
	CL-10000-FSHR-3-LR	5	1"-8	2.20	2.05	9.05	1.13	1.51	5.51	3.17	8.27	2.95	.23	230

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
Quick Ship Available

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product

Metric

QUANTITY	PART NO.	LOAD RATING (TONNE)	A THREAD	B mm	C mm	D mm	E DIA mm	F mm	G mm	K mm	L mm	N mm	P mm	INSTALLATION TORQUE (Nm)
	CLM-400-FSHR-1-LR	.4	M8x1.25	16	23.9	109.6	10.7	16.3	57.5	31.7	98.8	31	4.6	9.5
	CLM-400-FSHR-2-LR	.4	M8x1.25	21	23.9	109.6	10.7	16.3	57.5	31.7	98.8	31	4.6	9.5
	CLM-450-FSHR-1-LR	.45	M10x1.5	16	23.9	109.6	10.7	16.3	57.5	33.7	98.8	31	4.6	16
	CLM-450-FSHR-2-LR	.45	M10x1.5	26	23.9	109.6	10.7	16.3	57.5	33.7	98.8	31	4.6	16
	CLM-1050-FSHR-1-LR	1.05	M12x1.75	25	38.1	176.7	19	26.3	90.5	49.9	160.7	49.5	6.5	37
	CLM-1050-FSHR-2-LR	1.05	M12x1.75	32	38.1	176.7	19	26.3	90.5	49.9	160.7	49.5	6.5	37
	CLM-1900-FSHR-1-LR	1.9	M16x2.0	25	38.1	176.7	19	26.3	90.5	53.9	160.7	49.5	6.5	80
	CLM-1900-FSHR-2-LR	1.9	M16x2.0	32	38.1	176.7	19	26.3	90.5	53.9	160.7	49.5	6.5	80
	CLM-2200-FSHR-1-LR	2.2	M20x2.5	25	38.1	176.7	19	26.3	90.5	57.9	160.7	49.5	6.5	135
	CLM-2200-FSHR-1-LR	2.2	M20x2.5	38	38.1	176.7	19	26.3	90.5	57.9	160.7	49.5	6.5	135
	CLM-3000-FSHR-1-LR	3	M20x2.5	28	52.1	229.9	28.6	38.3	139.9	71.8	210.0	75	5.9	135
	CLM-4200-FSHR-1-LR	4.2	M24x3.0	38	52.1	229.9	28.6	38.3	139.9	75.8	210.0	75	5.9	310
	CLM-4200-FSHR-2-LR	4.2	M24x3.0	38	52.1	229.9	28.6	38.3	139.9	75.8	210.0	75	5.9	310
