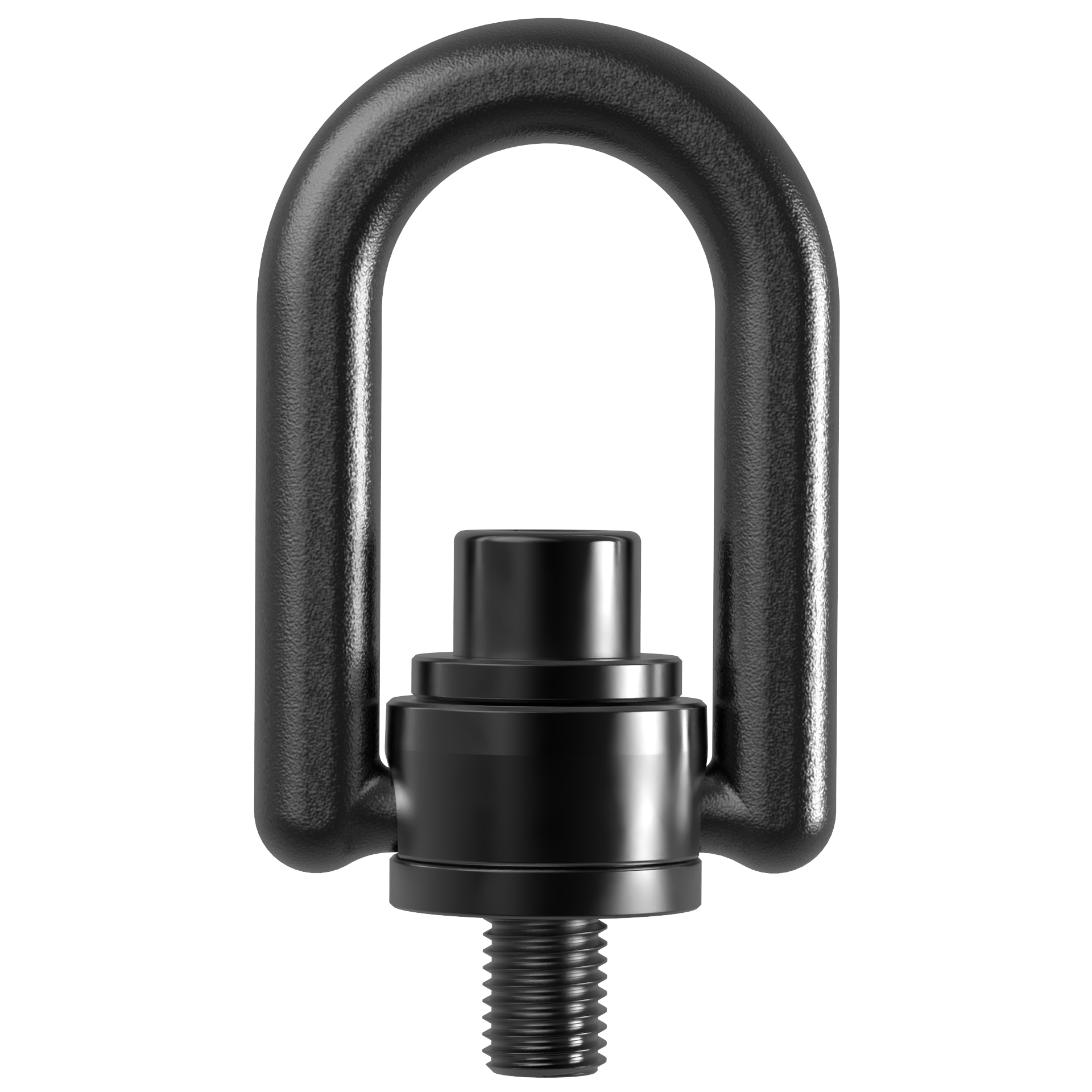

Heavy-Duty® Swivel Hoist Rings (Standard Ring)

Hoist Rings

Inch
QUANTITY PART NO. LOAD
RATING
(lbs)
A
THREAD
B C D E
DIA
F G K L N
DIA
P INSTALLATION
TORQUE
(ft-lbs)
CL-33112-SHR 550 1/4-20 .56 .96 3.23 .44 .65 2.29 1.22 2.98 1.25 .15 5
CL-33212-SHR 800 5/16-18 .56 .96 3.23 .44 .65 2.29 1.28 2.98 1.25 .15 7
CL-33214-SHR 800 5/16-18 1.06 .96 3.23 .44 .65 2.29 1.28 2.98 1.25 .15 7
CL-33312-SHR 1000 3/8-16 .56 .96 3.23 .44 .65 2.29 1.34 2.98 1.25 .15 12
CL-33314-SHR 1000 3/8-16 1.06 .96 3.23 .44 .65 2.29 1.34 2.98 1.25 .15 12
CL-33316-SHR 2250 1/2-13 1.06 .96 3.23 .44 .65 2.29 1.34 2.98 1.25 .15 25
CL-33512-SHR 2500 1/2-13 .75 1.50 5.31 .75 1.00 3.50 2.0 4.75 1.89 .17 28
CL-33515-SHR 2500 1/2-13 1.00 1.50 5.31 .75 1.00 3.50 2.0 4.75 1.89 .17 28
CL-33516-SHR 2500 1/2-13 1.25 1.50 5.31 .75 1.00 3.50 2.0 4.75 1.89 .17 28
CL-33612-SHR 4000 5/8-11 .75 1.50 5.31 .75 1.00 3.50 2.12 4.75 1.89 .17 60
CL-33614-SHR 4000 5/8-11 1.00 1.50 5.31 .75 1.00 3.50 2.12 4.75 1.89 .17 60
CL-33615-SHR 4000 5/8-11 1.25 1.50 5.31 .75 1.00 3.50 2.12 4.75 1.89 .17 60
CL-33714-SHR 5000 3/4-10 1.00 1.50 5.31 .75 1.00 3.50 2.25 4.75 1.89 .17 100
CL-33716-SHR 5000 3/4-10 1.50 1.50 5.31 .75 1.00 3.50 2.25 4.75 1.89 .17 100
CL-33108-SHR 7000 3/4-10 .95 2.05 7.37 1.00 1.40 5.10 2.80 6.62 2.81 .18 100
CL-33102-SHR 7000 3/4-10 1.20 2.05 7.37 1.00 1.40 5.10 2.80 6.62 2.81 .18 100
CL-33103-SHR 7000 3/4-10 1.45 2.05 7.37 1.00 1.40 5.10 2.80 6.62 2.81 .18 100
CL-33104-SHR 8000 7/8-9 .95 2.05 7.37 1.00 1.40 5.10 2.93 6.62 2.81 .18 160
CL-33101-SHR 8000 7/8-9 1.20 2.05 7.37 1.00 1.40 5.10 2.93 6.62 2.81 .18 160
CL-33106-SHR 10000 1"-8 1.20 2.05 7.37 1.00 1.40 5.10 3.05 6.62 2.81 .18 230
CL-33105-SHR 10000 1"-8 1.45 2.05 7.37 1.00 1.40 5.10 3.05 6.62 2.81 .18 230
CL-33107-SHR 10000 1"-8 2.20 2.05 7.37 1.00 1.40 5.10 3.05 6.62 2.81 .18 230
CL-33402-SHR 15000 1-1/4"-7 1.88 2.87 9.22 1.25 2.00 6.75 4.23 8.12 3.88 .32 470
CL-33401-SHR 15000 1-1/4"-7 2.63 2.87 9.22 1.25 2.00 6.75 4.23 8.12 3.88 .32 470
CL-33420-SHR 20000 1-3/8"-6 2.63 2.87 9.22 1.25 2.00 6.75 4.35 8.12 3.88 .32 670
CL-33424-SHR 24000 1-1/2"-6 2.63 2.87 9.22 1.25 2.00 6.75 4.48 8.12 3.88 .32 800
CL-33427-SHR 30000 2"-4-1/2 2.96 2.87 9.22 1.25 2.00 6.75 4.48 8.12 3.88 .32 1100
CL-33432-SHR 30000 2"-8 2.96 2.87 9.22 1.25 2.00 6.75 4.48 8.12 3.88 .32 1100
Metric
QUANTITY PART NO. LOAD
RATING
(kg)
A
THREAD
THREAD
PITCH
(mm)
B
(mm)
C
(mm)
D
(mm)
E
DIA
(mm)
F
(mm)
G
(mm)
K
(mm)
L
(mm)
N
DIA
(mm)
P
(mm)
INSTALLATION
TORQUE
(Nm)
CLM-34212-SHR 400 M8 1.25 16 24.5 82 11 16.5 58 32.5 76 32 4 9.5
CLM-34214-SHR 400 M8 1.25 21 24.5 82 11 16.5 58 32.5 76 32 4 9.5
CLM-34312-SHR 450 M10 1.5 16 24.5 82 11 16.5 58 34.5 76 32 4 16
CLM-34314-SHR 450 M10 1.5 26 24.5 82 11 16.5 58 34.5 76 32 4 16
CLM-34515-SHR 1050 M12 1.75 25 38 135 19 25.5 89 51 121 48 4.4 37
CLM-34516-SHR 1050 M12 1.75 32 38 135 19 25.5 89 51 121 48 4.4 37
CLM-34614-SHR 1900 M16 2 25 38 135 19 25.5 89 54 121 48 4.4 80
CLM-34615-SHR 1900 M16 2 32 38 135 19 25.5 89 54 121 48 4.4 80
CLM-34714-SHR 2200 M20 2.5 25 38 135 19 25.5 89 57 121 48 4.4 135
CLM-34716-SHR 2200 M20 2.5 38 38 135 19 25.5 89 57 121 48 4.4 135
CLM-34101-SHR 3000 M20 2.5 28 52 187 25.5 35.5 129.5 71.5 168 71.5 4.6 135
CLM-34102-SHR 4200 M24 3 28 52 187 25.5 35.5 129.5 76 168 71.5 4.6 310
CLM-34103-SHR 4200 M24 3 38 52 187 25.5 35.5 129.5 76 168 71.5 4.6 310
CLM-34105-SHR 4500 M30 3.5 38 52 187 25.5 35.5 129.5 82 168 71.5 4.6 310
CLM-34107-SHR 4500 M30 3.5 48 52 187 25.5 35.5 129.5 82 168 71.5 4.6 310
CLM-34401-SHR 7000 M30 3.5 67 73 234 32 51 171.5 107.5 206 98.5 8.2 640
CLM-34402-SHR 11000 M36 4 67 73 234 32 51 171.5 114 206 98.5 8.2 1090
CLM-34403-SHR 12500 M42 4.5 80 73 234 32 51 171.5 114 206 98.5 8.2 1090
CLM-34404-SHR 13500 M48 5 80 73 234 32 51 171.5 114 206 98.5 8.2 1090
Replacement Bolt with Retaining Ring (Inch)
QUANTITY PART NO. FOR HOIST RING
CL-33152-SHRB CL-33112-SHR
CL-33252-SHRB CL-33212-SHR
CL-33254-SHRB CL-33214-SHR
CL-33352-SHRB CL-33312-SHR
CL-33354-SHRB CL-33314-SHR
CL-33316-SHR
CL-33554-SHRB CL-33512-SHR
CL-33555-SHRB CL-33515-SHR
CL-33556-SHRB CL-33516-SHR
CL-33653-SHRB CL-33612-SHR
CL-33654-SHRB CL-33614-SHR
CL-33655-SHRB CL-33615-SHR
CL-33754-SHRB CL-33714-SHR
CL-33756-SHRB CL-33716-SHR
CL-33119-SHRB CL-33108-SHR
CL-33122-SHRB CL-33102-SHR
CL-33123-SHRB CL-33103-SHR
CL-33104-SHR
CL-33121-SHRB CL-33101-SHR
CL-33126-SHRB CL-33106-SHR
CL-33125-SHRB CL-33105-SHR
CL-33127-SHRB CL-33107-SHR
CL-33419-SHRB CL-33402-SHR
CL-33421-SHRB CL-33401-SHR
CL-33429-SHRB CL-33420-SHR
CL-33422-SHRB CL-33424-SHR
CL-33427-SHR
CL-33432-SHR
Replacement Bolt with Retaining Ring (Metric)
QUANTITY PART NO. FOR HOIST RING
CLM-34252-SHRB CLM-34212-SHR
CLM-34254-SHRB CLM-34214-SHR
CLM-34352-SHRB CLM-34312-SHR
CLM-34354-SHRB CLM-34314-SHR
CLM-34555-SHRB CLM-34515-SHR
CLM-34556-SHRB CLM-34516-SHR
CLM-34654-SHRB CLM-34614-SHR
CLM-34655-SHRB CLM-34615-SHR
CLM-34130-SHRB CLM-34714-SHR
CLM-34131-SHRB CLM-34716-SHR
CLM-34120-SHRB CLM-34101-SHR
CLM-34121-SHRB CLM-34102-SHR
CLM-34123-SHRB CLM-34103-SHR
CLM-34126-SHRB CLM-34105-SHR
CLM-34127-SHRB CLM-34107-SHR
CLM-34421-SHRB CLM-34401-SHR
CLM-34422-SHRB CLM-34402-SHR
CLM-24232-SHRB CLM-34403-SHR
CLM-24225-SHRB CLM-34404-SHR
