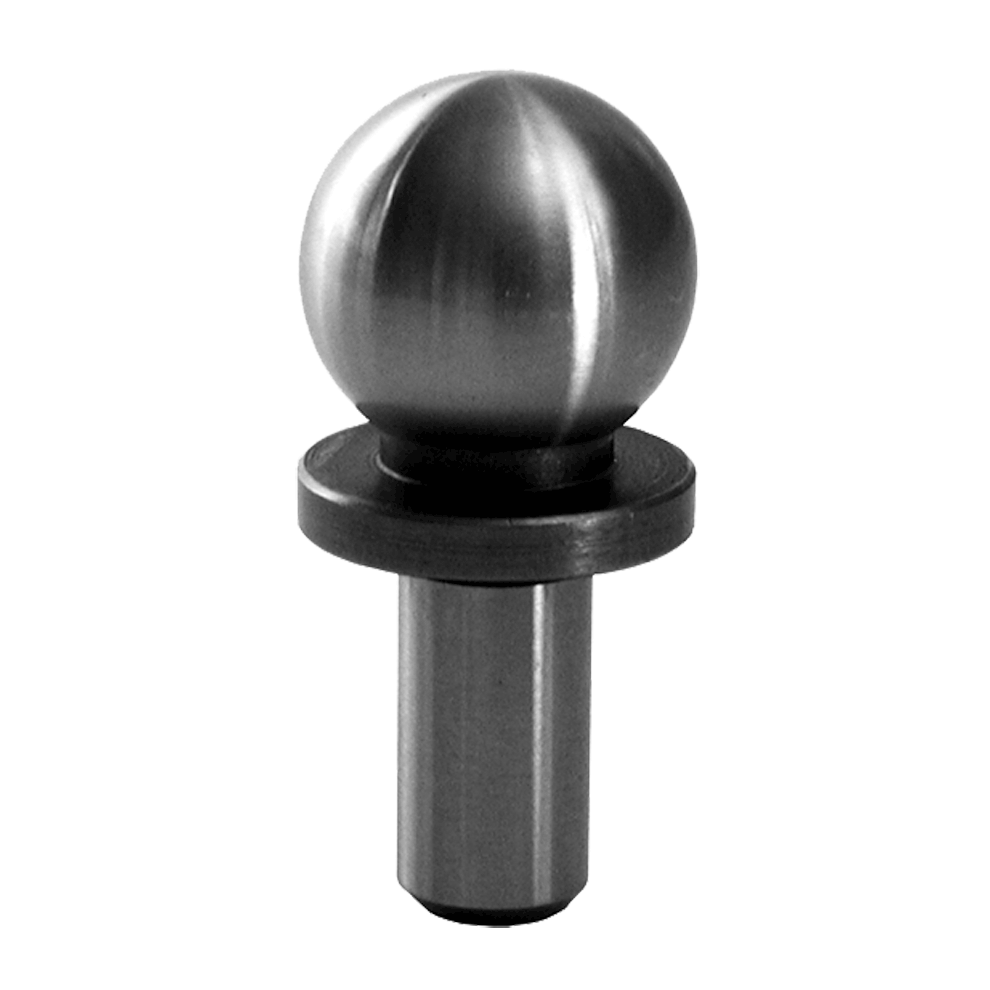

Carr Lane Shoulder Construction Balls are precision tooling balls used to establish an accurate, repeatable reference point for critical inspection, layout, setup, and machining operations. The precision-ground ball provides a known spherical reference, while the integral shoulder establishes a fixed height from the mounting surface. Together, these features allow the construction ball to provide a reference point in three dimensions.
The shoulder design is especially useful when a consistent reference height must be maintained from one setup or measurement to another. Once the construction ball is installed, the shoulder seats against the mounting surface to establish its position along the shank axis, while the precision ball provides a reference for locating and measurement.

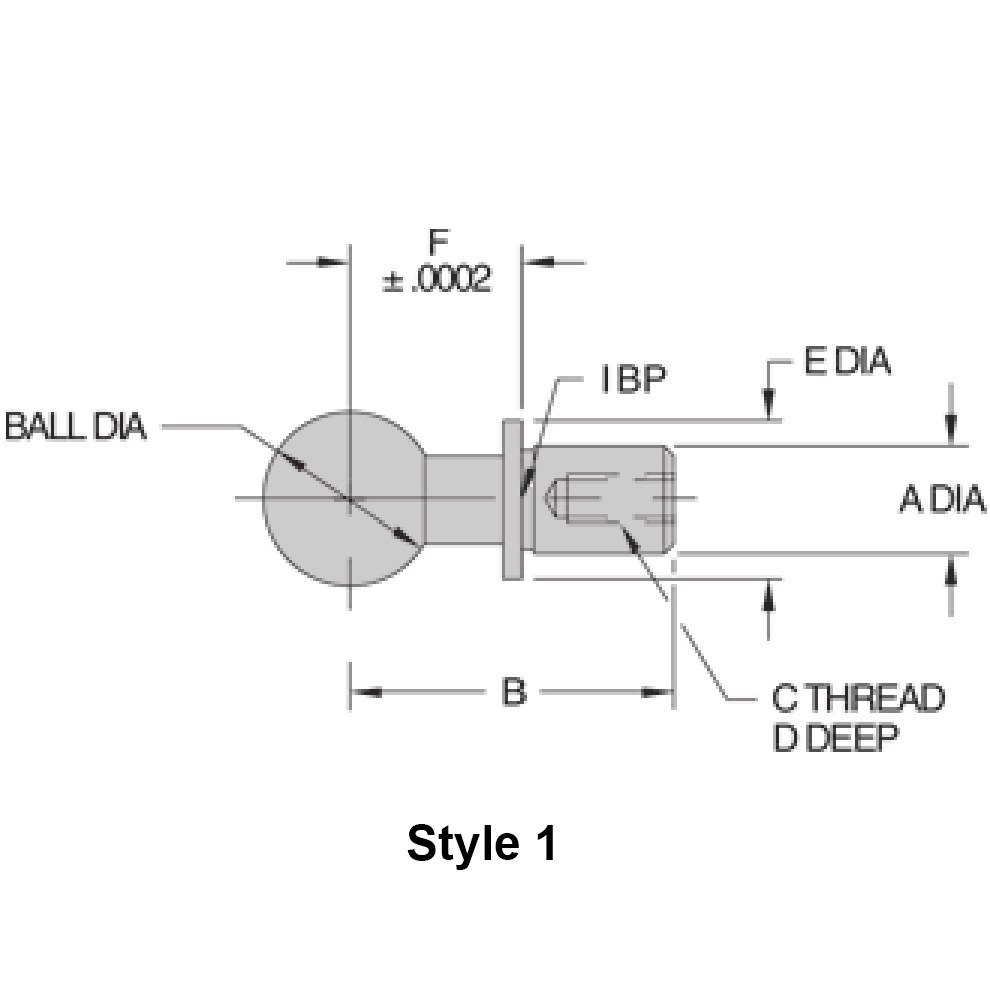

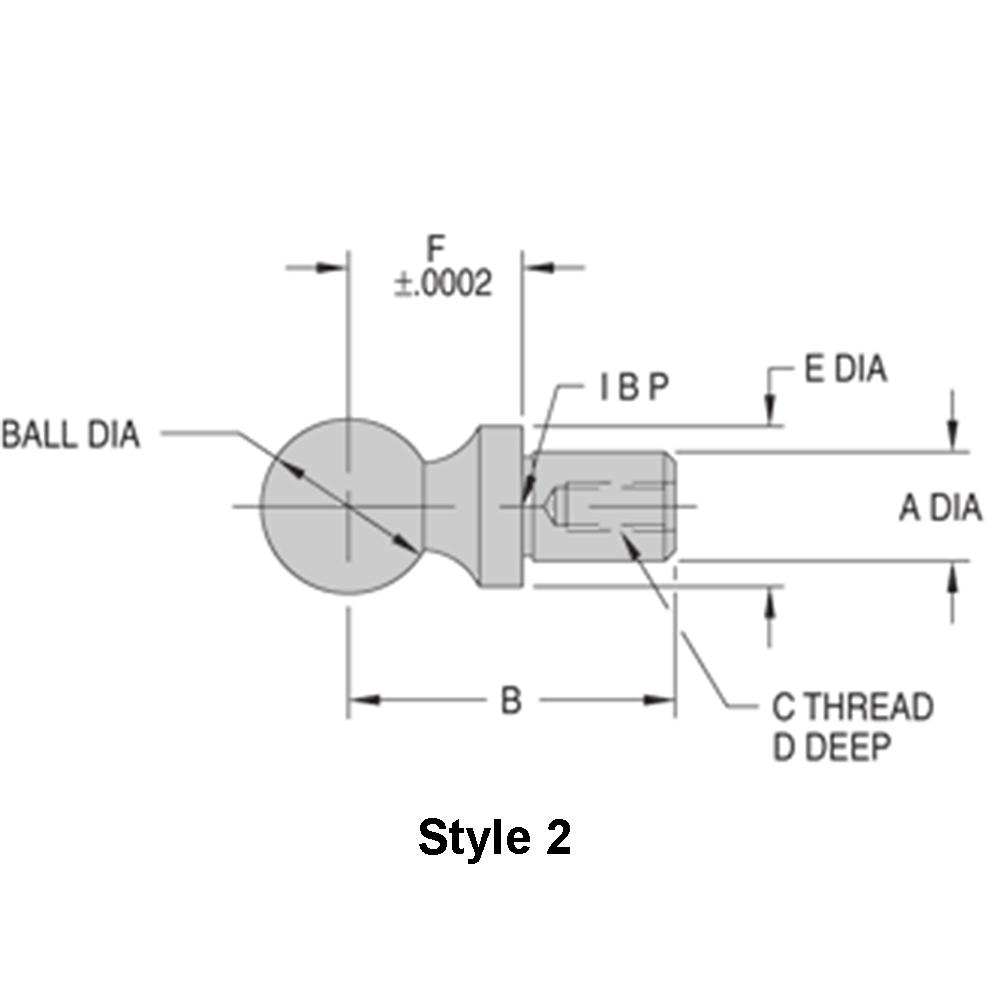

Concentricity between the ball and shank is held to .0002" TIR for precise positioning. Carr Lane offers Shoulder Construction Balls in multiple ball diameters, shank diameters, shank lengths, and mounting configurations to accommodate different tooling, fixture, and inspection requirements.
Shoulder Construction Balls are available in inch and metric sizes and in both hardened steel and stainless steel configurations. Inch ball diameters range from 1/4" to 3/4", while metric sizes include 6 mm, 12 mm, and 20 mm. Available material and dimensional combinations vary by size.
