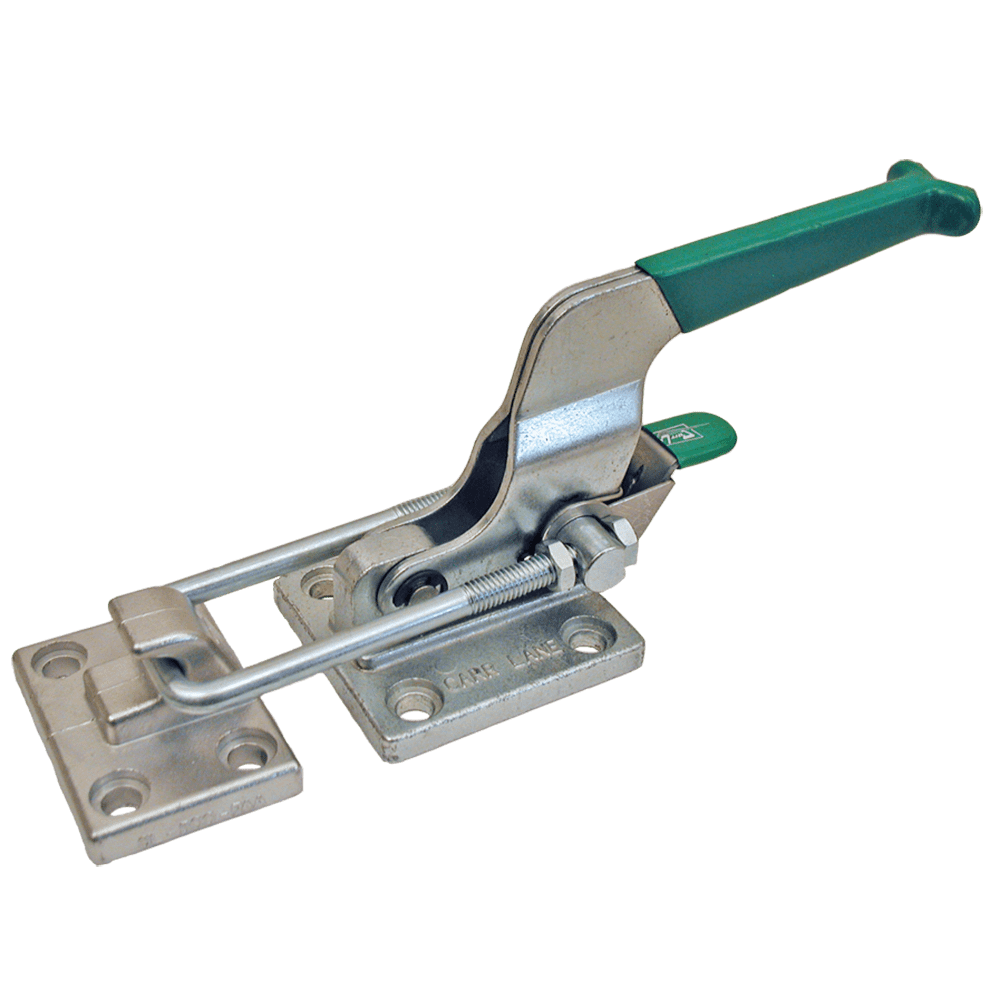

CL-400-LPA with Safety Lock (4000 lbs)

Product Information

CL-400-LPA

Safety-lock version of our CL-400-PA toggle clamp. The integral safety lock automatically engages when the clamp is closed, then remains locked until manually disengaged by pressing the lever before opening. This prevents the clamp from being accidentally opened by bumping the handle.

Heavy-duty latch clamp. Rugged alloy steel base and latch plate provide great strength in a compact overall size. Versatile latch clamp with a threaded U bolt for adjustability. 2-7/16" drawing movement. Threaded U bolt allows a 3/4" adjustment range. Order matching latch plate separately. 4000 lbs holding capacity.

Clamping Action

Design Considerations

To achieve full holding capacity, U-bolt-type latch clamps must be used together with the optional latch plate, or with a suitable custom latch plate of equal width and centerline height.

Accessories

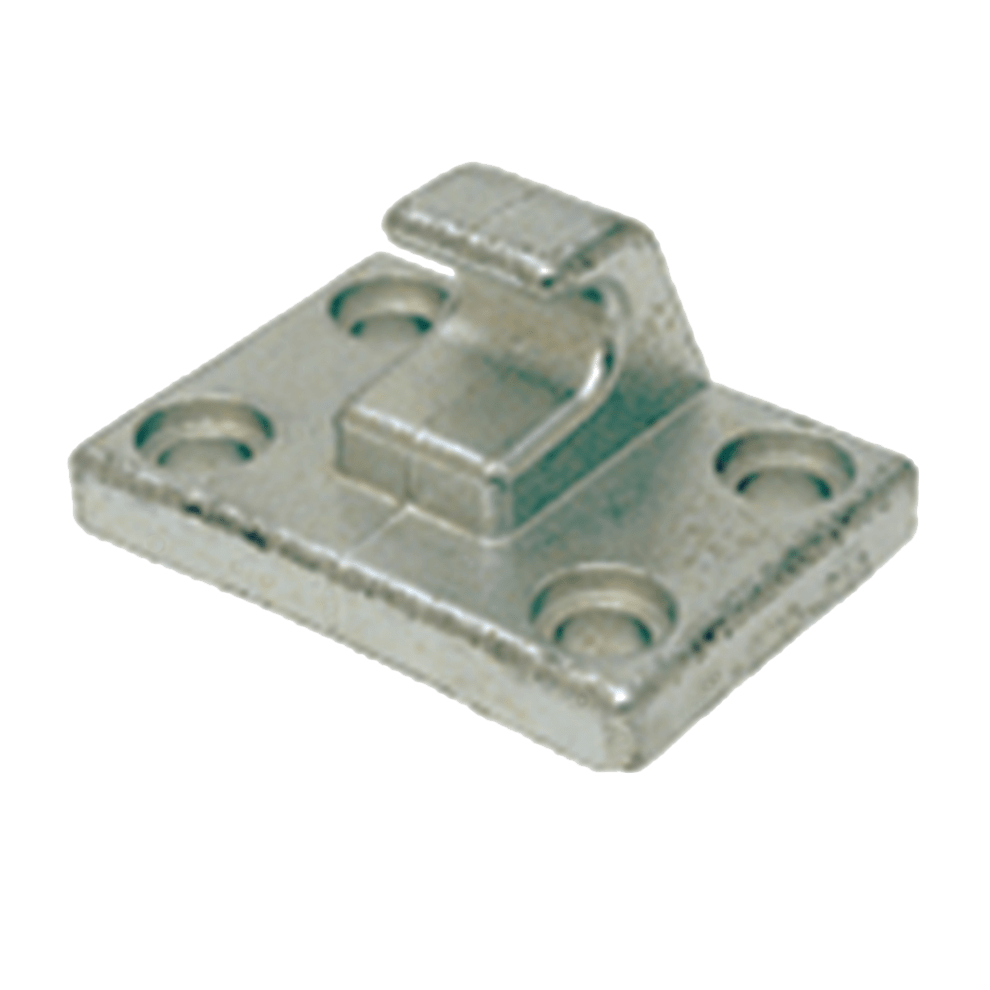

Order matching latch plate separately, CL-500-PAA. For a replacement U Bolt, order CL-400-PA-UBOLT.

Material

ITEM	MATERIAL	HEAT TREAT	FINISH	DFARS	RoHS
Base and Latch Plate	Alloy Steel	-	Zinc Plated Clear Chromate	✔	✔
Handle, U bolt and crosspin	1215, 1008, 1010, and/or 1018 steel	-	Zinc Plated Clear Chromate	✔	✔
Rivets	400-Series Stainless	-	-	✔	✔
Handle	Vinyl	-	-	✔	✔
