ROEMHELD PC 80 5-Axis Vises

Save to My Project

What is this?

Product Information

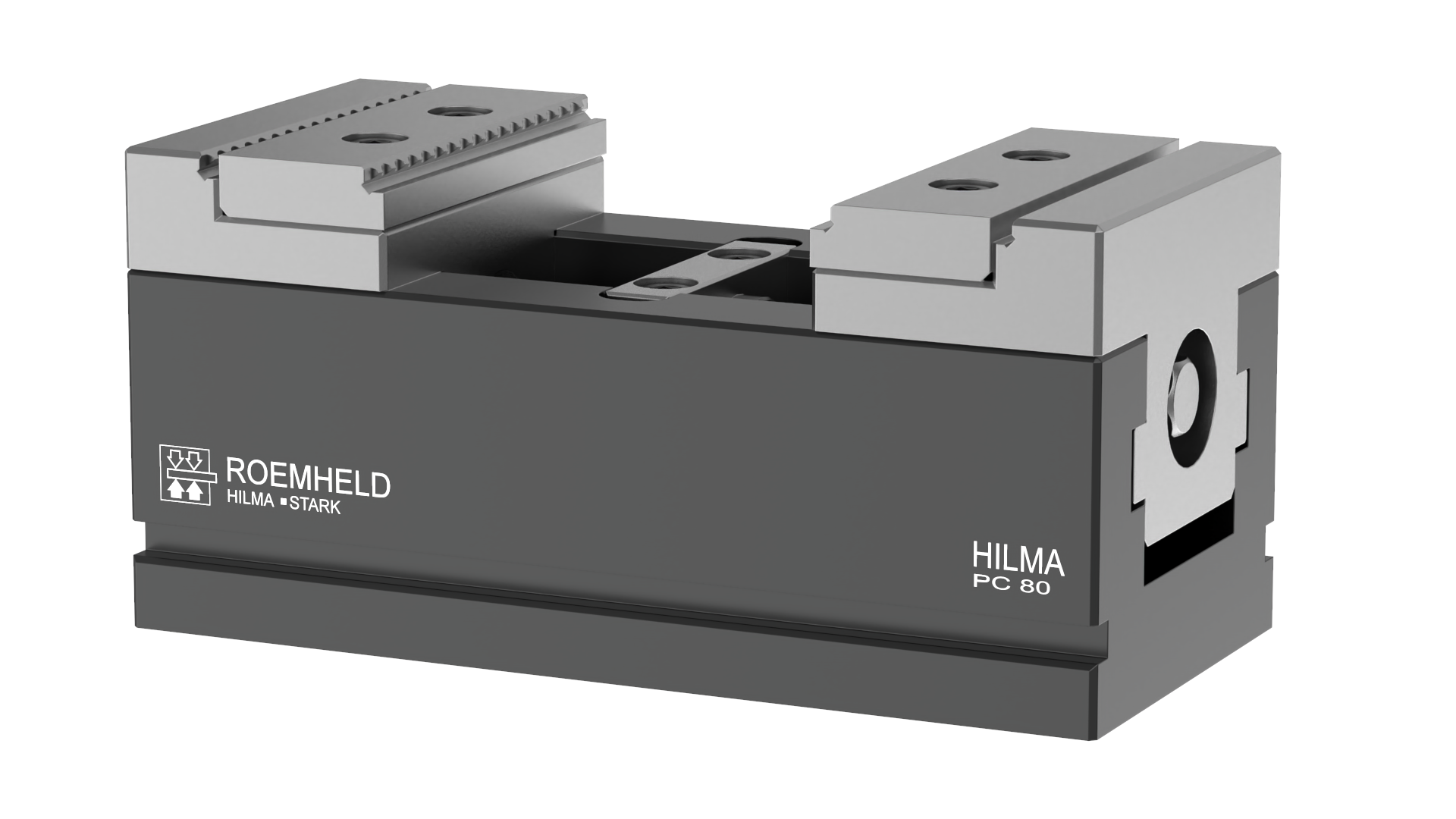

PC80 Clamping system features a simple, compact all-steel design, and includes clamping jaws with a dovetail shaped serrated gripping feature. The all-steel design provides the highest force, most rigid, design in 5-Axis vises. The Jaw assembly is simple to remove ensuring quick and easy cleaning and maintenance. The PC80 features several mounting options including the use of competitor Zero-Point 52mm pins or the use of a Quintus Pull-Down Bolt. The sides of the base include grooves for permanent installation with clamping claws.

View in Catalog Page
Contact Customer Service
Contact Customer Service

Application Information

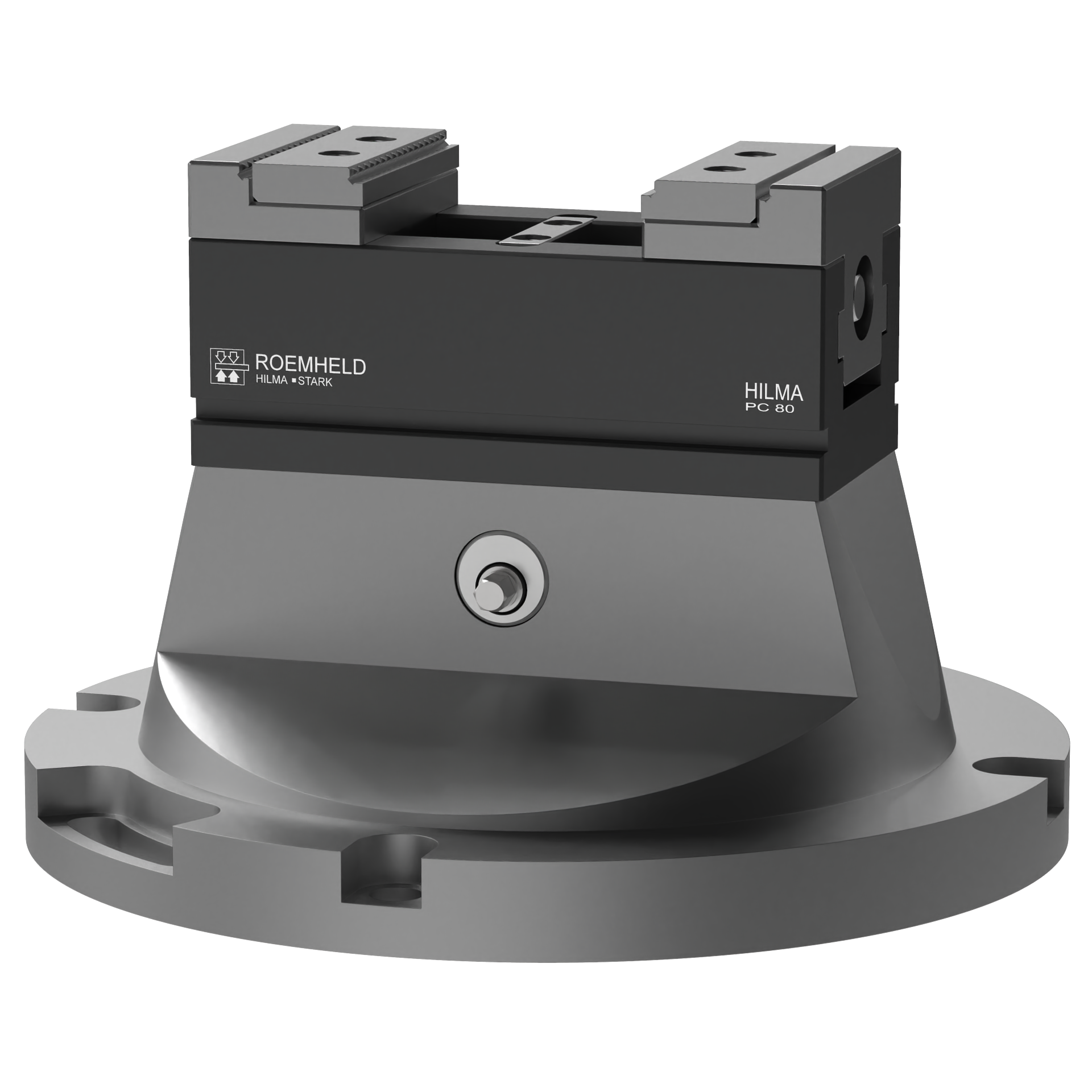

PC 80 Mounted on Quintus Riser

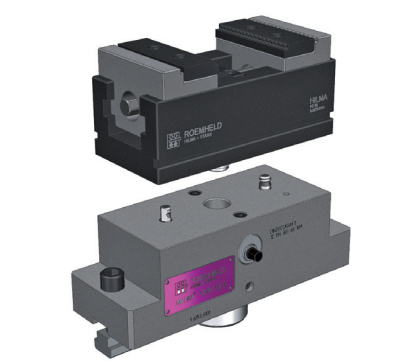

PC 80 on Metric Riser

Videos

Carr Lane Manufacturing PC 80 5 Axis Vise

PC80 Clamping system features a simple, compact all-steel design, and includes clamping jaws with a dovetail shaped serrated gripping feature.

Documents

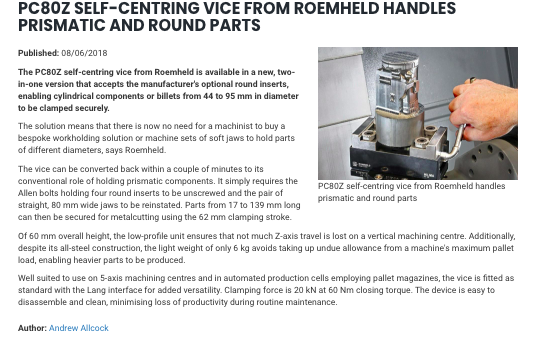

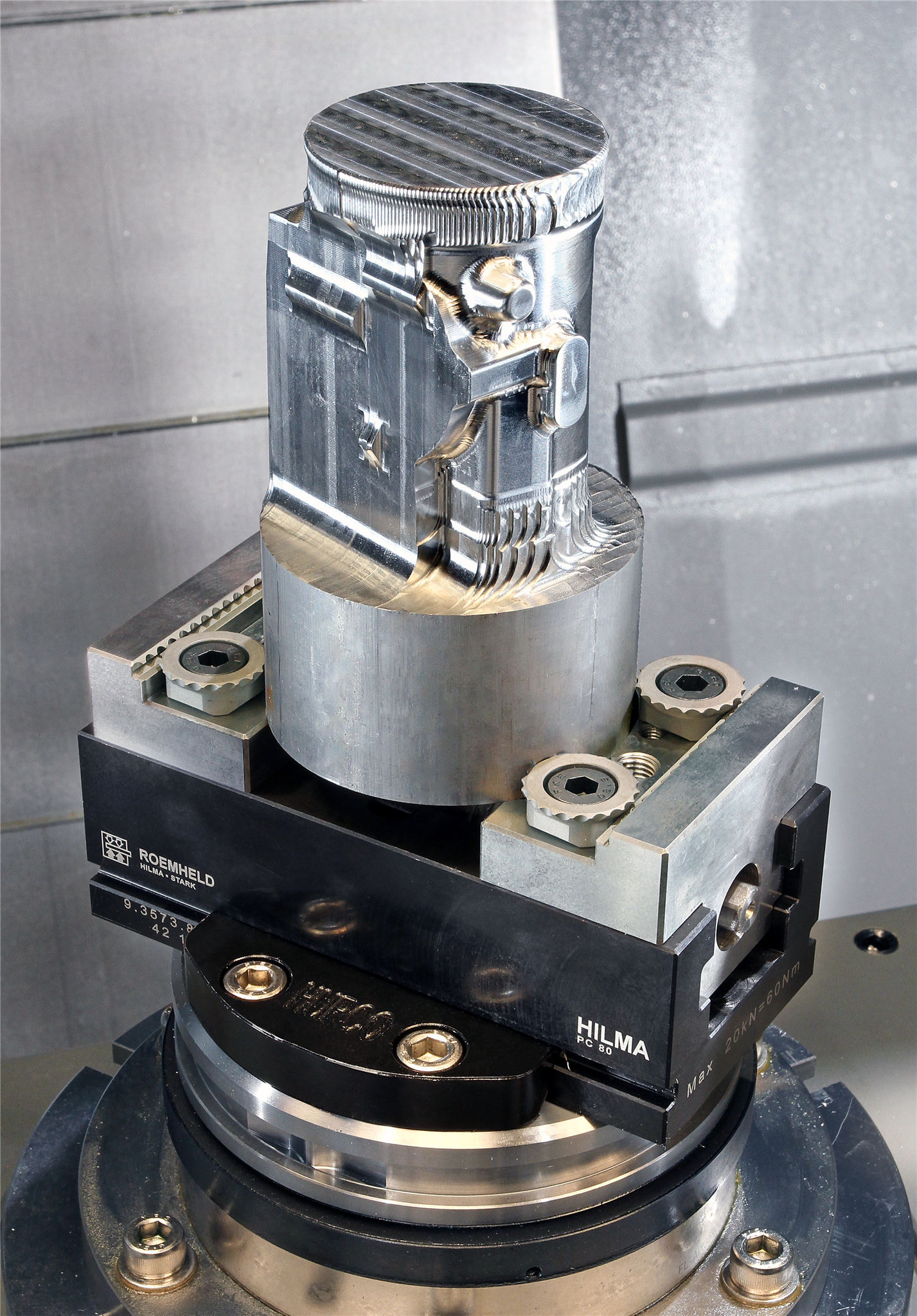

PC80Z SELF-CENTRING VICE

https://www.machinery.co.uk/machinery-products/pc80z-self-centring-vice-from-roemheld-handles-prismatic-and-round-parts

PC 80 Data sheet

ROEMHELD PC 80 5-Axis Vises

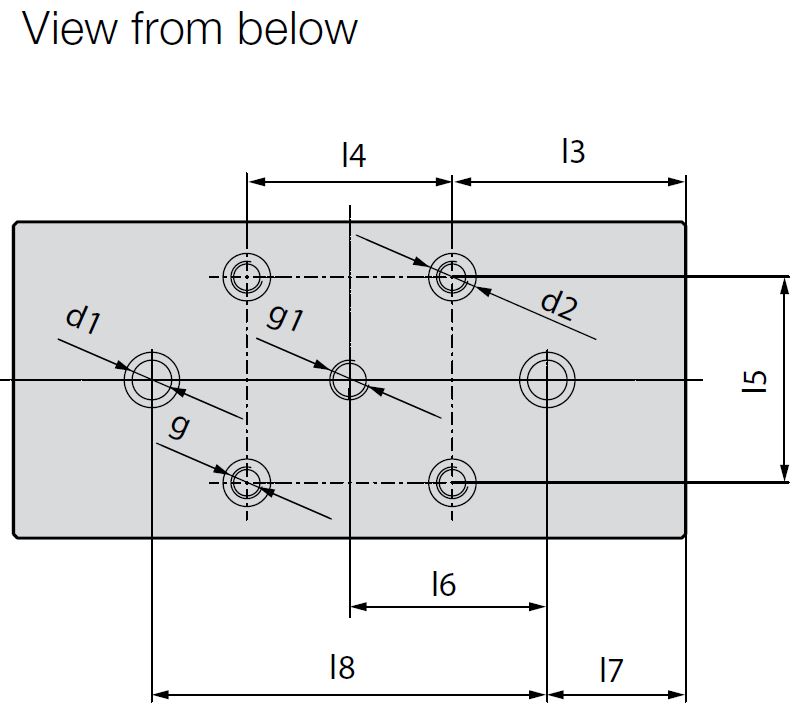

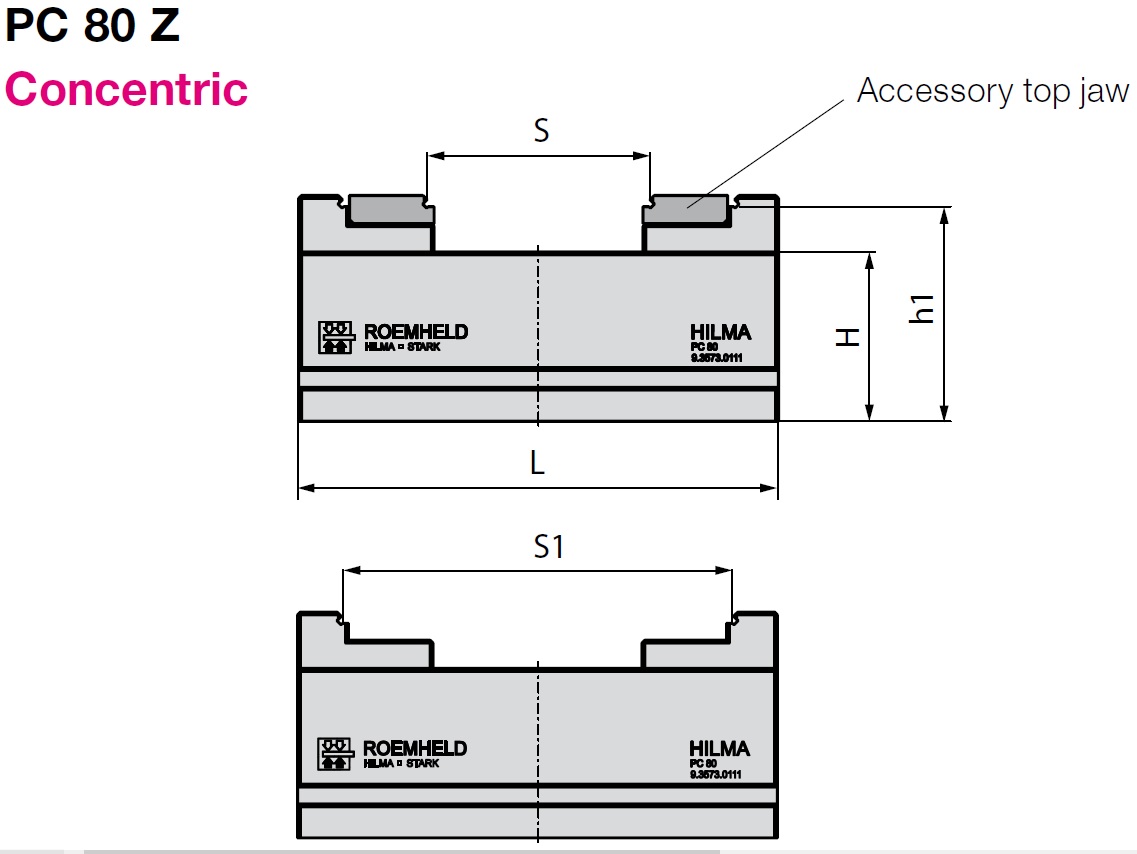

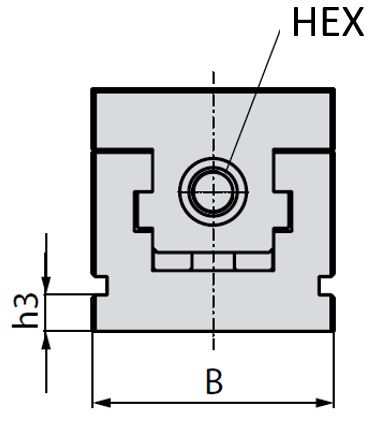

QUANTITY	PART NO.	JAW WIDTH B (mm)	CLAMPING FORCE	STROKE (mm)	L (mm)	H (mm)	S JAW OPENING (mm)	S1 JAW OPENING (mm)	HEX (mm)	d1 (mm)	d2 (mm)	h1 (mm)	h3 (mm)	I3 (mm)	I4 ±0.01 (mm)	I5 (mm)	I6 (mm)	I7 (mm)	I8 ±0.01 (mm)	g	g1	WEIGHT WITH JAWS (lbs)
	CLRH-9-3573-0311	80	4500 lbs at 44 ft-lbs (20 kN at 60 Nm)	62	170	60	17 - 79	75 - 139	12	10 F7	12 H7	76	12	59	52	52	50	35	100	M8	M10 x 11	13.2
