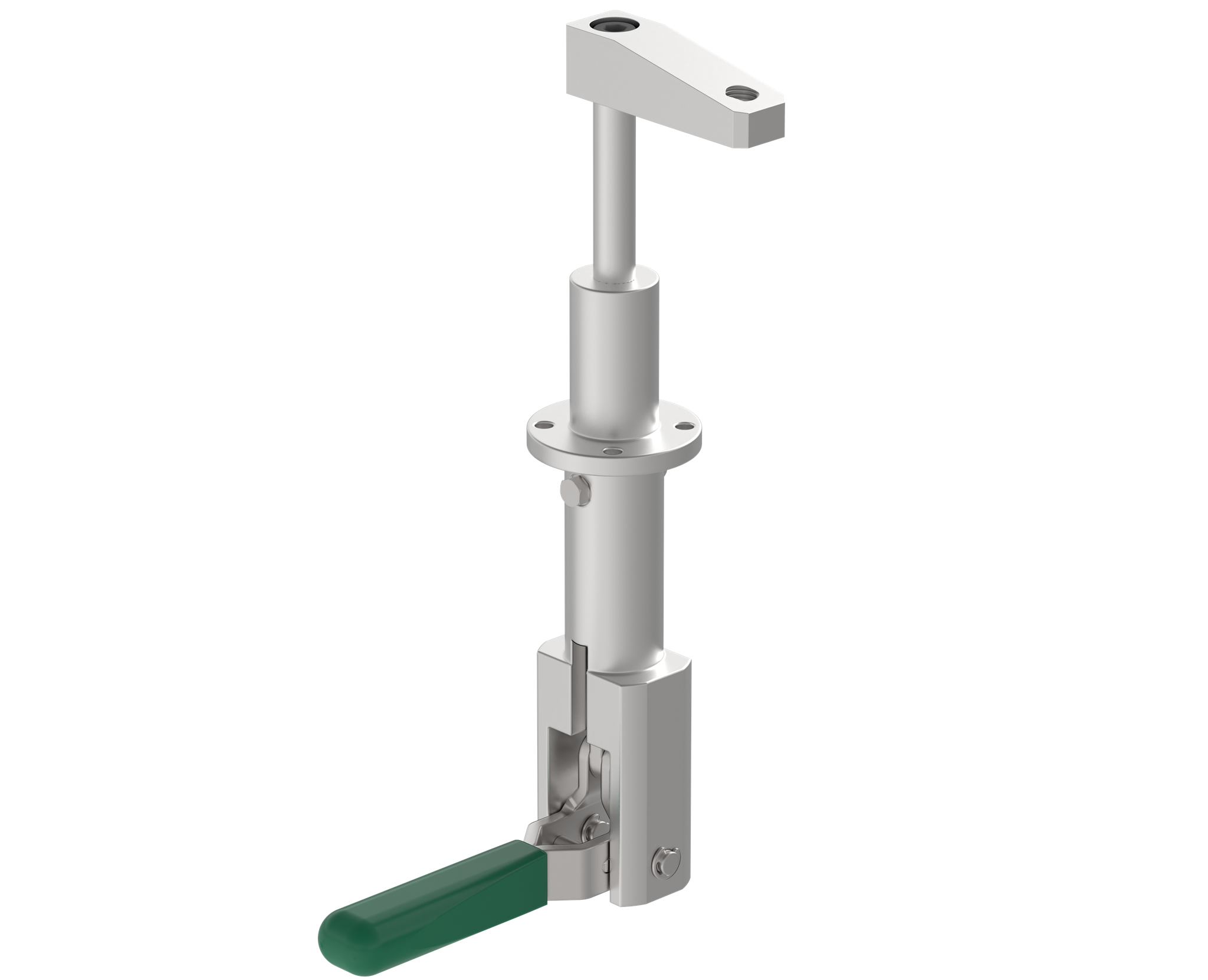

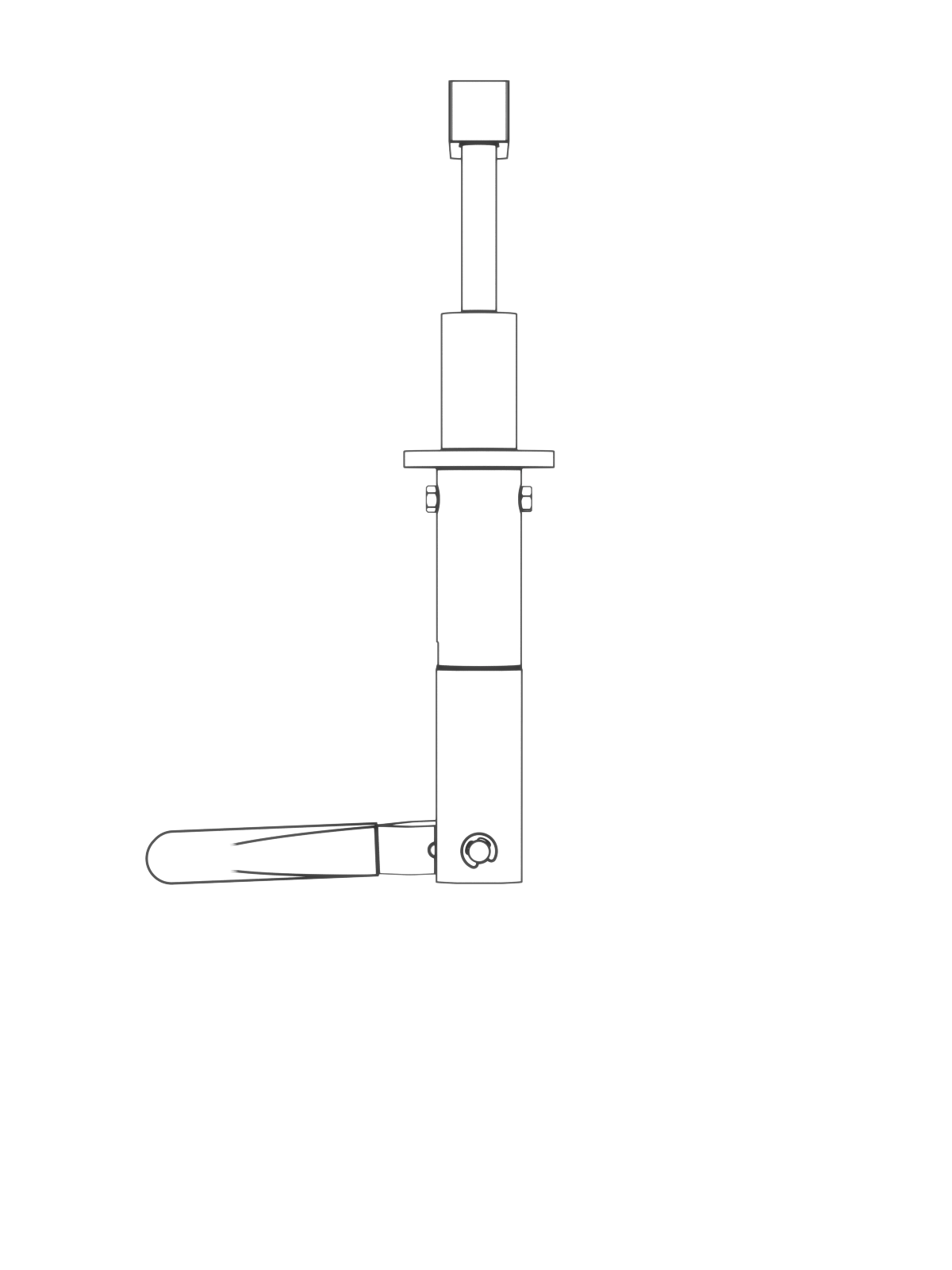

Manual Swing Clamp

Swing Clamps

Save to My Project

What is this?

Product Information

Similar to a Push-Pull Toggle Clamp, but with an innovative helical mechanism that forces the plunger to rotate 90 degrees. At the end of the 90-degree swing, the arm pulls straight down, providing maximum clamping force. Manual swing clamps can be used to replace traditional swing clamps where faster actuation is desired. A bolt on arm allows easy configuration of custom arm pieces, and no rivet construction allows the clamp to be completely disassembled and serviced.

View in Catalog Page
Contact Customer Service
Contact Customer Service

Clamping Action

Material

ITEM	MATERIAL	HEAT TREAT	FINISH
Body	303 Stainless	-	Passivated
Spindle	17-4PH Stainless	H900	Passivated
Arm	17-4PH Stainless	H900	-
Connector	1144	35-40 Rc	Zinc Plated
Handle & Link	Mild Steel	-	Zinc Plated
Handle Grip	Injection Molded Plastic	-	-

Click here for detailed material and finish specifications.

California residents click here for Prop 65 information.

Manual Swing Clamp

QUANTITY	PART NO.	STRAIGHT PULL STROKE (mm)	HOLDING CAPACITY
	CLM-450-MSC	17.5	2000 N (450 lbs)

Check Price & Availability
