Glow Wagon Brakes (800 lbs)

Toggle Clamps

Save to My Project

What is this?

Product Information

CL-250-SPC-BZ

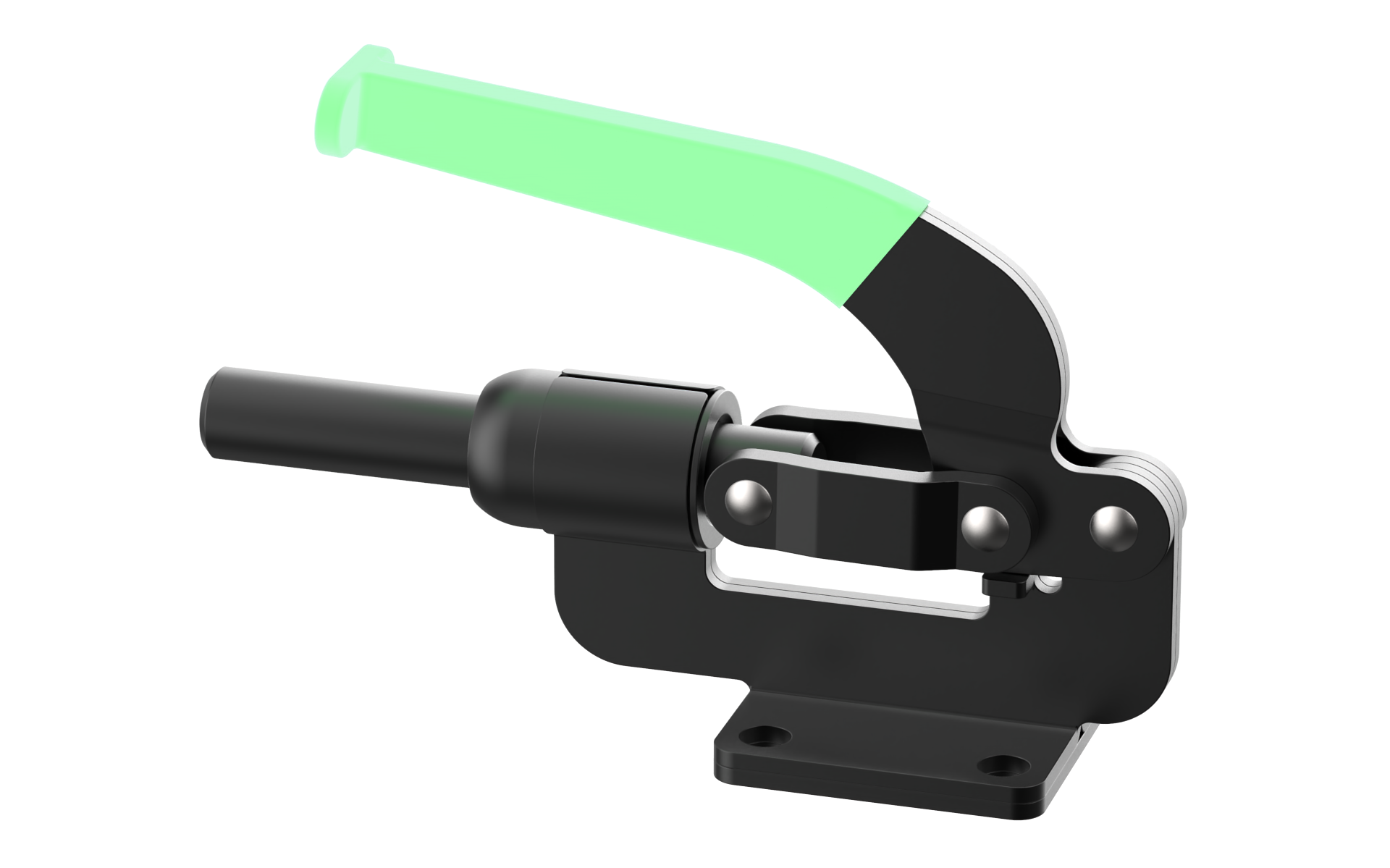

Black Zinc Finish with Glow-in-the-Dark Handle

Wagon Brakes with a black finish and glow-in-the-dark handles are specifically designed for use on stage-set designs, but can be used with other mobile jigs and carts. Wagon Brakes provide secure stabilization of your set designs, the ability to effortlessly re-arrange sets in an instant, and safety for your crew with special handles that glow in the dark for at least 8 hours. Glow-in-the-dark handles reduce the worry of trip hazards for stagehands as they work to set the scene.

Wagon Brakes literally lift your scenery off its movable casters, securing it in place and preventing any movement until you are ready to change the scene. A rugged toggle action provides the mechanical advantage to make lifting easy, and locks "over center" for safety. No drilling is ever required on your stage floor – just lock these Wagon Brakes in place to secure your stage set underneath the actors' feet.

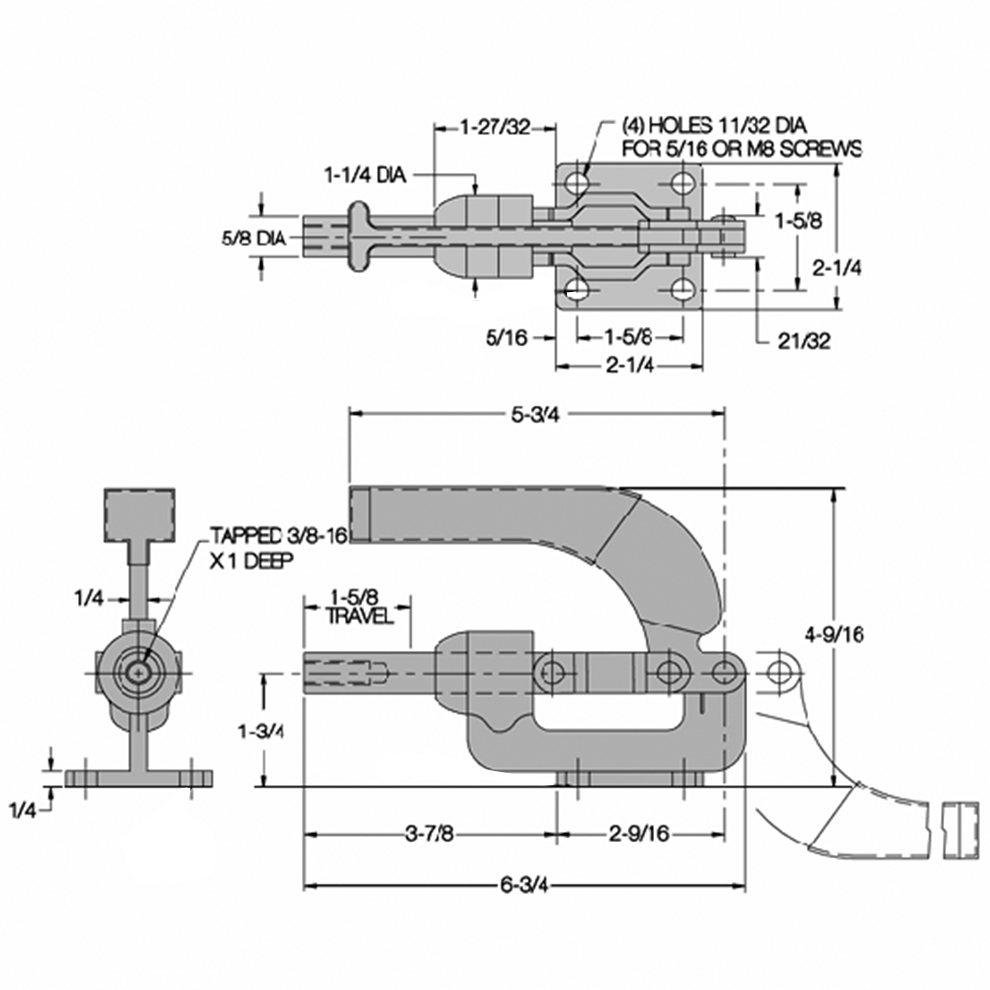

The heavy-duty plunger clamp shown here has a 1-5/8" plunger travel, and locks in extended and retracted position. The plunger is tapped to accept any 3/8-16 threaded foot. 800 lbs holding capacity.

Clamping Action

Braking Position (Locked)

Retracted Position (Locked)

Material

ITEM	MATERIAL	HEAT TREAT	FINISH	DFARS	RoHS
Clamp Body	1215, 1008, 1010, and/or 1018 steel	-	Zinc Plated Black Chromate	✔	✔
Rivets	400-Series Stainless	-	-	✔	✔
Handle	Glow-in-the-Dark Vinyl	-	-	✔	✔
