CAPTIVE JIG PIN ASSEMBLY


Status Legend:
  • !

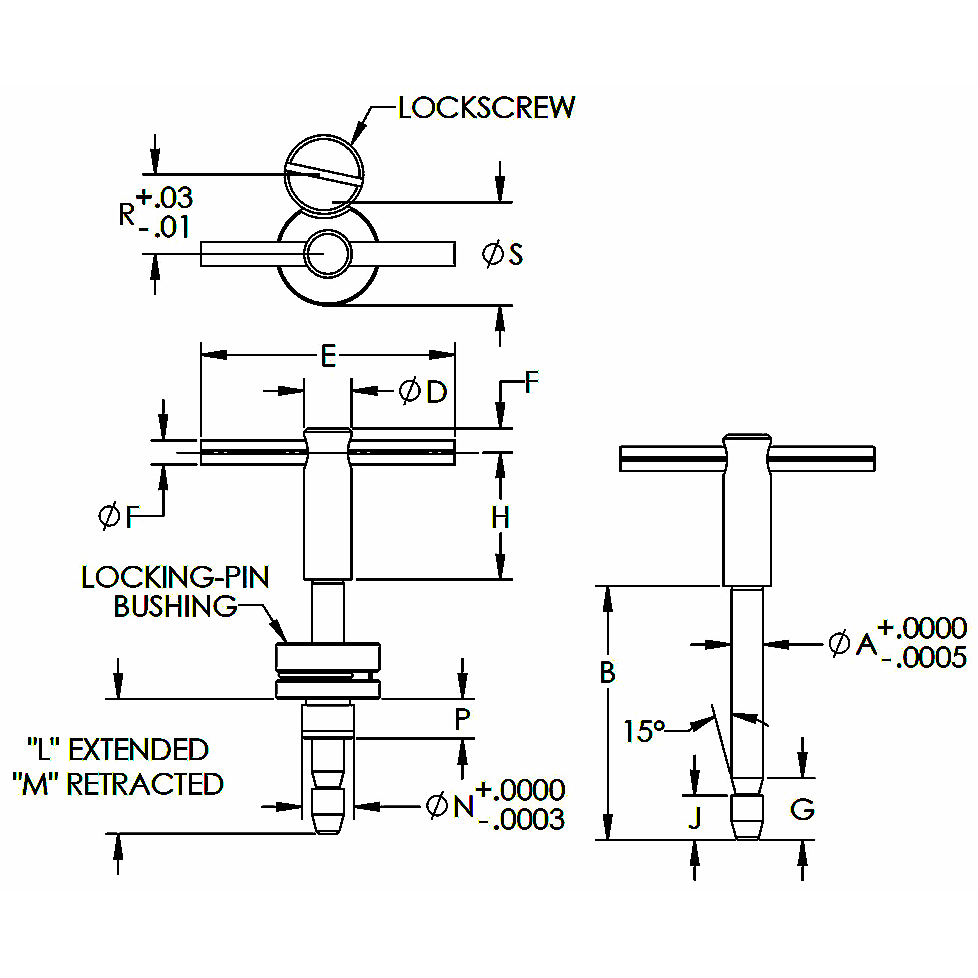

Part Specifications

Part NumberA
DIA
NOMINAL
A
DIA
ACTUAL
B
PIN
LENGTH
P
BUSHING
LENGTH
UNDER
HEAD
PD
DIA
EFLN
DIA
NOMINAL
N
DIA
ACTUAL
RS
DIA
JIG PIN
(INCLUDED)
BUSHING
(INCLUDED)
LOCKSCREW
(INCLUDED)
CL-21-CJPA1/4.24902Long.503/823/161.6013/32.4078.6213/16CL-2-CJPCL-4A-LPBLS-1

Three Dimensional (3D) View


Downloadable CAD Files

CAD
MODELS

Download CAD Model
