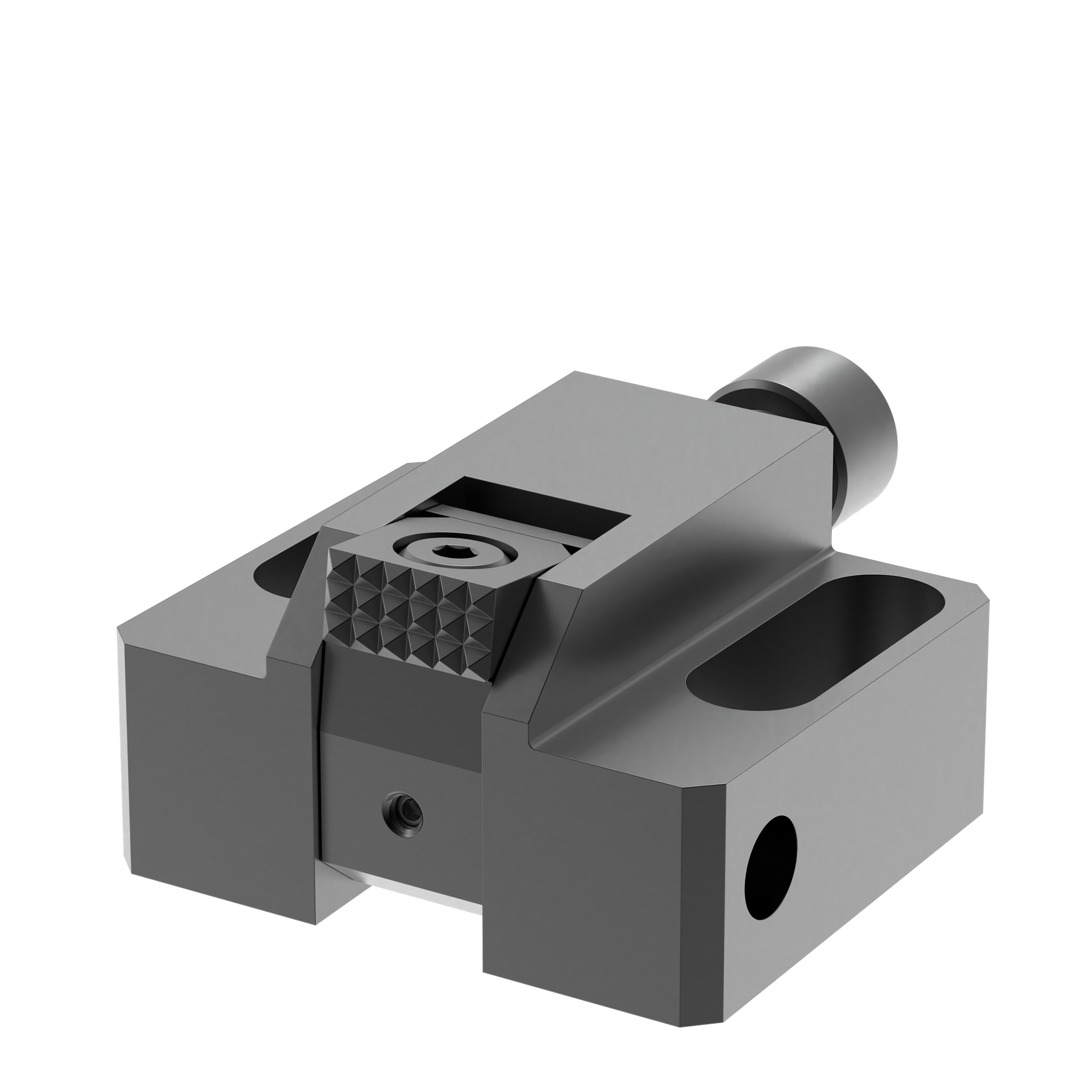

Clamps & Accessories,Jig & Fixture Bases,CL5® 5-Axis Workholding
Mechanical Version, Downward Maximum: 500 Lbs @ 36 Ft-Lbs
Hydraulic Version, Horizontal Maximum: 250 Lbs @ 7250 Psi (500 bar)
Hydraulic Version, Downward Maximum: 50 Lbs @ 7250 Psi (500 bar)
Click here for Information used to calculate the required Clamping Force in Machining Applications.
Mechanical Version, 3/8" Stroke
Hydraulic Version, 5/16" Stroke
Click here for detailed material and finish specifications.
California residents click here for Prop 65 information.
