Carr Lane Mfg. offers a wide range of industrial clamps each with exceptional holding force. We can meet all of your clamping needs with a range of dependable, precise, and versatile products. Industrial clamps from Carr Lane Mfg. are available in a variety of sizes and maximum clamping forces. These products can provide a tailored solution for any application.
Carr Lane Mfg.'s line of industrial clamps & accessories includes clamp straps, edge clamps, swing clamps, internal clamps, toggle bar clamps and portable clamps. Available accessories for Carr Lane Mfg. industrial clamps include nuts, washers, cams, studs, bolts, nuts, clamp rests, hand tools and more.
Clamping Force Calculations: This resource helps users calculate clamping force and determine the required clamping force necessary for an application.
Clamping Force of Standard Clamp Straps: This Table or calculator indicates clamping force required for specific stud sizes based on a recommended torque.
Clamping Devices Guide: Learn all about each category of industrial clamps offered by Carr Lane Mfg.
Tiny Vise® Edge Clamps securely grip the side of a workpiece to keep the top clear for machining. Patented design features a slotted countersink to provide strong, reliable clamping force with the easy turn of a hex wrench.
These compact clamps are ideal for fixturing multiple parts, small or large. They look so simple, but work amazingly well, with major advantages over earlier designs.
The clamps can be set up to apply force either at a downward angle or straight horizontally.
The Tiny Vise® is also available with a V configuration. The V-jaw version is ideal for clamping round workpieces. The 90° V jaw can also be used to clamp a rectangular workpiece from two directions with a single clamp at its corner. Tiny Vises® are also available in double-sided versions, either with or without serrations, and also in a V-jaw version.
Tiny Vise® edge clamps are also available in a modular design. This version allows adjusting the workpiece engagement point by adding or removing spaces. This is useful when using the same fixture for machining a family of parts, or when workpiece size can vary somewhat between batches.

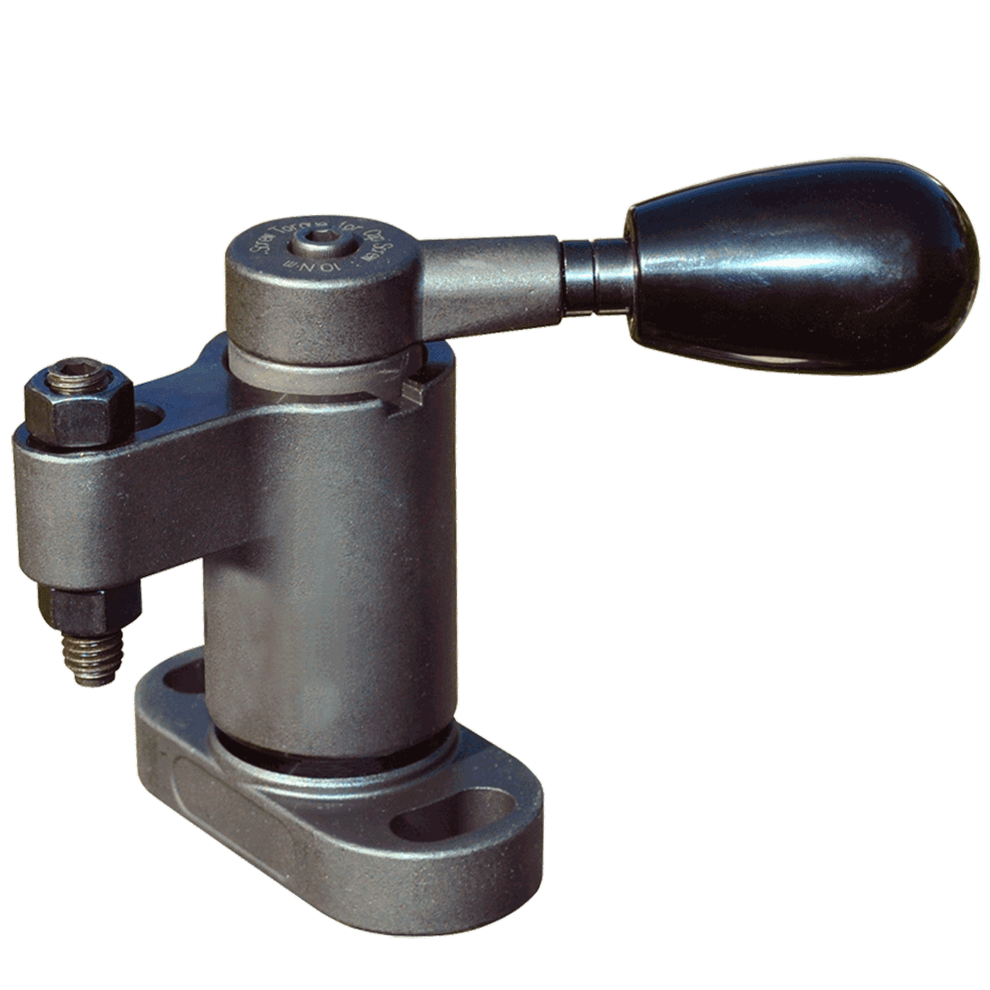

Carr Lane Mfg. Swing Clamps include standard and long arm Hook Swing Clamps, one-touch Quick-Acting Swing Clamps, Up-Thrust Clamps and Swing Clamp Assemblies. These swing arm clamps are designed to swing into clamping position, then clamp straight down.
Swing clamps are devices which use a swinging clamp arm to speed clamping and unclamping. They are made with either knob handles or ball handles in both post-mounted and flange-mounted styles.
Each variety of Carr Lane Mfg. swing clamp is available in various styles, including horizontal, vertical or hex drive cam handles, while vertical swing clamp assemblies feature knob or ball handle options. Hook clamp holders are available in two different styles, cylindrical and block styles.
Industrial clamps are utilized to help apply a desired pressure or force to Workholding applications. Additionally, clamps can be used for a variety of different applications and therefore come in a varying size, shapes, and features to best fit unique applications. Carr Lane Mfg. offers clamps and accessories perfect for any application.
